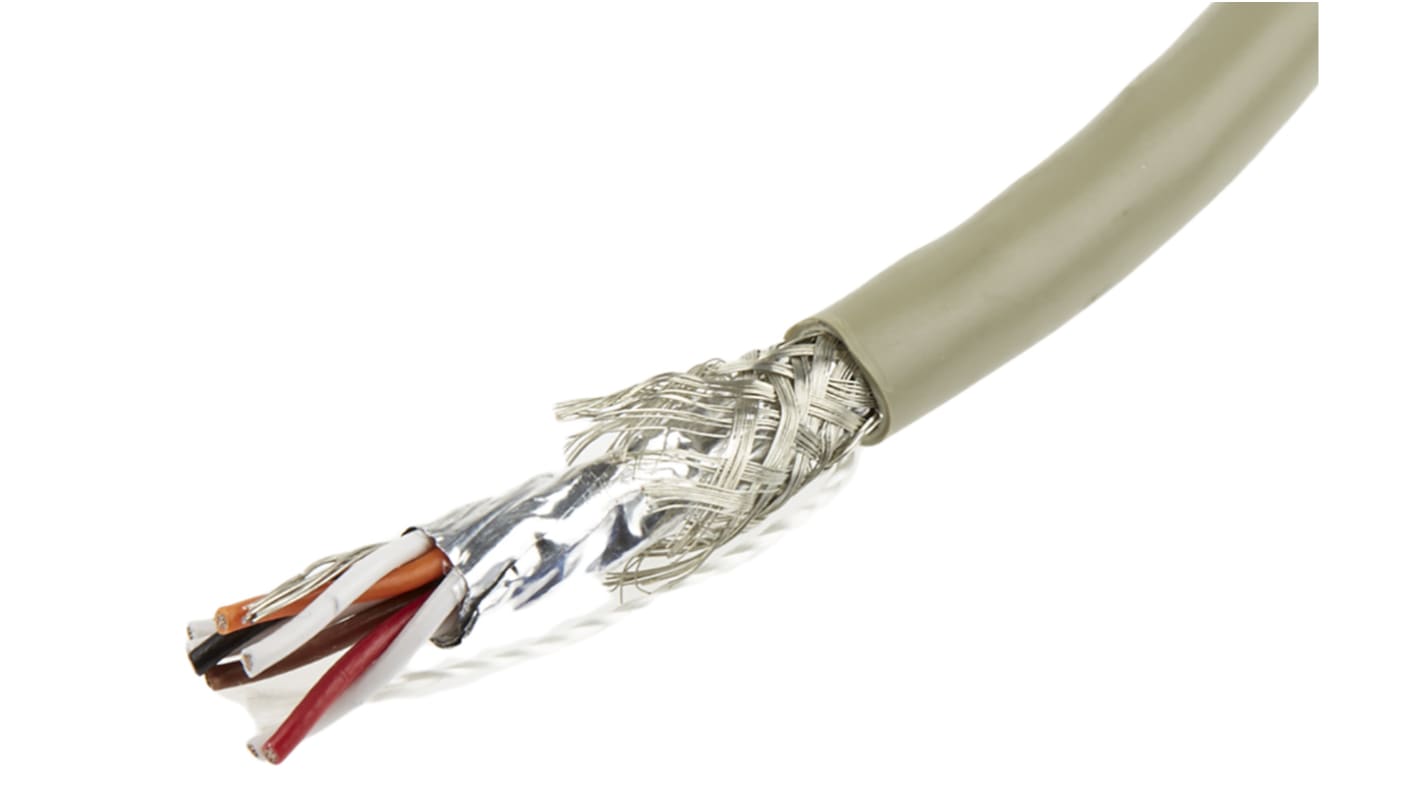

Alpha Wire ProTekt Series Data Cable, 4 Pairs, 8 Cores, 0.35 mm², Screened, 22 AWG, 50m, Foil and Braid Shield, Twisted

RS庫存編號:: 740-4976
製造零件編號:: B964044 GE321
製造商:: Alpha Wire

Alpha Wire ProTekt Series Data Cable, 4 Pairs, 8 Cores, 0.35 mm², Screened, 22 AWG, 50m, Foil and Braid Shield, Twisted

小計（1 卷，共 50 米）*

HK$1,699.80

訂單超過 HK$250.00 免費送貨

有庫存

1 件準備從其他地點送貨
加上 1 件從 2026年2月10日起發貨
加上 3 件從 2026年3月24日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

卷	每卷	每米*
1 +	HK$1,699.80	HK$33.996

* 參考價格

RS庫存編號:: 740-4976
製造零件編號:: B964044 GE321
製造商:: Alpha Wire

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Alpha Wire
	Number of Pairs	4
	Cross Sectional Area	0.35 mm²
	Number of Cores	8
	American Wire Gauge	22 AWG
	Screened/Unscreened	Screened
	Length	50m
	Shield Type	Foil and Braid
	Sheath Colour	Grey
	Cable Type	Twisted Pair
	Outer Diameter	7.47mm
	Outer Sheath Material	PVC
	Cable Shape	Twisted Pair
	Characteristic Impedance	70 Ω
	Minimum Operating Temperature	-30°C
	Fire Behaviour	Flame Retardant
	Core Strands	7/30 AWG
	Series	ProTekt
	Standards Met	CE, CSA Certified, UL
	Shielded/Unshielded	Shielded
	Maximum Operating Temperature	+105°C
	Voltage Rating	300 V

	選取全部
	品牌 Alpha Wire
	Number of Pairs 4
	Cross Sectional Area 0.35 mm²
	Number of Cores 8
	American Wire Gauge 22 AWG
	Screened/Unscreened Screened
	Length 50m
	Shield Type Foil and Braid
	Sheath Colour Grey
	Cable Type Twisted Pair
	Outer Diameter 7.47mm
	Outer Sheath Material PVC
	Cable Shape Twisted Pair
	Characteristic Impedance 70 Ω
	Minimum Operating Temperature -30°C
	Fire Behaviour Flame Retardant
	Core Strands 7/30 AWG
	Series ProTekt
	Standards Met CE, CSA Certified, UL
	Shielded/Unshielded Shielded
	Maximum Operating Temperature +105°C
	Voltage Rating 300 V

Belden Alpha Wire Data Cable, 54Lbs Maximum Pull Tension, PVC Jacket - Pro-Tekt Series - B964044 GE321

Enjoy seamless signal transmission in your industrial or commercial control system using this data cable from Belden Alpha Wire. It has eight conductors that are twisted into four pairs to minimise EMI and make sure you get clear, noiseless communication between devices. Both the outer sheath and insulation are made from PVC that resists abrasion and oils, giving long-term performance in demanding settings. This material is also UV-resistant, allowing you to install the cable outdoors without worrying about it perishing.

Features & Benefits

• Rating of 300V suits low-voltage systems
• Maximum pull tension of 58lbs, so it can withstand rough handling without breaking
• Slim outer diameter of 7.47mm for use in small enclosures

Applications

• Audio and video equipment
• Server rooms
• Data centres

What gauge is this cable?

This cable is a standard 22AWG, so it's a versatile option that's widely compatible.
