FTDI Chip UART RS232, RS422, RS485, SIE, UART 16-Pin QFN, FT230XQ-R
- RS庫存編號:
- 757-0026
- 製造零件編號:
- FT230XQ-R
- 製造商:
- FTDI Chip

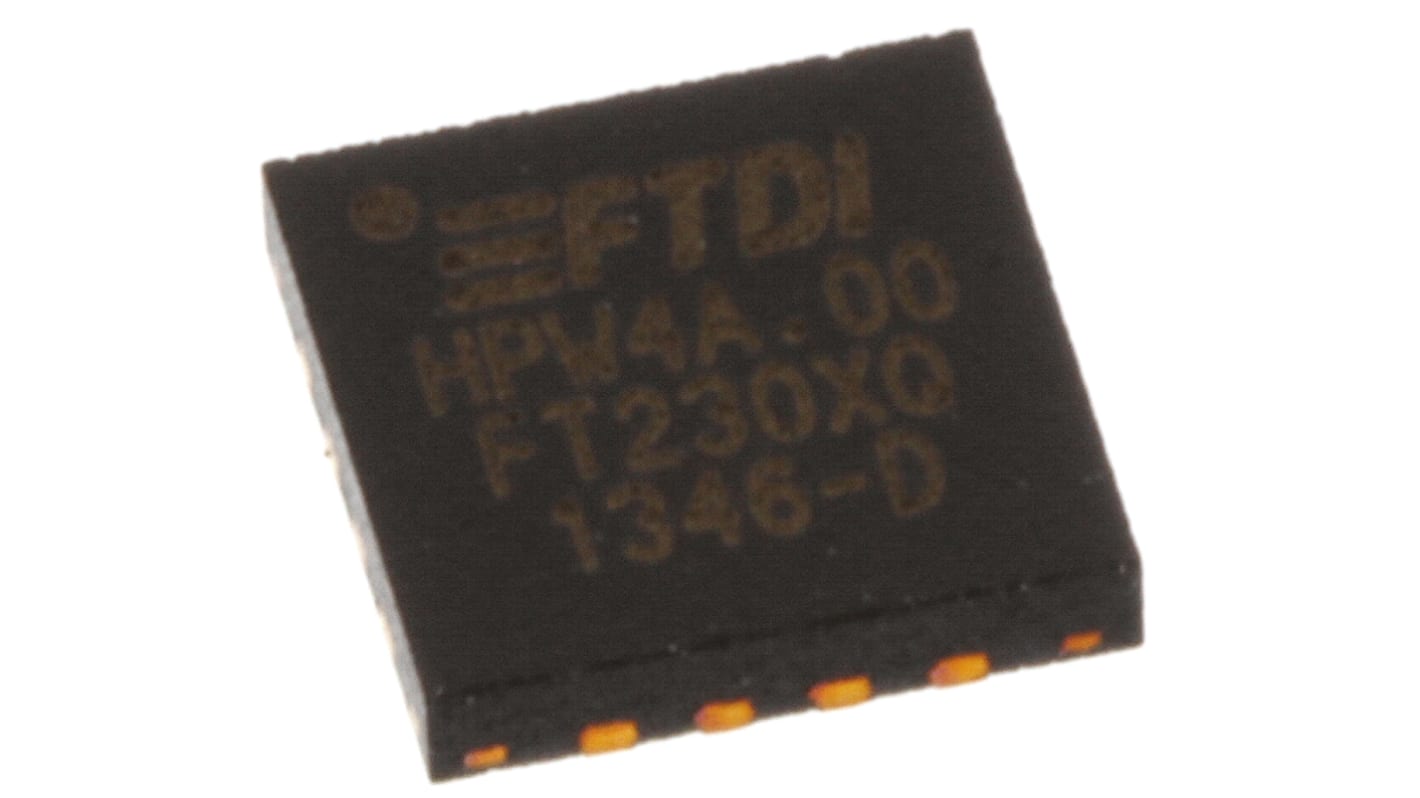

此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有UART
24 現貨庫存，可於3工作日發貨。
單價 /個 (每包:2個)
HK$20.63
| 單位 | Per unit | Per Pack* |
| 2 - 1248 | HK$20.63 | HK$41.26 |
| 1250 - 2498 | HK$20.31 | HK$40.62 |
| 2500 + | HK$19.875 | HK$39.75 |
| * 參考價格 | ||
包裝方式：
- RS庫存編號:
- 757-0026
- 製造零件編號:
- FT230XQ-R
- 製造商:
- FTDI Chip
法例與合規
產品詳細資訊
FT230X, FT231X, FT234XD - Full Speed USB to UART, FTDI Chip
The FTDI Chip FT230X and FT234XD are Ful Speed USB to basic serial UART interface devices. The FT231X is a Full Speed USB to Full Handshake UART interface.
They have a fully integrated MTP memory and an integrated clock circuit which requires no external crystal which helps to reduce external component count.
Capable of operating up to 3 MBaud, with low power consumption (8 mA), all USB to UART devices operate efficiently with USB host controllers. They use as little bandwidth as possible.
The FT230X includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over a UART interface.
They have a fully integrated MTP memory and an integrated clock circuit which requires no external crystal which helps to reduce external component count.
Capable of operating up to 3 MBaud, with low power consumption (8 mA), all USB to UART devices operate efficiently with USB host controllers. They use as little bandwidth as possible.
The FT230X includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over a UART interface.
- Fully integrated MTP memory, clock generation, AVCC filtering, Power-On Reset (POR) and LDO regulators.
- Configurable CBUS I/O Pin Options.
- Asynchronous and Synchronous Bit Bang Modes.
- Operates at between +3.3 V and +5.25 V. A nominal operational mode current of 8 mA and a nominal USB suspend mode current of 125 μA.
- Configurable CBUS I/O Pin Options.
- Asynchronous and Synchronous Bit Bang Modes.
- Operates at between +3.3 V and +5.25 V. A nominal operational mode current of 8 mA and a nominal USB suspend mode current of 125 μA.
規格
| Attribute | Value |
| Number of Channels per Chip | 1 |
| Standard Supported | RS232, RS422, RS485, SIE, UART |
| Transmit FIFO | 512B |
| Receive FIFO | 512B |
| Maximum Data Rate | 3MBd |
| Transmitter and Receiver FIFO Counter | Yes |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 16 |
| Typical Operating Supply Voltage | 5 V |
| Dimensions | 4 x 4 x 0.75mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
