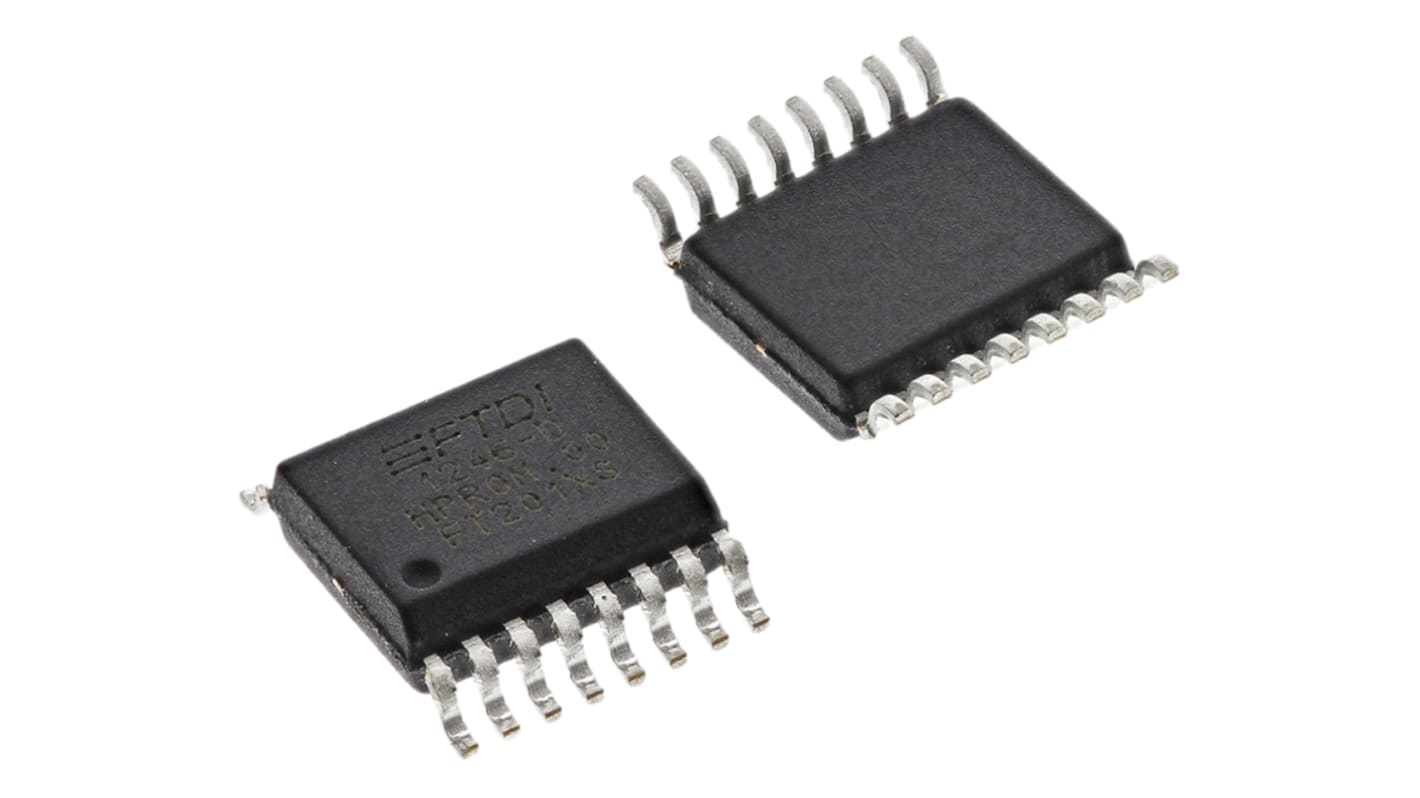

FTDI Chip 1-Channel UART SIE, UART 16-Pin SSOP
- RS庫存編號:
- 923-1593
- 製造零件編號:
- FT201XS-R
- 製造商:
- FTDI Chip
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 卷，共 3000 件）*
HK$55,227.00
添加 3000 件 件可免費送貨
暫時缺貨
- 從 2026年8月28日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* |
|---|---|---|
| 3000 - 12000 | HK$18.409 | HK$55,227.00 |
| 15000 + | HK$18.04 | HK$54,120.00 |
* 參考價格
- RS庫存編號:
- 923-1593
- 製造零件編號:
- FT201XS-R
- 製造商:
- FTDI Chip
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | FTDI Chip | |
| Number of Channels | 1 | |
| Product Type | UART | |
| Standard Supported | SIE, UART | |
| Transmit FIFO | 512bit | |
| Receive FIFO | 512bit | |
| Maximum Data Rate | 3.4Mbps | |
| Mount Type | Surface | |
| Package Type | SSOP | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 3.3V | |
| Minimum Supply Voltage | 5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Height | 1.75mm | |
| Length | 6.19mm | |
| Width | 5 mm | |
| Series | FT201X | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 FTDI Chip | ||
Number of Channels 1 | ||
Product Type UART | ||
Standard Supported SIE, UART | ||
Transmit FIFO 512bit | ||
Receive FIFO 512bit | ||
Maximum Data Rate 3.4Mbps | ||
Mount Type Surface | ||
Package Type SSOP | ||
Pin Count 16 | ||
Maximum Supply Voltage 3.3V | ||
Minimum Supply Voltage 5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Height 1.75mm | ||
Length 6.19mm | ||
Width 5 mm | ||
Series FT201X | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
FT200XD, FT201X, Full Speed USB to I²C Bridge, FTDI Chip
The FT200XD and FT201X ICs are Full Speed USB 2.0 devices that offer a compact bridge to I²C bus. The devices can acknowledge I²C bus data, capable of operating up to 3.4 Mbps, with low power consumption (8 mA). They enable USB to be added into a system design quickly and easily over an I²C interface.
