Ferrite Rings

Ferrite rings are toroidal (doughnut) shaped, or cylindrical shaped pieces of ferrite (a ceramic compound).

What do ferrite rings do?

Ferrite rings help to protect against Electromagnetic Interference) (EMI) and Radio Frequency interference (RFI). They prevent interference moving to a device or from a device

How do ferrite rings work?

Ferrite rings can suppress noise without grounding. Ferrites are able to attract magnetic flux. When a cable is passed through the ring, the magnetic fields created by the cable are concentrated within the ferrite ring. This magnetic energy is converted to heat and the ferrite dissipates this by magnetic loss.

How are ferrite rings used?

Ferrite rings can often be seen with cables threaded through them. They are common place in electronics to help with noise suppression. The cable can also be wrapped about the ferrite ring numerous times. Ferrite rings can be incorporated into broadband transformers, pulse transformers and common mode chokes.

Applications

Digital Audio systems
Computers
Sensitive electrical equipment

435 產品顯示為 Ferrite Rings

5 的 22

排序方式

比較產品詳述

每頁顯示的結果

Wurth Elektronik Ferrite Ring Axial Ferrite Bead, For: Coaxial Cable, Multiconductor Wire, Wires, Wire-Wrapping Cable, RS庫存編號 124-1532 製造零件編號 74270090 个（每托盘 10 ） HK$23.66 數量	Wurth Elektronik	Axial Ferrite Bead	26 x 13 x 28.5mm	Coaxial Cable, Multiconductor Wire, Wires, Wire-Wrapping Cable	-	4 W 620	-	28.5mm	13mm	26mm
EPCOS Ferrite Ring Toroid Core, For: Automotive Electronics, EMC Components, General Electronics, 17.2 x 8.5 x 7.3mm RS庫存編號 125-3311 製造零件編號 B64290L0045X038 个（每托盘 25 ） HK$5.016 數量	EPCOS	Toroid Core	17.2 x 8.5 x 7.3mm	Automotive Electronics, EMC Components, General Electronics	-	T38	-	7.3mm	8.5mm	17.2mm

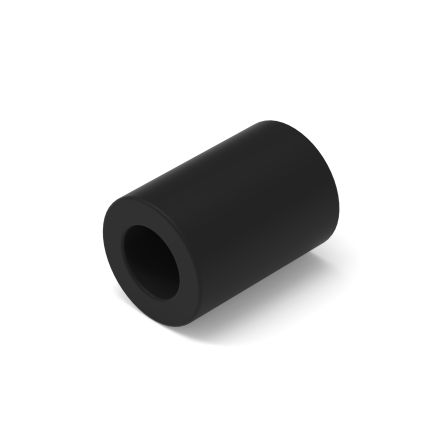

Wurth Elektronik Ferrite Bead EMI Suppression Axial Ferrite Bead, For: EMI Suppression, 9.5 x 4.8 x 9.5mm RS庫存編號 332-487 製造零件編號 74277233 个 (以毎袋：5) HK$10.94 數量	Wurth Elektronik	EMI Suppression Axial Ferrite Bead	9.5 x 4.8 x 9.5mm	EMI Suppression	38 O, 46 O	8W5000	4.8mm	-	-	-
Wurth Elektronik Ferrite Bead EMI Suppression Axial Ferrite Bead, 12 x 3.55 x 25mm RS庫存編號 332-459 製造零件編號 74270038 个 (以毎袋：5) HK$4.318 數量	Wurth Elektronik	EMI Suppression Axial Ferrite Bead	12 x 3.55 x 25mm	-	228 O, 297 O	4 W 1500	3.55mm	-	-	-
EPCOS Ferrite Ring Ferrite Core, 13.6 (Dia.) x 5.95mm RS庫存編號 647-9890P 製造零件編號 B64290L0044X830 个 (以每袋裝提供) HK$2.86 數量	EPCOS	Ferrite Core	13.6 (Dia.) x 5.95mm	-	-	N30	13.6mm	5.95mm	6.5mm	13.6mm
Wurth Elektronik Ferrite Sleeve EMI Suppression Axial Ferrite Bead, 14 x 6.3 x 28.5mm RS庫存編號 332-409 製造零件編號 782013059285 个（每套 64） HK$16.496 數量	Wurth Elektronik	EMI Suppression Axial Ferrite Bead	14 x 6.3 x 28.5mm	-	195 O, 270 O	1E04 620	6.3mm	-	-	-
Wurth Elektronik Ferrite Ring EMI Suppression Toroidal Ferrite, For: EMI Suppression, 16.3 x 11.7 x 7.3mm RS庫存編號 332-374 製造零件編號 782115110070 个（每套 96） HK$8.248 數量	Wurth Elektronik	EMI Suppression Toroidal Ferrite	16.3 x 11.7 x 7.3mm	EMI Suppression	10.5 Ω	2E08 6021	11.7mm	-	-	-
Wurth Elektronik Ferrite Bead EMI Suppression Axial Ferrite Bead, 26 x 15.5 x 28.5mm RS庫存編號 332-153 製造零件編號 782013150285 个 (以毎袋：2) HK$39.97 數量	Wurth Elektronik	EMI Suppression Axial Ferrite Bead	26 x 15.5 x 28.5mm	-	130 O, 190 O	1E04 620	15.5mm	-	-	-
Wurth Elektronik Ferrite Ring EMI Suppression Axial Ferrite Bead, For: Coaxial Cable, Multiconductor Wire, Wires, RS庫存編號 124-1533 製造零件編號 74270095 个（每托盘 2 ） HK$35.65 數量	Wurth Elektronik	EMI Suppression Axial Ferrite Bead	28 x 18 x 28.5mm	Coaxial Cable, Multiconductor Wire, Wires, Wire-Wrapping Cable	-	4 W 1500	-	28.5mm	18mm	28mm
EPCOS Ferrite Ring Toroid Core, For: Automotive Electronics, EMC Components, General Electronics, 17.2 x 8.5 x 7.3mm RS庫存編號 170-1367 製造零件編號 B64290L0045X087 个（每带 2000 ） HK$2.646 數量	EPCOS	Toroid Core	17.2 x 8.5 x 7.3mm	Automotive Electronics, EMC Components, General Electronics	-	N87	-	7.3mm	8.5mm	17.2mm
Fair-Rite Ferrite Ring Ferrite Ring, 22.1 x 13.7 x 6.35mm RS庫存編號 255-5228 製造零件編號 5975001801 个 (以毎盒：913) HK$6.959 數量	Fair-Rite	Ferrite Ring	22.1 x 13.7 x 6.35mm	-	-	75 Material	22.1mm	-	-	-
Wurth Elektronik Ferrite Ring Ferrite Core, For: General Electronics, 17.5 x 9.5 x 28.5mm RS庫存編號 144-9781 製造零件編號 7427009 个（每套 88） HK$8.664 數量	Wurth Elektronik	Ferrite Core	17.5 x 9.5 x 28.5mm	General Electronics	-	3 W 800	-	28.5mm	9.5mm	17.5mm
EPCOS Ferrite Ring Ferrite Core, For: General Electronics, 6.3 x 3.8 x 2.5mm RS庫存編號 167-8284 製造零件編號 B64290P0037X830 个 (以毎盒：4000) HK$2.196 數量	EPCOS	Ferrite Core	6.3 x 3.8 x 2.5mm	General Electronics	-	N30	6.3mm	2.5mm	3.8mm	6.3mm
Wurth Elektronik Ferrite Bead EMI Suppression Axial Ferrite Bead, 26 x 15.5 x 28.5mm RS庫存編號 332-151 製造零件編號 782013150285 个（每套 32） HK$36.356 數量	Wurth Elektronik	EMI Suppression Axial Ferrite Bead	26 x 15.5 x 28.5mm	-	130 O, 190 O	1E04 620	15.5mm	-	-	-
Wurth Elektronik Ferrite Sleeve EMI Suppression Axial Ferrite Bead, 15.85 x 7.93 x 50.80mm RS庫存編號 332-431 製造零件編號 74270044 个（每套 30） HK$59.758 數量	Wurth Elektronik	EMI Suppression Axial Ferrite Bead	15.85 x 7.93 x 50.80mm	-	293 O, 459 O	4 W 620	7.93mm	-	-	-
Fair-Rite Ferrite Ring Ferrite Ring, 35.55 x 23 x 12.7mm RS庫存編號 255-5178 製造零件編號 5943002701 个 (以毎盒：371) HK$16.504 數量	Fair-Rite	Ferrite Ring	35.55 x 23 x 12.7mm	-	-	43 Material	35.55mm	-	-	-
Wurth Elektronik Ferrite Ring EMI Suppression Toroidal Ferrite, 61 x 13.5 x 12.7mm RS庫存編號 332-400 製造零件編號 74270198 个（每套 15） HK$52.69 數量	Wurth Elektronik	EMI Suppression Toroidal Ferrite	61 x 13.5 x 12.7mm	-	65 O, 97 O	4 W 1500	13.5mm	-	-	-
Fair-Rite Ferrite Ring Ferrite Ring, 25.4 x 15.5 x 12.7mm RS庫存編號 255-5180 製造零件編號 5943006401 个 (以毎盒：536) HK$9.457 數量	Fair-Rite	Ferrite Ring	25.4 x 15.5 x 12.7mm	-	-	43 Material	25.4mm	-	-	-
Wurth Elektronik Ferrite Ring EMI Suppression, For: Electromagnetic Interface, 3.5 x 1.2 x 3mm RS庫存編號 123-4236 製造零件編號 74270071 个（每托盘 50 ） HK$3.934 數量	Wurth Elektronik	EMI Suppression	3.5 x 1.2 x 3mm	Electromagnetic Interface	-	Ferrite, Nickel Zinc	-	3mm	1.2mm	3.5mm
Wurth Elektronik Ferrite Sleeve EMI Suppression Axial Ferrite Bead, 14 x 7.2 x 25mm RS庫存編號 332-413 製造零件編號 782013068250 个 (以毎袋：5) HK$15.014 數量	Wurth Elektronik	EMI Suppression Axial Ferrite Bead	14 x 7.2 x 25mm	-	150 O, 210 O	1E04 620	7.2mm	-	-	-
