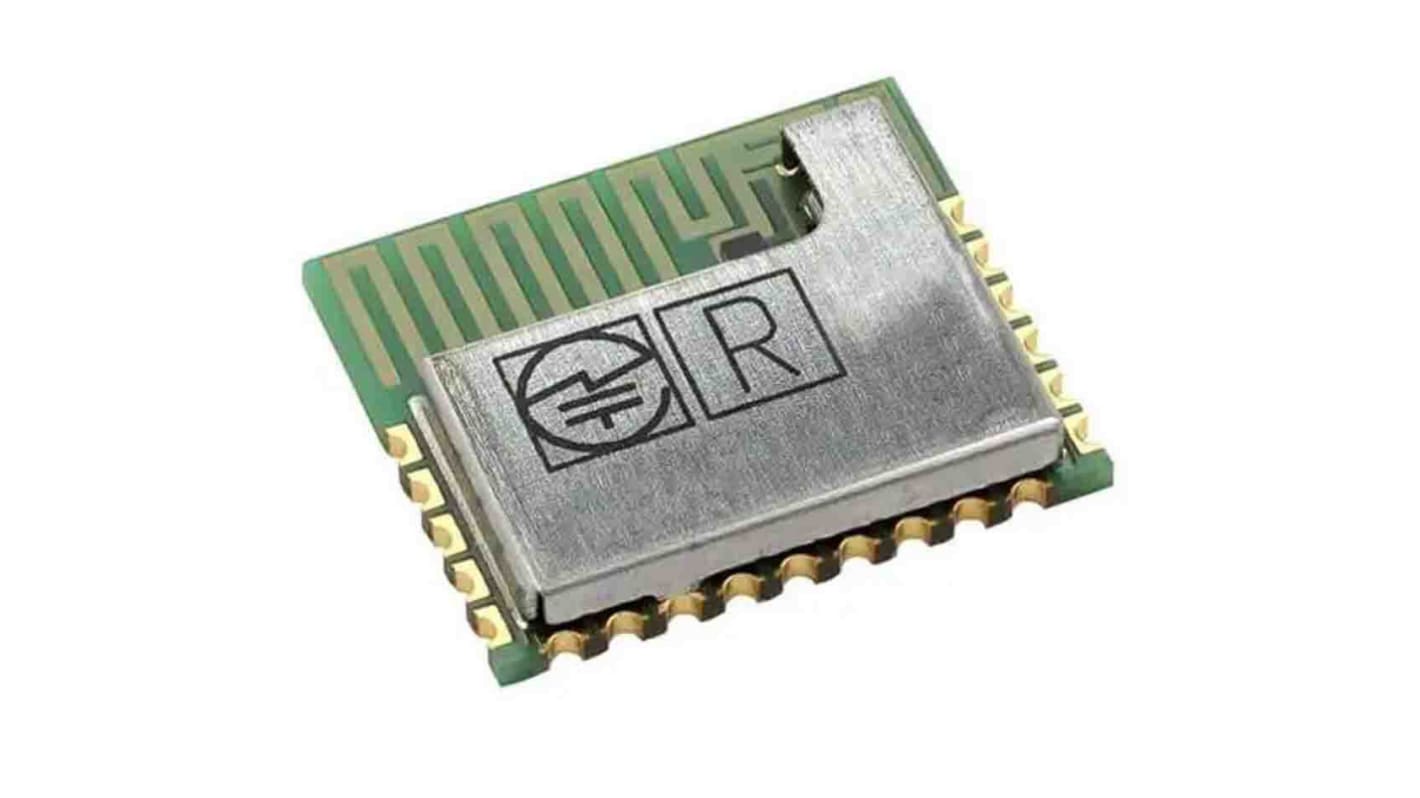

Name: STMicroelectronics BLUENRG-M2SP Bluetooth Module 5.0
Brand: STMicroelectronics
SKU: 201-4409
Price: 68.80 HKD
Availability: OutOfStock

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Product Type	Bluetooth Module
	Bluetooth Class	Class 1
	Bluetooth Version	5.0
	Maximum Output Power	8dBm
	Receiver Sensitivity	-88dBm
	Frequency	2.4GHz
	Minimum Supply Voltage	1.7V
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Length	13.5mm
	Height	2mm
	Width	11.5 mm
	Series	BlueNRG-M2
	Standards/Approvals	No

	選取全部
	品牌 STMicroelectronics
	Product Type Bluetooth Module
	Bluetooth Class Class 1
	Bluetooth Version 5.0
	Maximum Output Power 8dBm
	Receiver Sensitivity -88dBm
	Frequency 2.4GHz
	Minimum Supply Voltage 1.7V
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Length 13.5mm
	Height 2mm
	Width 11.5 mm
	Series BlueNRG-M2
	Standards/Approvals No

Datasheet - BLUENRG-M2SP

The STMicroelectronics is a very low power application processor module for Bluetooth low energy v5.0. It is complemented with Bluetooth low energy protocol stack library. It provides a complete RF application platform in a tiny form factor.

Embedded ST BlueNRG-2 BLE SoC

AES security co-processor

Bluetooth low energy SDK with a wide range of available profiles

STMicroelectronics BLUENRG-M2SP Bluetooth Module 5.0
