- RS庫存編號:
- 196-3900
- 製造零件編號:
- NRF5340-PDK
- 製造商:
- Nordic Semiconductor
- RS庫存編號:
- 196-3900
- 製造零件編號:
- NRF5340-PDK
- 製造商:
- Nordic Semiconductor
法例與合規
- COO (Country of Origin):
- NO
產品詳細資訊

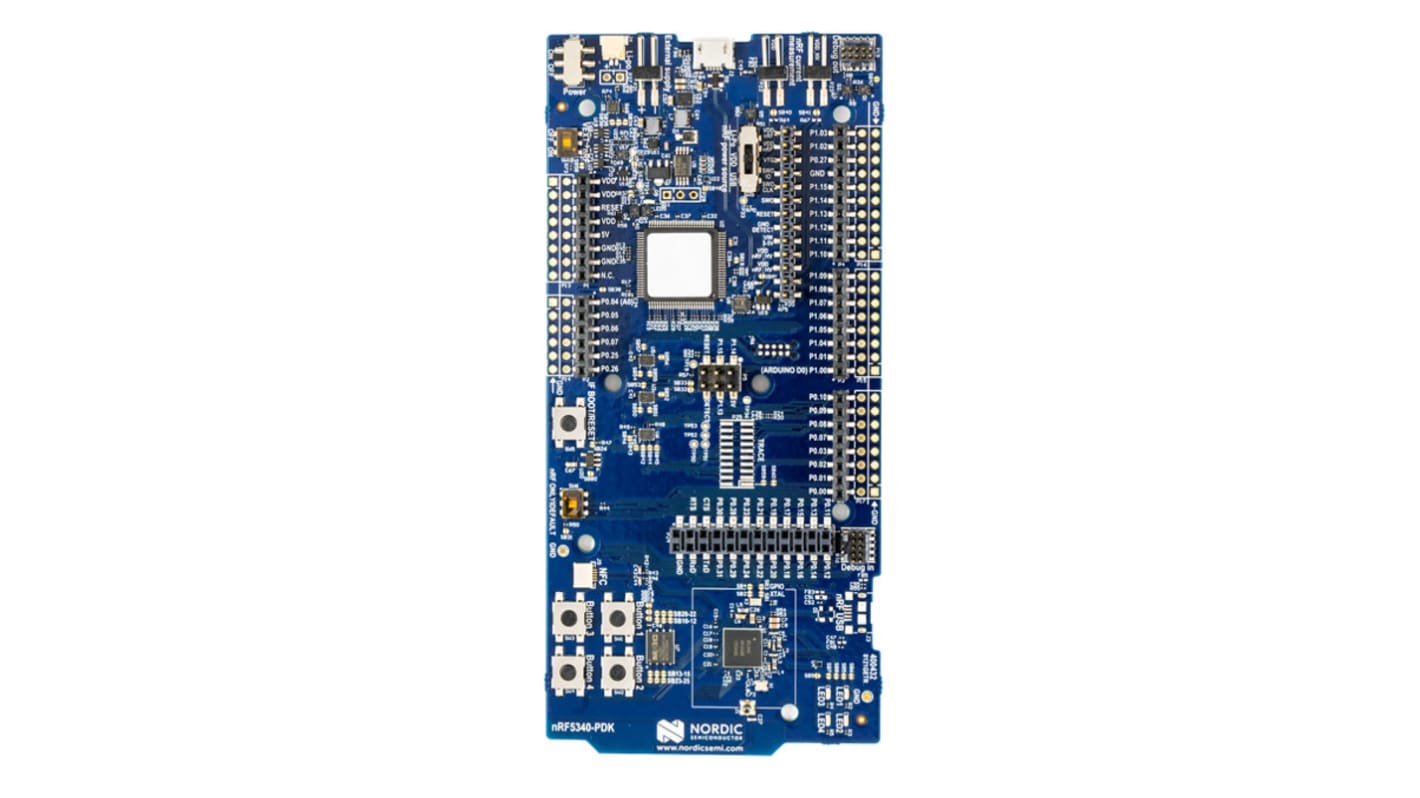

The nRF5340 PDK is the preview development kit for the nRF5340 SoC, containing everything needed to get started with development, on a single board. The PDK supports development with an extensive range of wireless protocols. It supports Bluetooth® Low Energy and all Bluetooth 5 features, including Long Range, 2 Mbps and Advertising Extensions. Mesh protocols like Bluetooth mesh, Thread and Zigbee can be run concurrently with Bluetooth LE, enabling smart phones to provision, commission, configure and control mesh nodes. NFC, ANT, 802.15.4 and 2.4 GHz proprietary protocols are also supported.
Versatile preview development kit for nRF5340 SoC
Arduino Rev3 compatible
2.4 GHz and NFC antennas
SWF RF connector for direct RF measurements
User-programmable LEDs(4) and buttons(4)
SEGGER J-Link OB programmer/debugger
Pins for measuring power consumption
1.7-5.0 V supply from USB, external, Li-Po battery or CR2032 coin cell battery
Arduino Rev3 compatible
2.4 GHz and NFC antennas
SWF RF connector for direct RF measurements
User-programmable LEDs(4) and buttons(4)
SEGGER J-Link OB programmer/debugger
Pins for measuring power consumption
1.7-5.0 V supply from USB, external, Li-Po battery or CR2032 coin cell battery
規格
Attribute | Value |
---|---|
Classification | Development Kit |
Kit Classification | Development Kit |
Featured Device | nRF5340 |
Kit Name | nRF5340 PDK Preview Development Kit |
Frequency | 2.4GHz |
