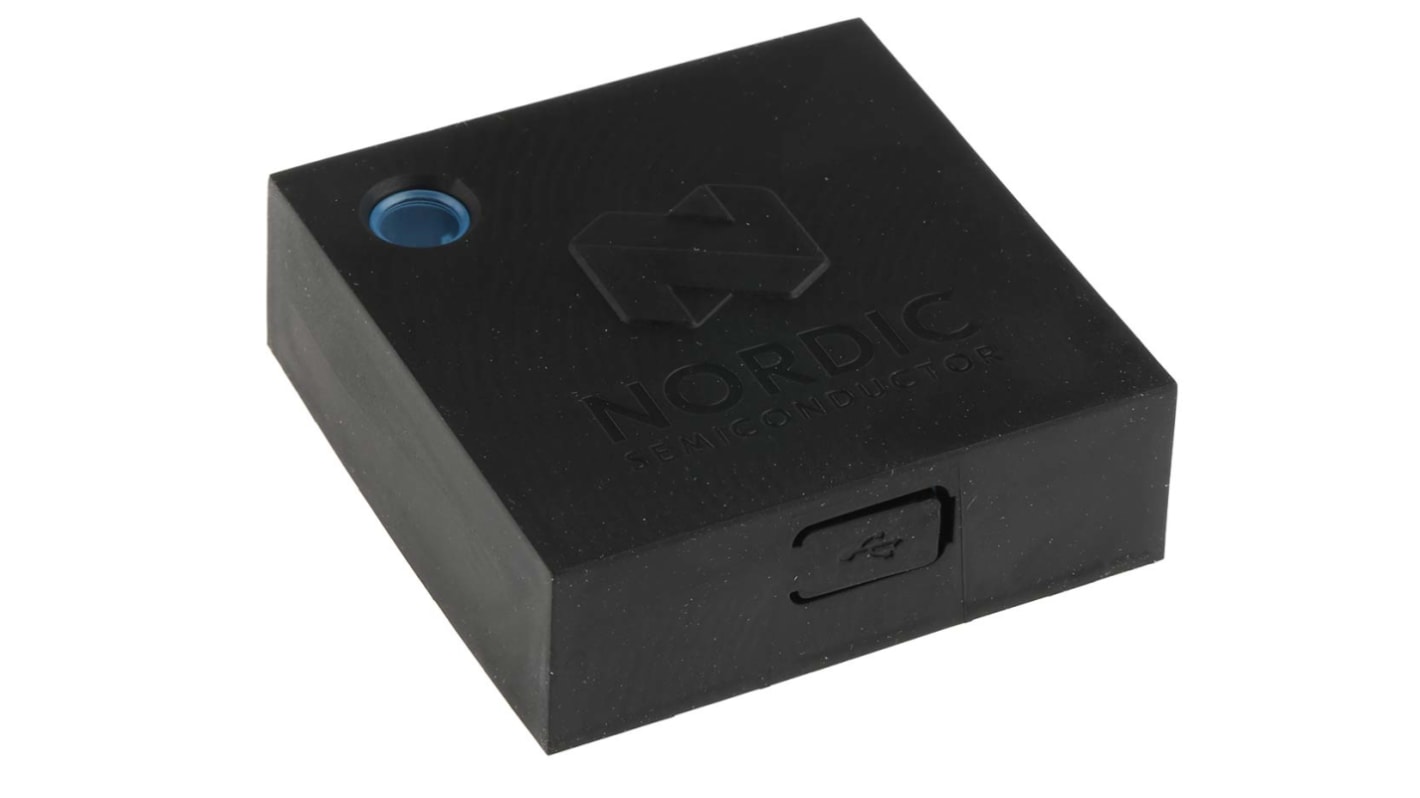

Nordic Semiconductor Nordic Thingy:52 IoT Sensor Development Kit for nRF52832
- RS庫存編號:
- 146-3540
- Distrelec 貨號:
- 304-11-887
- 製造零件編號:
- nRF6936
- 製造商:
- Nordic Semiconductor
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 146-3540
- Distrelec 貨號:
- 304-11-887
- 製造零件編號:
- nRF6936
- 製造商:
- Nordic Semiconductor
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Nordic Semiconductor | |
| Product Type | Sensor Development Tool | |
| Featured Device | nRF52832 | |
| Kit Classification | Development Kit | |
| Standards/Approvals | RoHS | |
| Kit Name | Nordic Thingy:52 IoT Sensor | |
| 選取全部 | ||
|---|---|---|
品牌 Nordic Semiconductor | ||
Product Type Sensor Development Tool | ||
Featured Device nRF52832 | ||
Kit Classification Development Kit | ||
Standards/Approvals RoHS | ||
Kit Name Nordic Thingy:52 IoT Sensor | ||
Nordic Semiconductor Prototyping Platform
The Nordic Semiconductor is an easy-to-use prototyping platform, designed to help in building prototypes and demos, without the need to build hardware or even write firmware. It is built around the nRF52832 Bluetooth 5SoC. All sensors and actuators can be configured over-the-air using Bluetooth Low Energy. It makes it possible to create demos and prototypes without starting from scratch. It connects to Bluetooth Low Energy-enabled smartphones, tablets, laptops and similar devices, and it sends/receives data from/to its sensors/actuators to an app or cloud. It includes an NFC antenna and has 1 button and 1 RGB LED that simplifies input and output. The speaker for playing pre-stored samples, tones or sound streamed over Bluetooth low energy (8-bit 8kHz LoFi). It is used to sense movement, orientation, temperature, humidity, air pressure, light, colour and air quality.
Features and Benefits
It makes it possible to create demos and prototypes without starting from scratch
It comes with the accompanying Nordic Thingy:52 app for iOS and Android and a web Bluetooth API app
It is powered with a rechargeable Li-Po battery with a capacity of 1440mAh that can be charged via USB
Flexible applications that allow full usage out of the box
Cloud connection example to IFTTT
Environment sensors (temp, humidity, pressure, air quality colour and light)
9-axis motion sensing (accelerometer, gyroscope and compass)
Microphone streaming
Secure OTA DFU for product updates
