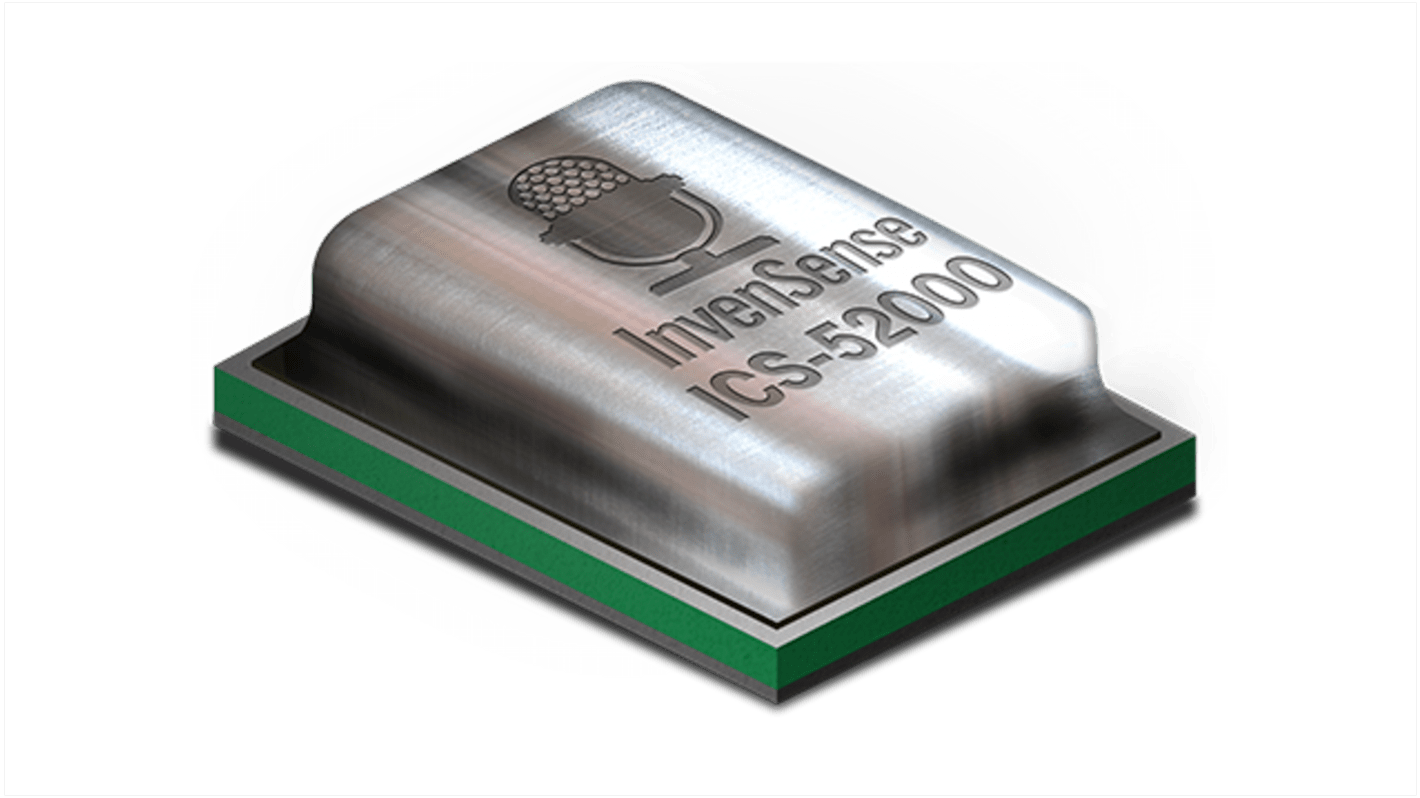

InvenSense Omni-Directional, Surface Microphone Condenser -26dB

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Condenser Microphone Components
暫時無法供應
我們不知道此物品是否會到貨，因為製造商正在對其逐步停產。
RS庫存編號:
218-2238
製造零件編號:
ICS-52000
製造商:
InvenSense
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

InvenSense

Sensitivity

-26dB

Product Type

Microphone Condenser

Directivity

Omni-Directional

Standard Operating Voltage

3.63V dc

Mount Type

Surface

Signal to Noise Ratio

65dB

Maximum Frequency

20kHz

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Series

ICS-52000

Standards/Approvals

RoHS/WEEE

Minimum Frequency

50Hz

Termination Style

Surface Mount

Supply Current

1.5mA

COO (Country of Origin):
TW
The InvenSense ICS series is a digital TDM output bottom port microphone. It consists of a MEMS sensor, signal conditioning, an analog-to digital converter, decimation and anti-aliasing filters, power management, and an industry standard 24-bit TDM interface. The TDM interface allows an array of up to 16 of the microphones to connect directly to digital processors, such as DSPs and microcontrollers, without the need for an audio codec in the system.

Wide frequency response from 50 Hz to 20 kHz

High-power supply −89 dB FS

Compatible with Sn/Pb and Pb‐Free solder processes

RoHS/WEEE Compliant
