製造零件編號

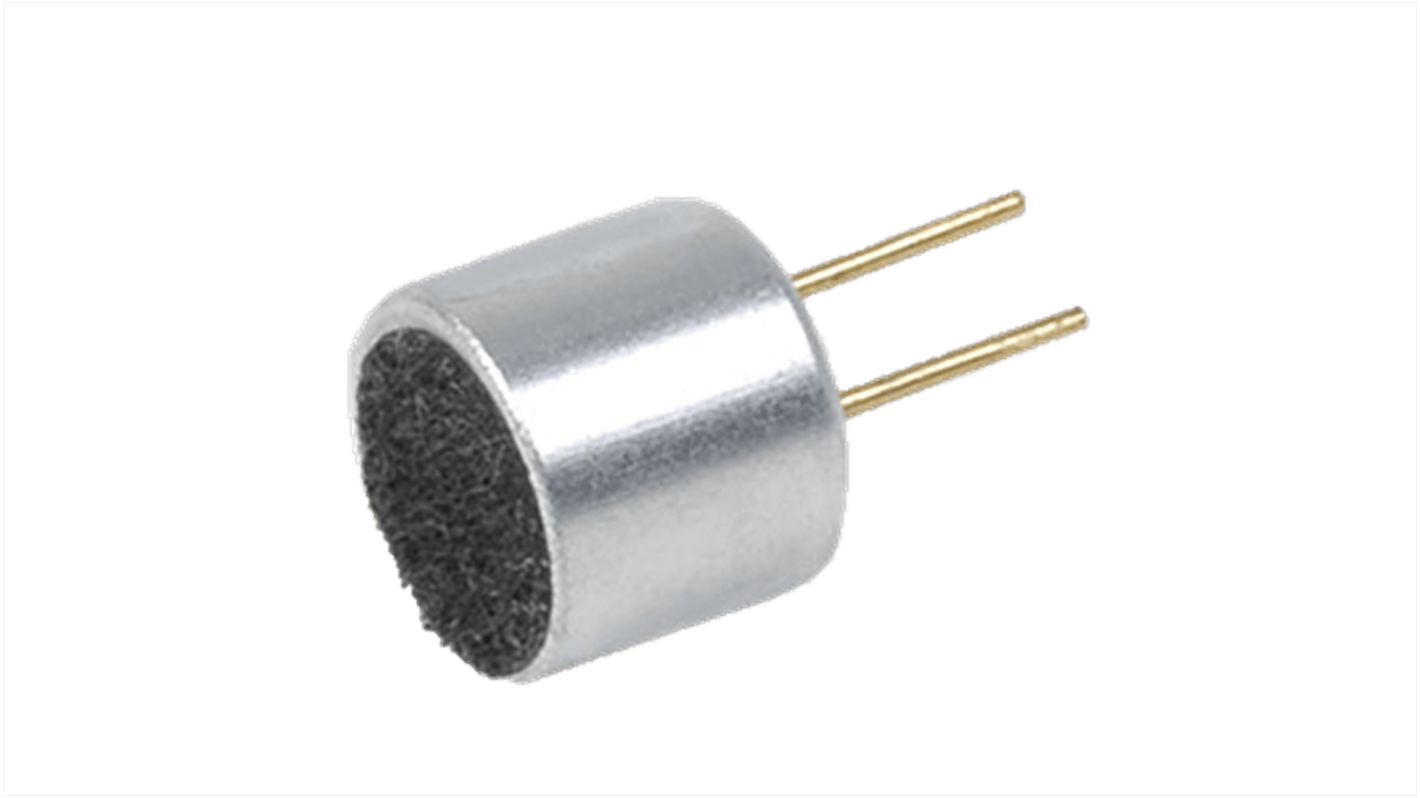

Same Sky Omni-Directional, Pin 6 mm Condenser Microphone Component -44dB

RS庫存編號:: 259-6174
製造零件編號:: CMC-5044PF-A
製造商:: Same Sky

Same Sky Omni-Directional, Pin 6 mm Condenser Microphone Component -44dB

可享批量折扣

查看批量定價選項

小計（1 盒，共 80 件）*

HK$383.04

訂單超過 HK$250.00 免費送貨

最後的 RS 庫存

最終 800 個，準備發貨

單位	每單位	每盒*
80 - 80	HK$4.788	HK$383.04
160 - 160	HK$4.549	HK$363.92
240 +	HK$4.458	HK$356.64

* 參考價格

RS庫存編號:: 259-6174
製造零件編號:: CMC-5044PF-A
製造商:: Same Sky

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Same Sky
	Sensitivity	-44dB
	Product Type	Condenser Microphone Component
	Directivity	Omni-Directional
	Standard Operating Voltage	2V dc
	Mount Type	Pin
	Output Impedance	2.2kΩ
	Signal to Noise Ratio	56dB
	Diameter	6mm
	Minimum Operating Temperature	-20°C
	Maximum Frequency	20kHz
	Maximum Operating Temperature	70°C
	Series	CMC
	Height	5mm
	Standards/Approvals	RoHS
	Minimum Frequency	100Hz
	Termination Style	Solder Pin
	Supply Current	500μA

	選取全部
	品牌 Same Sky
	Sensitivity -44dB
	Product Type Condenser Microphone Component
	Directivity Omni-Directional
	Standard Operating Voltage 2V dc
	Mount Type Pin
	Output Impedance 2.2kΩ
	Signal to Noise Ratio 56dB
	Diameter 6mm
	Minimum Operating Temperature -20°C
	Maximum Frequency 20kHz
	Maximum Operating Temperature 70°C
	Series CMC
	Height 5mm
	Standards/Approvals RoHS
	Minimum Frequency 100Hz
	Termination Style Solder Pin
	Supply Current 500μA

Datasheet - CMC-5044PF-A

COO (Country of Origin):: CN

The CUI devices condenser microphone components with an omnidirectional directivity with a mounting type of pin mount and a sensitivity of -44 dB. The rated operating voltage is 2 V.

Output impedance is 300 Ω

Material is Al
