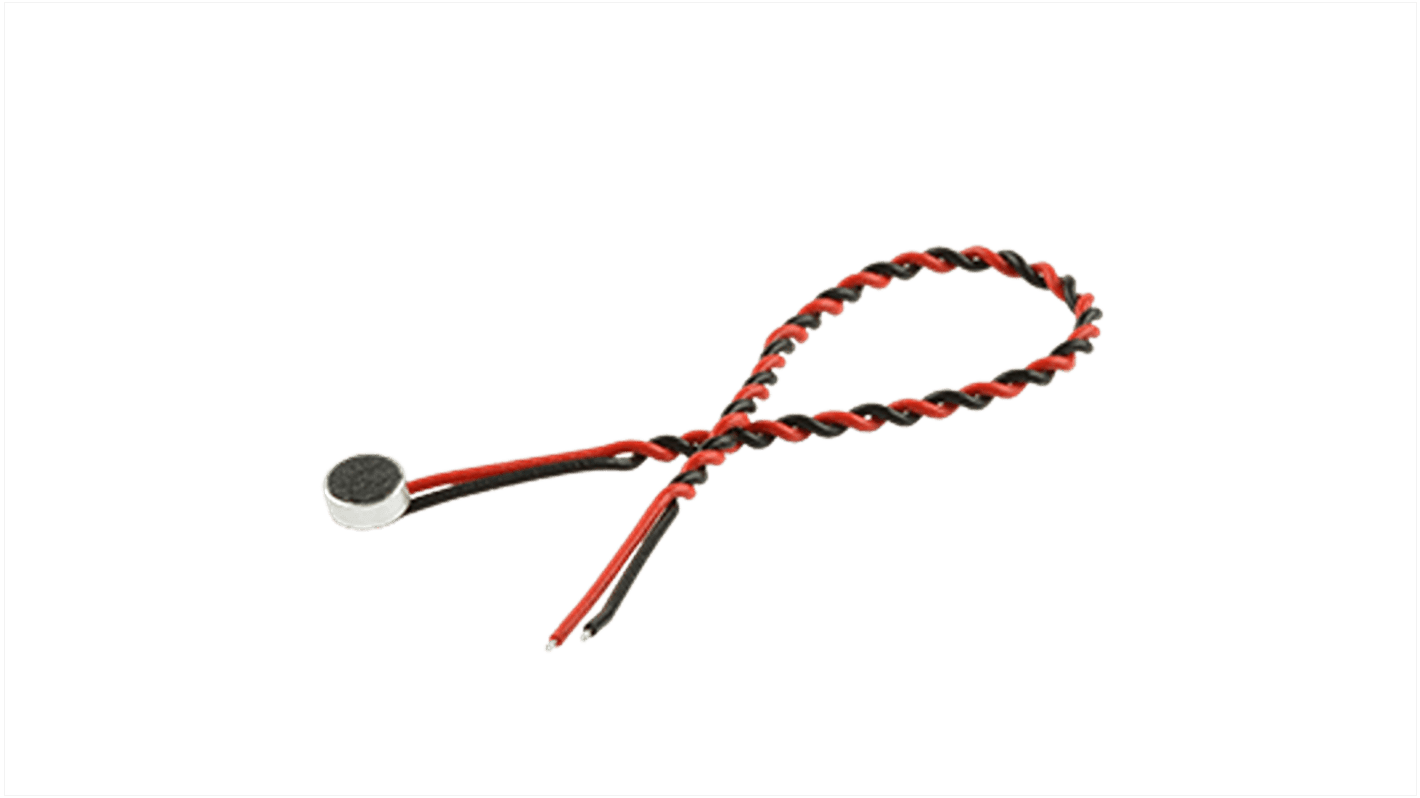

Same Sky Omni-Directional, Lead Wire 4 mm Condenser Microphone Component -25dB

RS庫存編號:: 259-6167
製造零件編號:: CMC-4015-25L100
製造商:: Same Sky

Same Sky Omni-Directional, Lead Wire 4 mm Condenser Microphone Component -25dB

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 盒，共 100 件）*

HK$1,233.90

訂單超過 HK$250.00 免費送貨

最後的 RS 庫存

最終 100 個，準備發貨

單位	每單位	每盒*
100 - 100	HK$12.339	HK$1,233.90
200 - 200	HK$12.093	HK$1,209.30
300 +	HK$11.85	HK$1,185.00

* 參考價格

RS庫存編號:: 259-6167
製造零件編號:: CMC-4015-25L100
製造商:: Same Sky

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Same Sky
	Sensitivity	-25dB
	Product Type	Condenser Microphone Component
	Directivity	Omni-Directional
	Standard Operating Voltage	3V dc
	Mount Type	Lead Wire
	Output Impedance	2.2kΩ
	Signal to Noise Ratio	62dB
	Diameter	4mm
	Maximum Frequency	20kHz
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	Height	1.5mm
	Minimum Frequency	100Hz
	Termination Style	Wire
	Standards/Approvals	RoHS
	Series	CMC
	Supply Current	0.5mA

	選取全部
	品牌 Same Sky
	Sensitivity -25dB
	Product Type Condenser Microphone Component
	Directivity Omni-Directional
	Standard Operating Voltage 3V dc
	Mount Type Lead Wire
	Output Impedance 2.2kΩ
	Signal to Noise Ratio 62dB
	Diameter 4mm
	Maximum Frequency 20kHz
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	Height 1.5mm
	Minimum Frequency 100Hz
	Termination Style Wire
	Standards/Approvals RoHS
	Series CMC
	Supply Current 0.5mA

Datasheet - CMC-4015-25L100

The CUI devices condenser microphone components with an omnidirectional directivity with a mounting type of wire leads and a sensitivity of -25 dB. The rated operating voltage is 2 V.

Output impedance is 300 Ω

Material is Al

Same Sky Omni-Directional, Lead Wire 4 mm Condenser Microphone Component -25dB
