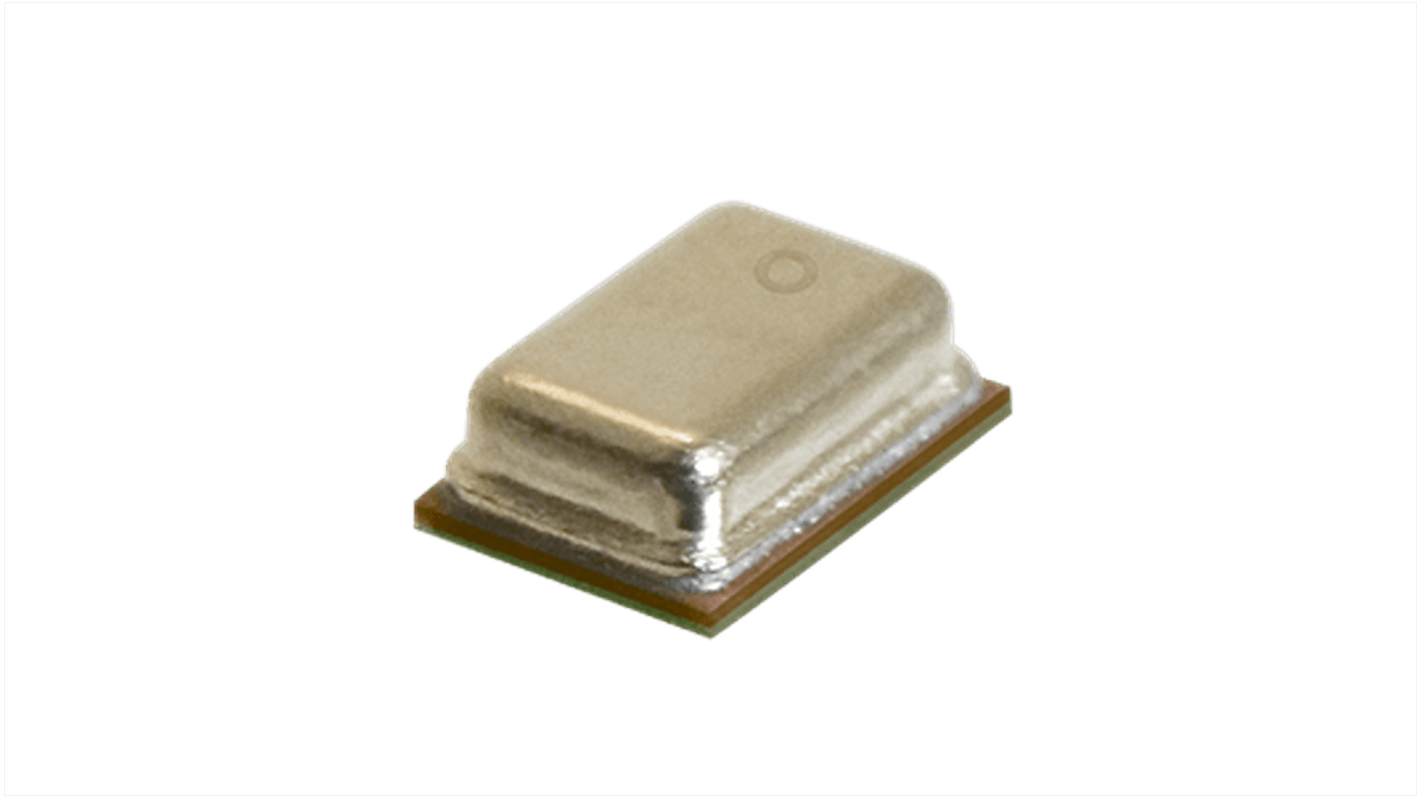

Same Sky Omni-Directional, Surface Condenser Microphone Component -38dB
- RS庫存編號:
- 259-6223
- 製造零件編號:
- CMM-2718AB-38108-TR
- 製造商:
- Same Sky
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 包，共 5 件）*
HK$53.00
訂單超過 HK$250.00 免費送貨
最後的 RS 庫存
- 最終 910 個，準備發貨
單位 | 每單位 | 每包* |
|---|---|---|
| 5 - 5 | HK$10.60 | HK$53.00 |
| 10 - 95 | HK$10.08 | HK$50.40 |
| 100 - 245 | HK$9.60 | HK$48.00 |
| 250 - 495 | HK$9.06 | HK$45.30 |
| 500 + | HK$8.64 | HK$43.20 |
* 參考價格
- RS庫存編號:
- 259-6223
- 製造零件編號:
- CMM-2718AB-38108-TR
- 製造商:
- Same Sky
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Same Sky | |
| Product Type | Condenser Microphone Component | |
| Sensitivity | -38dB | |
| Directivity | Omni-Directional | |
| Standard Operating Voltage | 2V dc | |
| Mount Type | Surface | |
| Output Impedance | 300Ω | |
| Signal to Noise Ratio | 65dB | |
| Maximum Frequency | 10kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Height | 950μm | |
| Termination Style | Surface Mount | |
| Minimum Frequency | 100Hz | |
| Series | CMM | |
| Supply Current | 80μA | |
| 選取全部 | ||
|---|---|---|
品牌 Same Sky | ||
Product Type Condenser Microphone Component | ||
Sensitivity -38dB | ||
Directivity Omni-Directional | ||
Standard Operating Voltage 2V dc | ||
Mount Type Surface | ||
Output Impedance 300Ω | ||
Signal to Noise Ratio 65dB | ||
Maximum Frequency 10kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Height 950μm | ||
Termination Style Surface Mount | ||
Minimum Frequency 100Hz | ||
Series CMM | ||
Supply Current 80μA | ||
- COO (Country of Origin):
- CN
The CUI devices condenser microphone components with an omnidirectional directivity with a mounting type of surface mount and a sensitivity of -38 dB. The rated operating voltage is 2 V.
Output impedance is 2.2 kΩ
Material is Al
