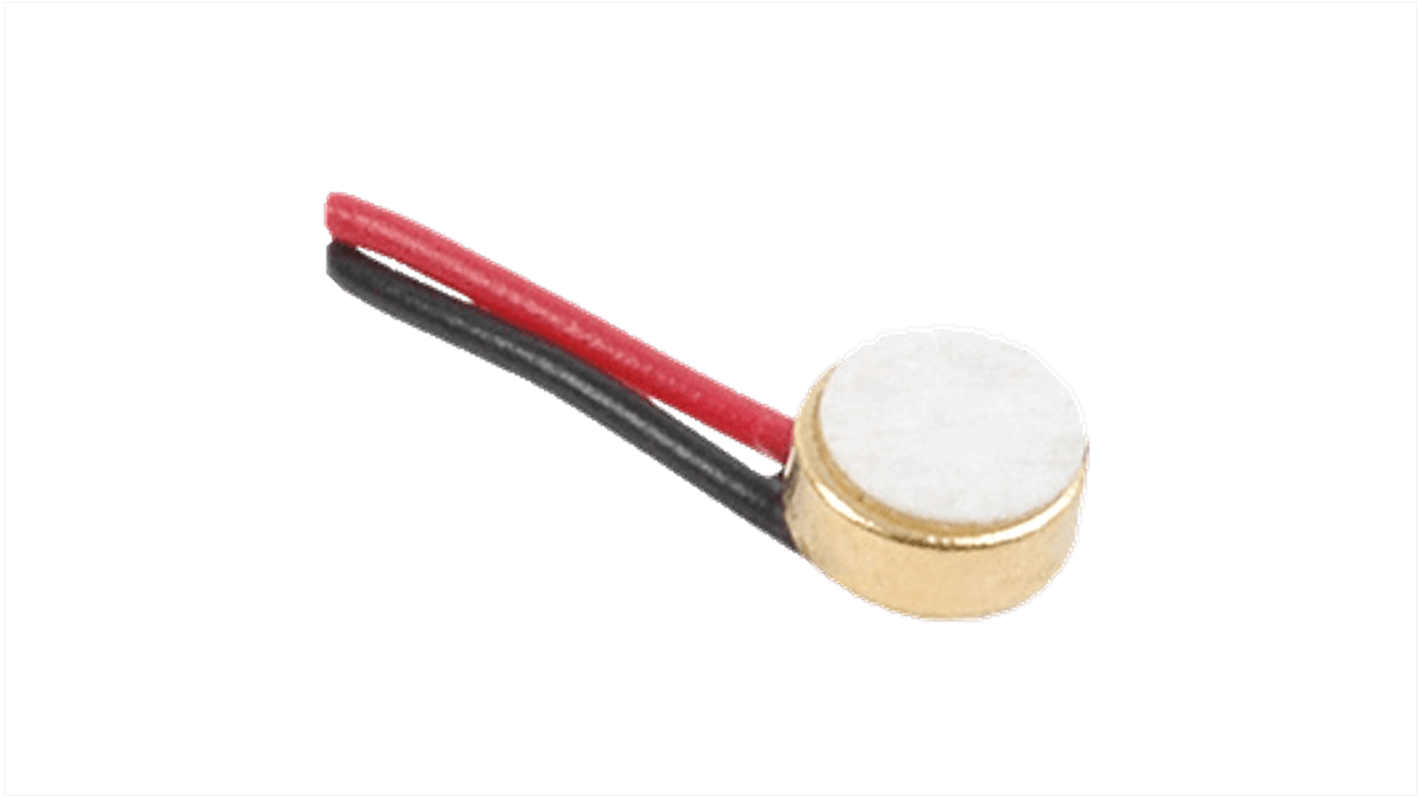

Same Sky Omni-Directional, Lead Wire 4 mm Condenser Microphone Component -38dB
- RS庫存編號:
- 259-6181
- 製造零件編號:
- CME-1538-100LB
- 製造商:
- Same Sky
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 包，共 2 件）*
HK$51.90
訂單超過 HK$250.00 免費送貨
最後的 RS 庫存
- 最終 132 個，準備發貨
單位 | 每單位 | 每包* |
|---|---|---|
| 2 - 8 | HK$25.95 | HK$51.90 |
| 10 - 18 | HK$24.65 | HK$49.30 |
| 20 - 28 | HK$23.40 | HK$46.80 |
| 30 - 38 | HK$22.25 | HK$44.50 |
| 40 + | HK$21.15 | HK$42.30 |
* 參考價格
- RS庫存編號:
- 259-6181
- 製造零件編號:
- CME-1538-100LB
- 製造商:
- Same Sky
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Same Sky | |
| Product Type | Condenser Microphone Component | |
| Sensitivity | -38dB | |
| Directivity | Omni-Directional | |
| Standard Operating Voltage | 2V dc | |
| Mount Type | Lead Wire | |
| Output Impedance | 2.2kΩ | |
| Signal to Noise Ratio | 58dB | |
| Diameter | 4mm | |
| Maximum Frequency | 20kHz | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Minimum Frequency | 100Hz | |
| Termination Style | Wire | |
| Height | 1.5mm | |
| Standards/Approvals | RoHS | |
| Series | CME | |
| Supply Current | 0.5mA | |
| 選取全部 | ||
|---|---|---|
品牌 Same Sky | ||
Product Type Condenser Microphone Component | ||
Sensitivity -38dB | ||
Directivity Omni-Directional | ||
Standard Operating Voltage 2V dc | ||
Mount Type Lead Wire | ||
Output Impedance 2.2kΩ | ||
Signal to Noise Ratio 58dB | ||
Diameter 4mm | ||
Maximum Frequency 20kHz | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Minimum Frequency 100Hz | ||
Termination Style Wire | ||
Height 1.5mm | ||
Standards/Approvals RoHS | ||
Series CME | ||
Supply Current 0.5mA | ||
The CUI devices condenser microphone components with an omnidirectional directivity with a mounting type of wire leads and a sensitivity of -38 dB. The rated operating voltage is 2 V.
Output impedance is 2.2 kΩ
Material is Al
