Same Sky Uni-Directional, Terminal 9.7 mm Condenser Microphone Component -47dB
- RS庫存編號:
- 259-6204
- 製造零件編號:
- CMI-5247TF-K
- 製造商:
- Same Sky

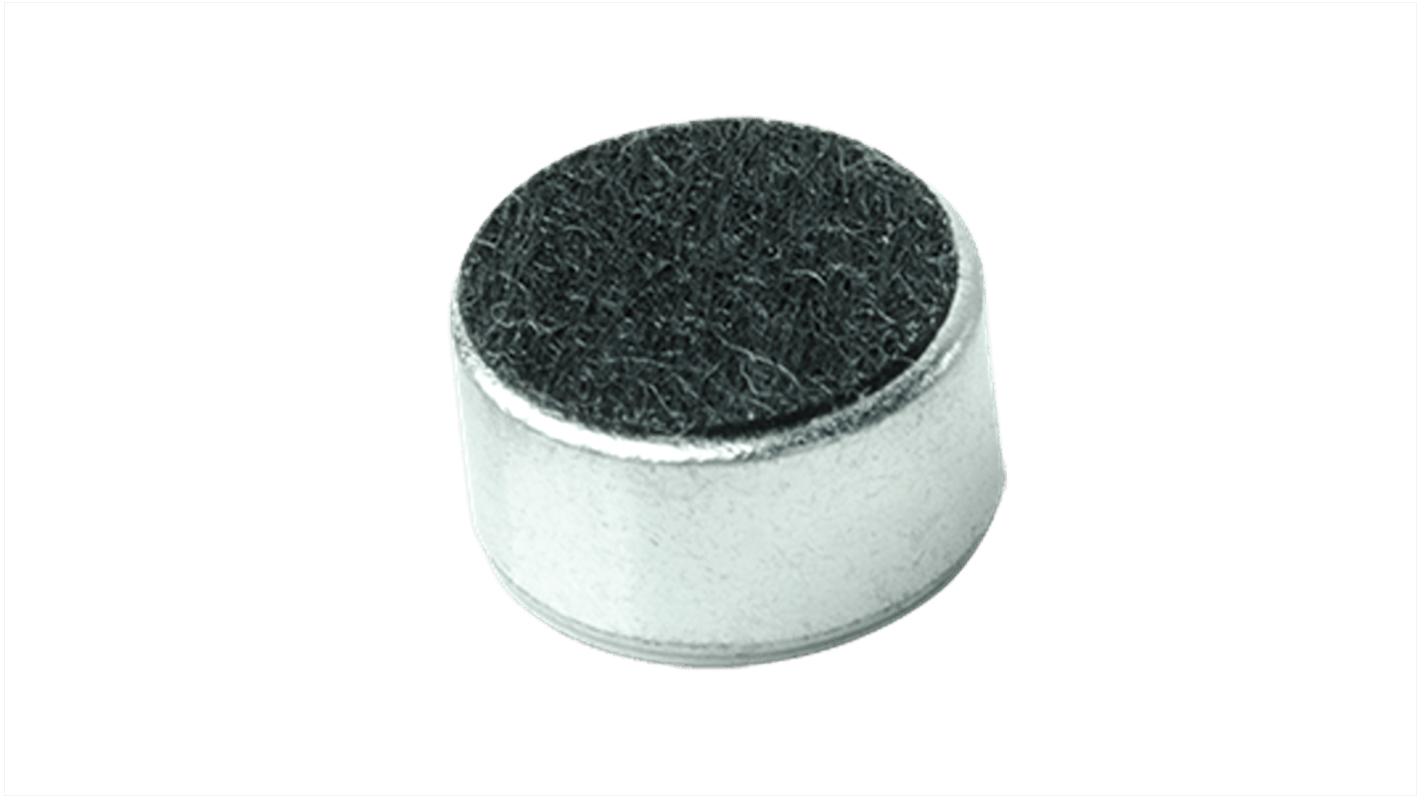

此圖片僅供參考，請參閲產品詳細資訊及規格
享受批量購買折扣
額外添加10件可節省HK$8.80
查看批量定價選項小計（1 包，共 5 件）*
HK$90.20
訂單超過 HK$250.00 免費送貨
最後的 RS 庫存
- 最終 190 個，準備發貨
單位 | 每單位 | 每包* | 節省 |
|---|---|---|---|
| 5 - 5 | HK$18.04 | HK$90.20 | - |
| 10 - 15 | HK$17.16 | HK$85.80 | HK$8.80 |
| 20 - 25 | HK$16.30 | HK$81.50 | HK$34.80 |
| 30 - 45 | HK$15.46 | HK$77.30 | HK$77.40 |
| 50 + | HK$15.18 | HK$75.90 | HK$143.00 |
* 參考價格
- RS庫存編號:
- 259-6204
- 製造零件編號:
- CMI-5247TF-K
- 製造商:
- Same Sky
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Same Sky | |
| Product Type | Condenser Microphone Component | |
| Sensitivity | -47dB | |
| Directivity | Uni-Directional | |
| Standard Operating Voltage | 1.5V dc | |
| Mount Type | Terminal | |
| Output Impedance | 0.68kΩ | |
| Signal to Noise Ratio | 60dB | |
| Diameter | 9.7mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Frequency | 10kHz | |
| Maximum Operating Temperature | 70°C | |
| Height | 5.2mm | |
| Termination Style | Solder Pad | |
| Series | CMI | |
| Minimum Frequency | 70Hz | |
| Standards/Approvals | RoHS | |
| Supply Current | 500μA | |
| 選取全部 | ||
|---|---|---|
品牌 Same Sky | ||
Product Type Condenser Microphone Component | ||
Sensitivity -47dB | ||
Directivity Uni-Directional | ||
Standard Operating Voltage 1.5V dc | ||
Mount Type Terminal | ||
Output Impedance 0.68kΩ | ||
Signal to Noise Ratio 60dB | ||
Diameter 9.7mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Frequency 10kHz | ||
Maximum Operating Temperature 70°C | ||
Height 5.2mm | ||
Termination Style Solder Pad | ||
Series CMI | ||
Minimum Frequency 70Hz | ||
Standards/Approvals RoHS | ||
Supply Current 500μA | ||
- COO (Country of Origin):
- CN
The CUI devices condenser microphone components with an unidirectional directivity with a mounting type of terminal mount and a sensitivity of -47 dB. The rated operating voltage is 2 V.
Output impedance is 2.2 kΩ
Material is Al
