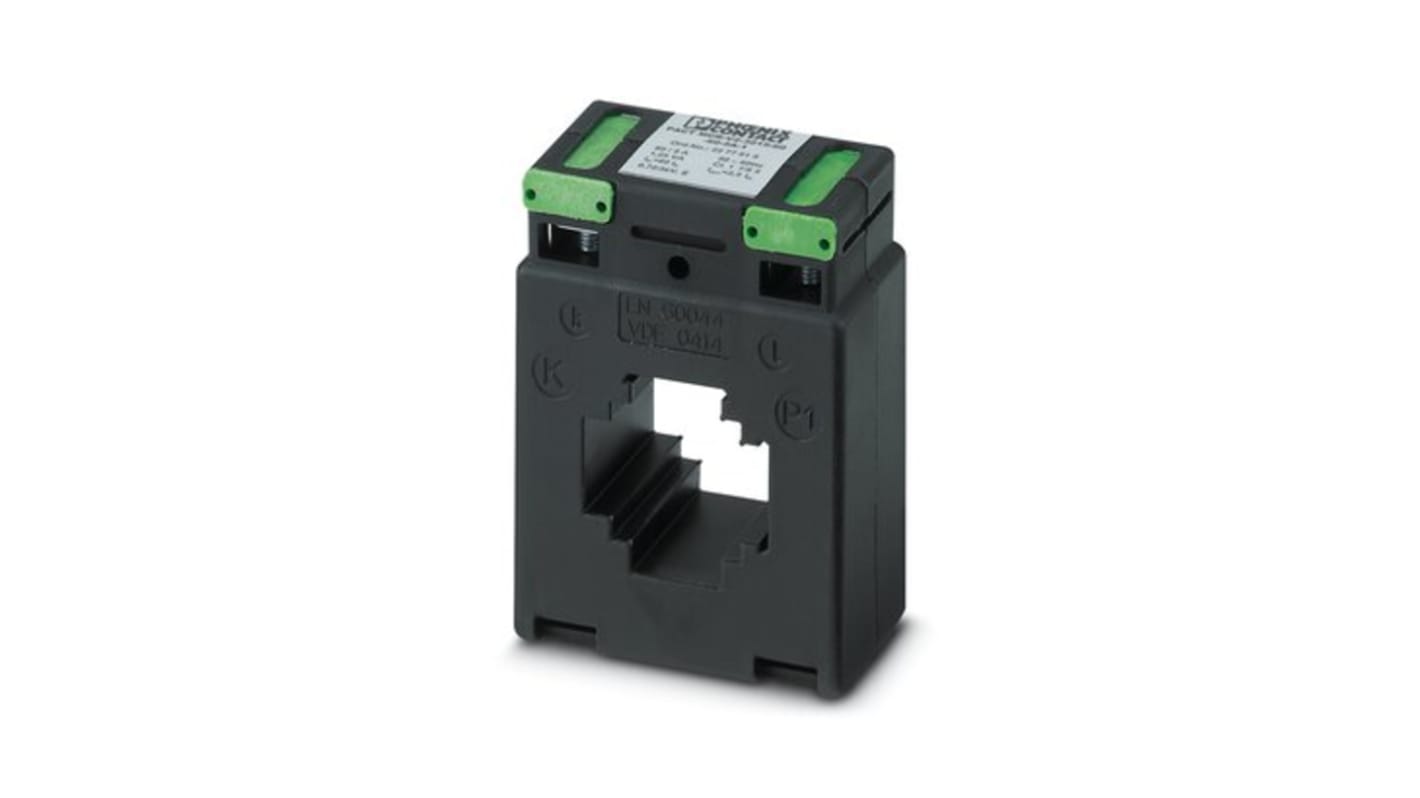

Phoenix Contact PACT MCR-V2 Series Current Transformer 2.5 kA 1.25 VA 28 mm Bore
- RS庫存編號:
- 129-604
- 製造零件編號:
- 2277815
- 製造商:
- Phoenix Contact
小計（1 件）*
HK$234.38
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 + | HK$234.38 |
* 參考價格
- RS庫存編號:
- 129-604
- 製造零件編號:
- 2277815
- 製造商:
- Phoenix Contact
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Phoenix Contact | |
| Product Type | Current Transformer | |
| Series | PACT MCR-V2 | |
| Power Rating | 1.25VA | |
| Secondary Current | 5A | |
| Primary Current | 2.5kA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 40°C | |
| Width | 31mm | |
| Weight | 293.7g | |
| Standards/Approvals | cULus, CE, CHINA RoHS, EAC, EN61869, EU RoHS, UKCA, UL | |
| Length | 82mm | |
| Depth | 60mm | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | DIN Rail, Wall | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 28mm | |
| 選取全部 | ||
|---|---|---|
品牌 Phoenix Contact | ||
Product Type Current Transformer | ||
Series PACT MCR-V2 | ||
Power Rating 1.25VA | ||
Secondary Current 5A | ||
Primary Current 2.5kA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 40°C | ||
Width 31mm | ||
Weight 293.7g | ||
Standards/Approvals cULus, CE, CHINA RoHS, EAC, EN61869, EU RoHS, UKCA, UL | ||
Length 82mm | ||
Depth 60mm | ||
Maximum Operating Frequency 60Hz | ||
Mount Type DIN Rail, Wall | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 28mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Current Transformer is designed for new installations. With a window-type design, it has a 60 A AC primary current and a 5 A AC secondary current, offering accuracy class 1 and a rated power of 1.25 VA. The compact dimensions make it suitable for various applications in energy monitoring and industrial settings.
Screw connections and flexible conductor Cross sections
Surge current limitation
Compliant with EU RoHS standards
