可享批量折扣
查看批量定價選項小計（1 件）*
HK$197.30
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$197.30 |
| 5 + | HK$162.40 |
* 參考價格
- RS庫存編號:
- 171-8827
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Current Transformer | |
| Secondary Current | 1A, 5A | |
| Terminal Type | Wire | |
| Primary Current | 160A | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | IEC 60044-1, IEC 61869-1, UL94V-0, IEC 61010-2 | |
| Width | 105mm | |
| Depth | 38mm | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | Surface Mount | |
| Minimum Operating Frequency | 50Hz | |
| Bore Diameter | 35mm | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Current Transformer | ||
Secondary Current 1A, 5A | ||
Terminal Type Wire | ||
Primary Current 160A | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals IEC 60044-1, IEC 61869-1, UL94V-0, IEC 61010-2 | ||
Width 105mm | ||
Depth 38mm | ||
Maximum Operating Frequency 60Hz | ||
Mount Type Surface Mount | ||
Minimum Operating Frequency 50Hz | ||
Bore Diameter 35mm | ||
- COO (Country of Origin):
- CN

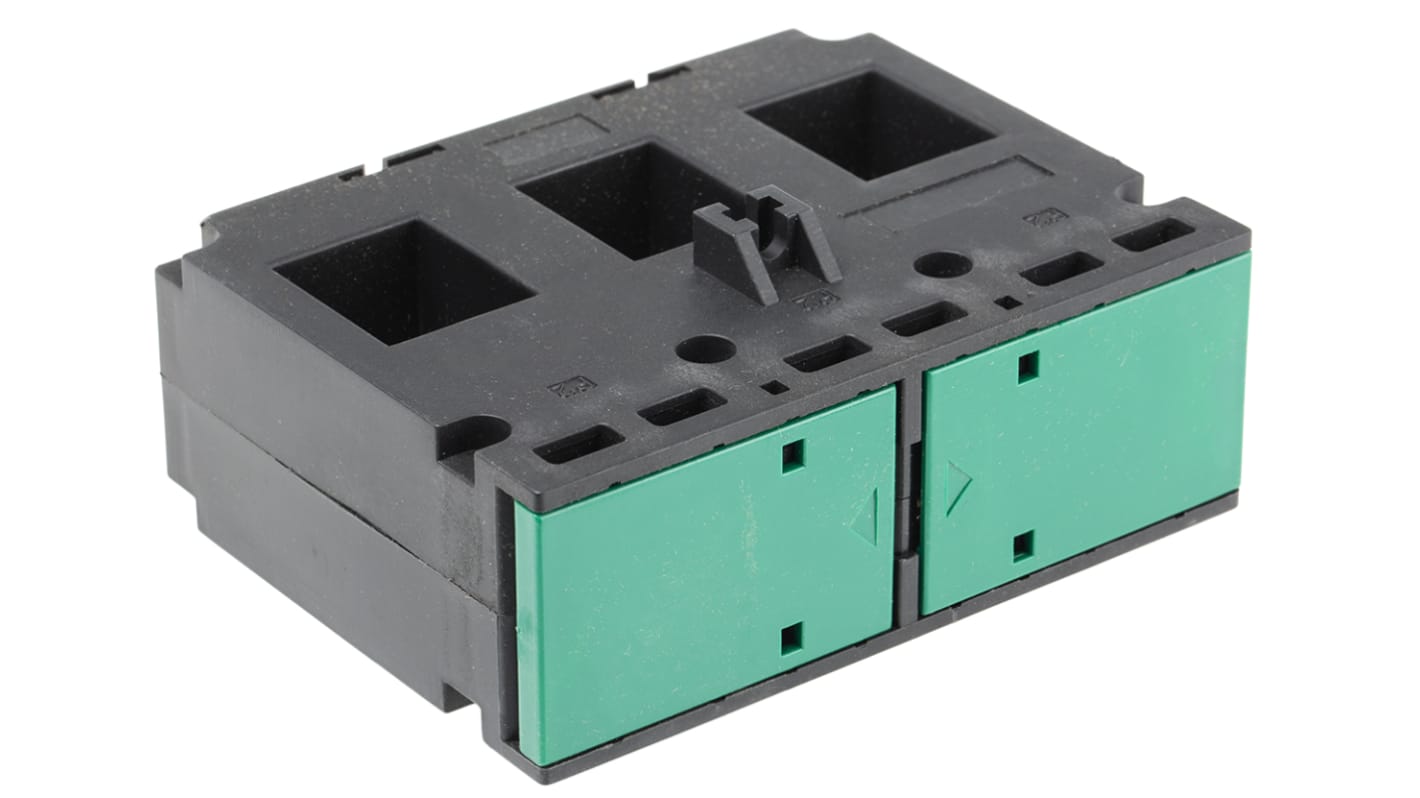

Three phase measuring current transformers suitable for primary ranges from 60A to 630A with 5A secondary. Allowing installations directly next to the moulded case circuit breakers for greater speed of installation and optimisation of space. Applicable to MCCB such as Manufacturers: ABB, Hager, Dorman Smith, Schneider, Terasaki, Merlin Gerlin, Chint, Legrand plus many more.
Wire sealable terminal covers
Cost effective 3 phase case design
Various mounting option, Din rail, Busbar or Base mounting
Secondary terminals combined slot/posi M4 Screws
Case Material Self-extinguishing classification
