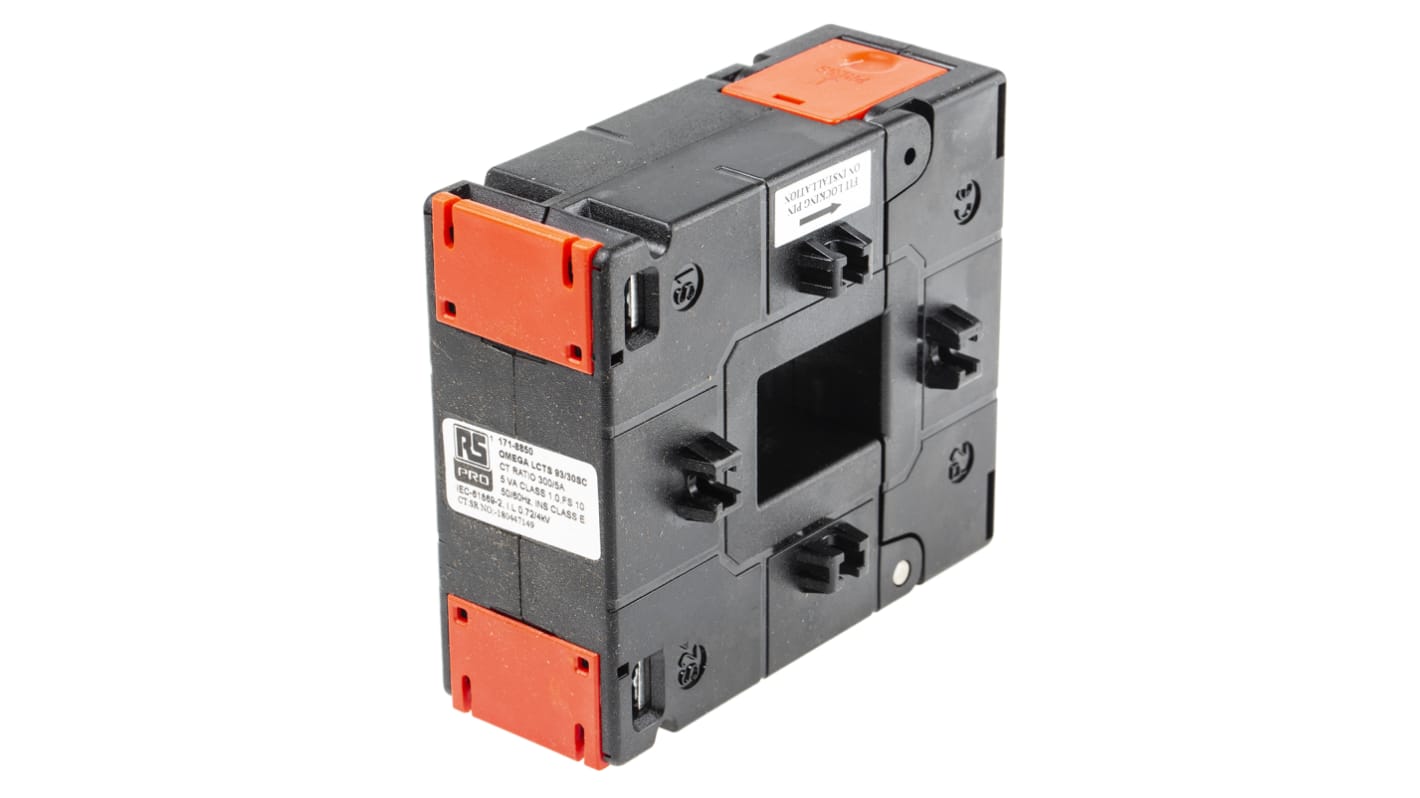

RS PRO Base Mounted Current Transformer, 300A Input, 300:5, 5 A Output, 33 x 23mm Bore
- RS庫存編號:
- 171-8850
- 製造商:
- RS PRO
- RS庫存編號:
- 171-8850
- 製造商:
- RS PRO
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- IN
產品詳細資訊
These split core transformers offer a cost effective and efficient method by which the current can be measured without the need to break the conductor, thereby reducing installation and commissioning time.
Flame retardant grade enclosure
Test voltage 3kV 50Hz 1min.
System voltage 720V max.
Insulation class: E
Test voltage 3kV 50Hz 1min.
System voltage 720V max.
Insulation class: E
規格
Attribute | Value |
|---|---|
| Current Ratio | 300:5 |
| Bore Size | 33 x 23mm |
| Transformer Type | Base Mounted |
| Input Current | 300A |
| Output Current | 5 A |
| Overall Height | 106mm |
| Overall Width | 93mm |
| Overall Depth | 40mm |
| Minimum Temperature | +20°C |
| Maximum Temperature | +70°C |
| Mounting Type | Surface Mount |
| Dimensions | 93 x 40 x 106 mm |
