TE Connectivity, AMPLIMITE HDP-20 Series, size 20 Female Crimp D-Sub Connector Contact, Gold Socket 20 AWG
- RS庫存編號:
- 446-800
- Distrelec 貨號:
- 304-37-501
- 製造零件編號:
- 1-66504-0
- 製造商:
- TE Connectivity

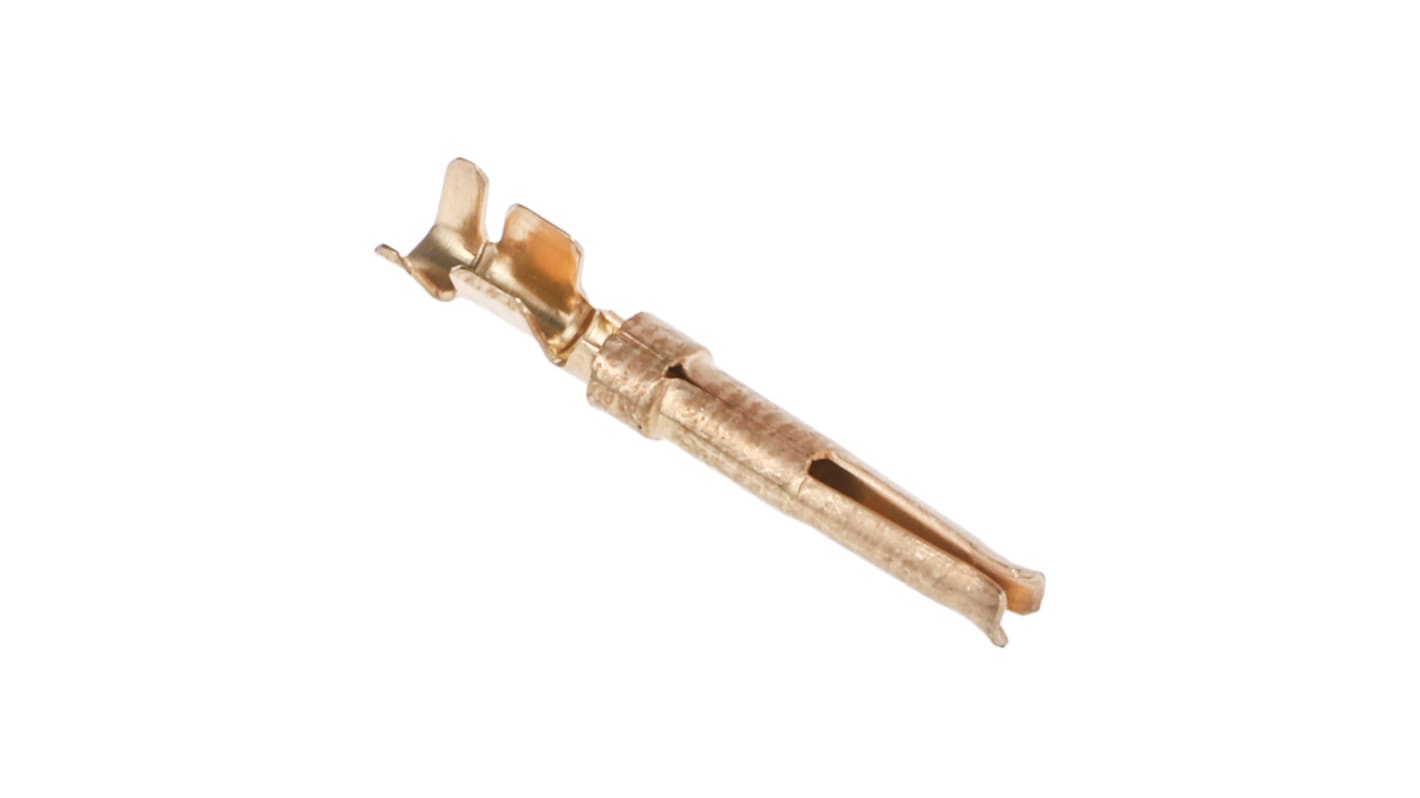

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 包，共 10 件）*
HK$16.70
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 | 每包* |
|---|---|---|
| 10 - 240 | HK$1.67 | HK$16.70 |
| 250 - 490 | HK$1.65 | HK$16.50 |
| 500 + | HK$1.62 | HK$16.20 |
* 參考價格
- RS庫存編號:
- 446-800
- Distrelec 貨號:
- 304-37-501
- 製造零件編號:
- 1-66504-0
- 製造商:
- TE Connectivity
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | TE Connectivity | |
| Product Type | D-Sub Connector Contact | |
| Gender | Female | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Current | 2A | |
| Contact Type | Socket | |
| Maximum Contact Resistance | 15mΩ | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 0.6mm² | |
| Series | AMPLIMITE HDP-20 | |
| Contact Size | 20 | |
| Termination Type | Crimp | |
| Length | 14.1mm | |
| Standards/Approvals | No | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 20AWG | |
| 選取全部 | ||
|---|---|---|
品牌 TE Connectivity | ||
Product Type D-Sub Connector Contact | ||
Gender Female | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Current 2A | ||
Contact Type Socket | ||
Maximum Contact Resistance 15mΩ | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 0.6mm² | ||
Series AMPLIMITE HDP-20 | ||
Contact Size 20 | ||
Termination Type Crimp | ||
Length 14.1mm | ||
Standards/Approvals No | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 20AWG | ||
- COO (Country of Origin):
- US
The TE Connectivity 1-66504-0 is a socket contact from the AMPLIMITE range. It is made from phosphor bronze with a gold flash over the mating area. The 1-66504-0 is designed to snap-fit into your chosen housing for easy assembly. It is then crimped to a wire with a size of 0.2-0.6mm² (24-20AWG).
Versions Available:
(446-800) – pack of 10
(799-9263) – box of 1000
TE Connectivity HDP-20 Crimp Contacts
The TE Connectivity HDP-20 series of connector contacts are designed for the AMPLIMITE D-Sub connector system. This range of size 20 DF contacts is available in both pin and socket options.
• Contact size: 20DF
• Pin diameter: 0.04 (1.02)
• Gold plated for quality
Compatible Tools:
Crimp Tool – 446-816
Insertion/Extraction Tool – 446-822
