Lascar EL-21CFR-TP-LCD+ Temperature Data Logger, USB
- RS庫存編號:
- 124-3401
- 製造零件編號:
- EL-21CFR-TP-LCD+
- 製造商:
- Lascar
3 現貨庫存,可於3工作日發貨。
單價 个
HK$1,243.90
單位 | 每單位 |
---|---|
1 + | HK$1,243.90 |
- RS庫存編號:
- 124-3401
- 製造零件編號:
- EL-21CFR-TP-LCD+
- 製造商:
- Lascar
- COO (Country of Origin):
- CN

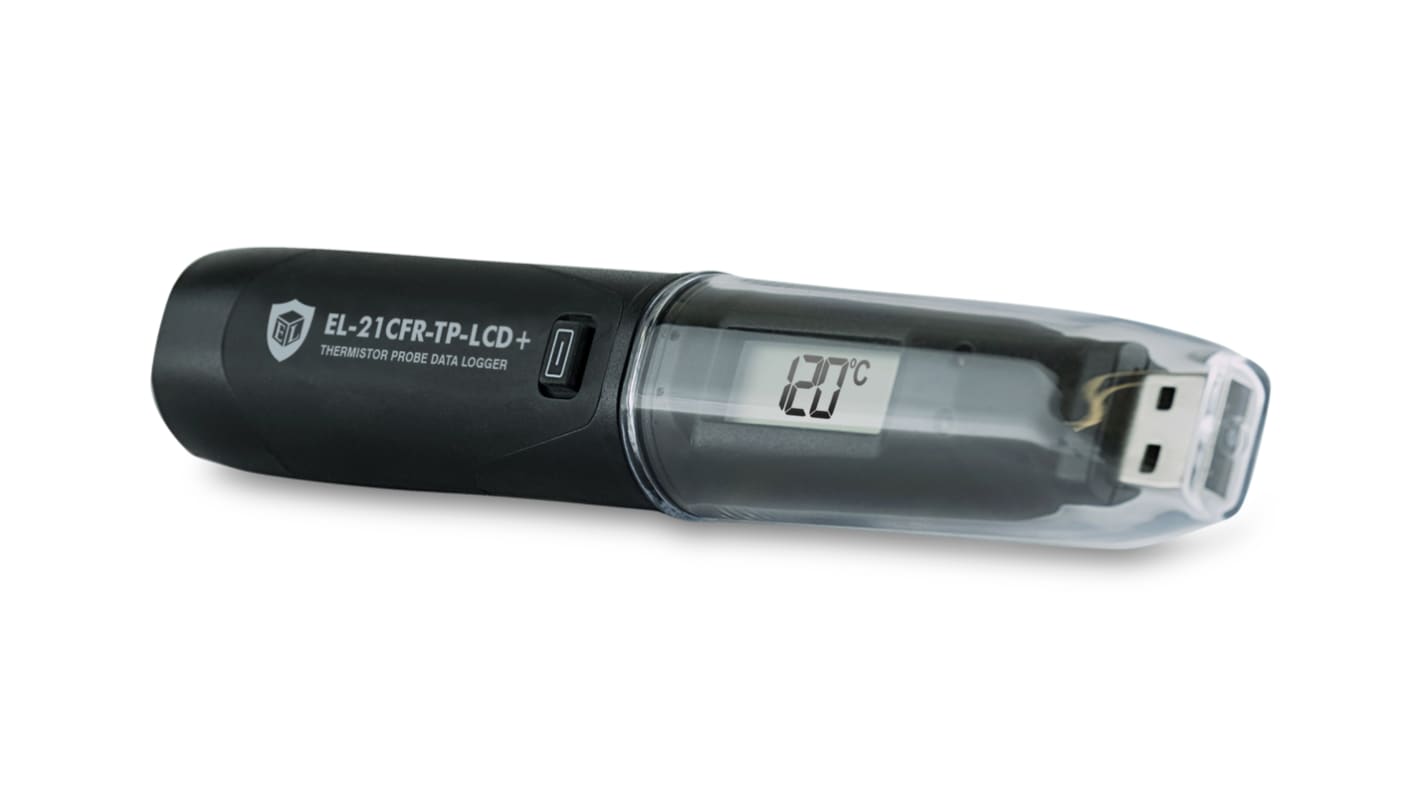

Lascar EasyLog EL-21CFR-TP-LCD+ 21CFR Compliant High Accuracy USB Thermistor Probe Temperature Data Logger
This 21CFR-compliant standalone data logger records and displays over 32,000 temperature readings from the supplied thermistor probe. The data logger features an LCD and push-button which allow the user to cycle through the most recent, highest and lowest stored readings.
Used in conjunction with Lascar's 21CFR Part 11 software, the logger enjoys all of the core offerings of the original EasyLog software, but with additional 21CFR characteristics including user permissions, encrypted data which cannot be edited, full audit trail and electronic signatures for all activity.
Easily set up the logger and view downloaded data by plugging the unit into a PCs USB port and using the free 21CFR Part 11 software provided. Supplied with 1/2 AA battery and wall mount clip.
Used in conjunction with Lascar's 21CFR Part 11 software, the logger enjoys all of the core offerings of the original EasyLog software, but with additional 21CFR characteristics including user permissions, encrypted data which cannot be edited, full audit trail and electronic signatures for all activity.
Easily set up the logger and view downloaded data by plugging the unit into a PCs USB port and using the free 21CFR Part 11 software provided. Supplied with 1/2 AA battery and wall mount clip.
Feature List
Measurement range:-40 °C to 125 °C (-40 °F to 257 °F)
Accuracy: ±0.6 °C (-5 to 40 °C)
Logging rate: User selectable between 1 second to 12 hours
Operating temperature: -35 °C to 80 °C (-31 °F to 176 °F)
Battery life: 2 Years
Application Info
The EL-21CFR-TP-LCD+ has been specifically developed to meet the data security required by the US FDA's 21CFR part 11 regulations. As such it is suitable for use in applications where the integrity of the data is of the highest importance. Example applications where data security is important include medical and cold chain.
Attribute | Value |
---|---|
Model Number | EL-21CFR-TP-LCD+ |
Number of Input Channels | 1 |
Measurement Parameters | Temperature |
Sensor Type | Thermistor |
Interface Type | USB |
Data Logger Type | Temperature |
Maximum Temperature Measurement | +125 °C |
Power Source | Battery |
Best Temperature Measurement Accuracy | ±0.2°C |
IP Rating | IP67 |
Minimum Operating Temperature | -35°C |
Maximum Operating Temperature | +80°C |
Display Type | LCD |
Number of Readings Per Channel | 32510 |
Battery Life | 2 Years |
Battery Type | 1/2AA |
Temperature Measurement Resolution | 0.1°C |
Alarm | Yes |
Includes | Battery, Mouting Bracket, Hih Accuracy Thermistor Probe |
