小計(1 件)*
HK$1,266.80
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 18 件從 2026年10月12日 起發貨
- 加上 10 件從 2026年10月30日 起發貨
- 加上 10 件從 2026年11月27日 起發貨
**需要更多嗎?**輸入您需要的數量,然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$1,266.80 |
* 參考價格
- RS庫存編號:
- 161-2909
- 製造零件編號:
- EL-21CFR-TC
- 製造商:
- Lascar
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Lascar | |
| Product Type | Data Logger | |
| Accuracy | ±1°C, ±1 °C | |
| Model Number | EL-21CFR-TC | |
| Number of Channels | 1 | |
| Measurement Parameters | Temperature | |
| Interface Type | USB | |
| Data Logger Type | Temperature | |
| Power Source | Battery | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | 80°C | |
| Hazardous Area Certification | No | |
| Width | 27mm | |
| Standards/Approvals | No | |
| Height | 27mm | |
| Length | 118mm | |
| Display Type | LCD | |
| Battery Life | 2year | |
| Number of Readings per Channel | 32510 | |
| Alarm | Yes | |
| Battery Type | AA | |
| 選取全部 | ||
|---|---|---|
品牌 Lascar | ||
Product Type Data Logger | ||
Accuracy ±1°C, ±1 °C | ||
Model Number EL-21CFR-TC | ||
Number of Channels 1 | ||
Measurement Parameters Temperature | ||
Interface Type USB | ||
Data Logger Type Temperature | ||
Power Source Battery | ||
IP Rating IP67 | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature 80°C | ||
Hazardous Area Certification No | ||
Width 27mm | ||
Standards/Approvals No | ||
Height 27mm | ||
Length 118mm | ||
Display Type LCD | ||
Battery Life 2year | ||
Number of Readings per Channel 32510 | ||
Alarm Yes | ||
Battery Type AA | ||
- COO (Country of Origin):
- CN

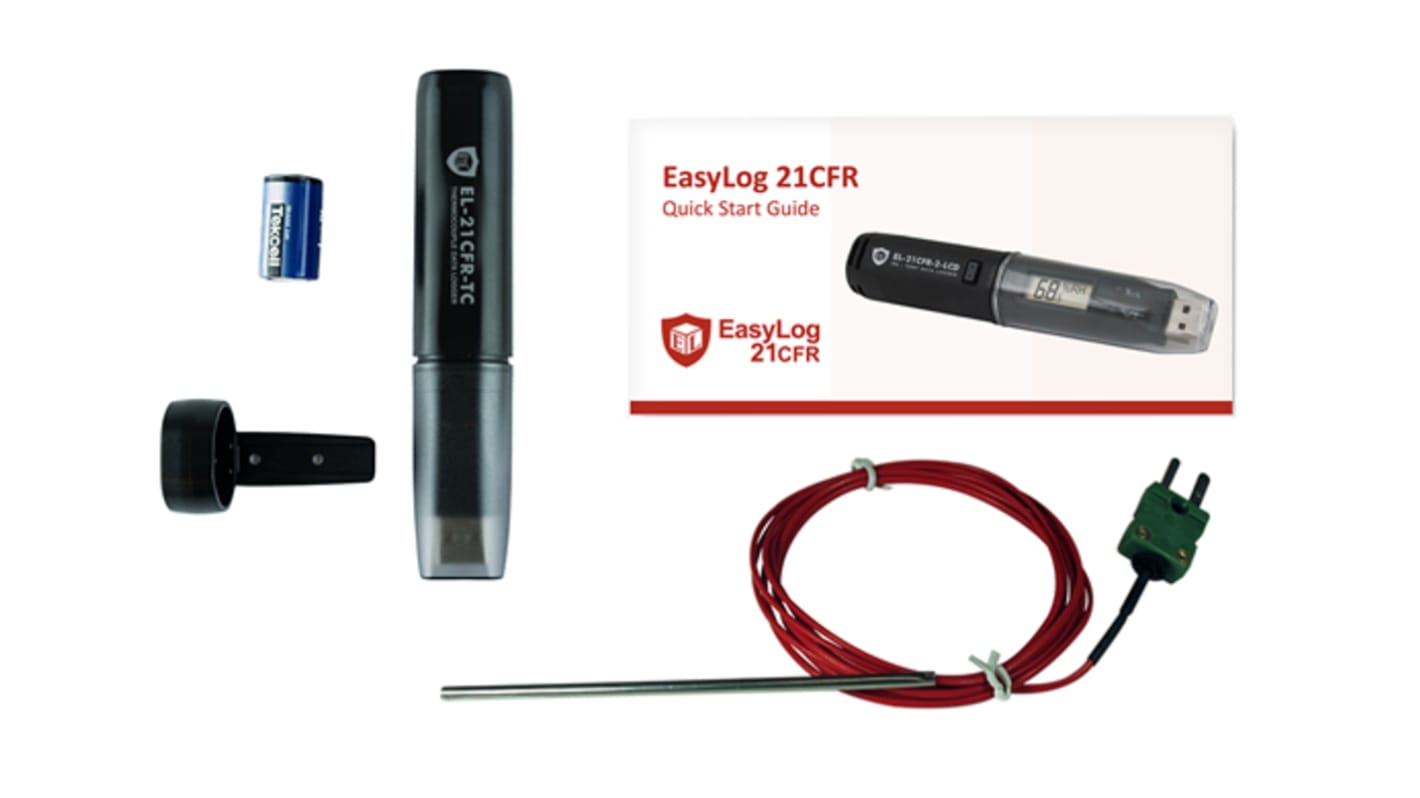

This 21CFR compliant, standalone data logger measures over 32,000 readings from inter-changeable J, K or T type thermocouples. Supplied with a K Type probe, its measurement range out of the box is from 0 to +200°C (-32 to +392°F).Used in conjunction with Lascar's 21CFR Part 11 software, the logger enjoys all of the core offerings of the original EasyLog software, but with additional 21CFR characteristics including user permissions, encrypted data which cannot be edited, full audit trail and electronic signatures for all activity. Easily set up the logger and view downloaded data by plugging the unit into a PCs USB port.
Compatible with K, J and T type thermocouples
Stores over 32,000 readings
Supplied with 1.5m K-type thermocouple probe with
0 to 200°C measurement range
Logging rates between 1 second and 12 hours
Immediate and delayed logging start
User-programmable alarm thresholds
Status indication via red and green LEDs
