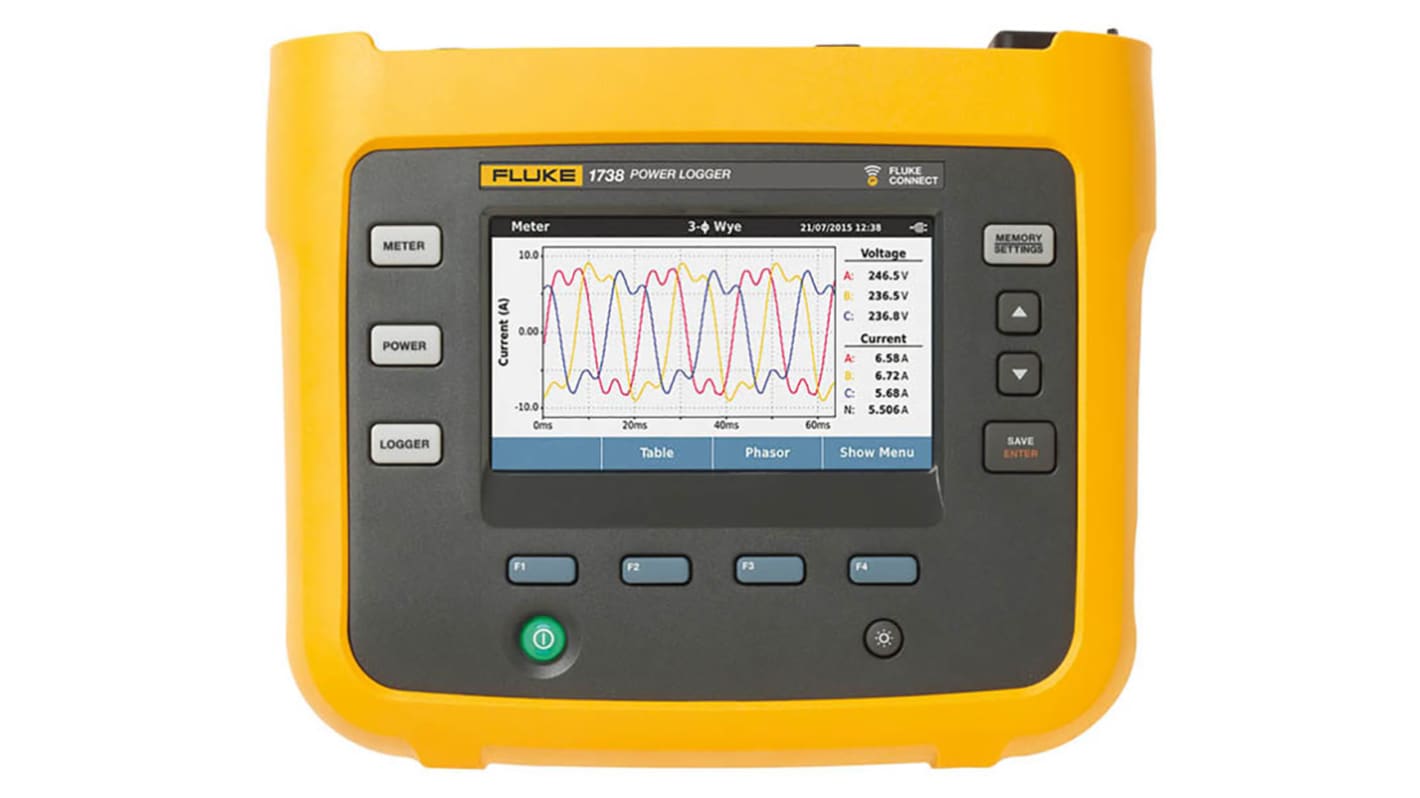

Fluke 1738 Three Phase Power Energy Monitor & Logger, USB, WiFi, Bluetooth, 4 Channel
- RS庫存編號:
- 900-9980
- 製造零件編號:
- FLUKE-1738/B
- 製造商:
- Fluke
此圖片僅供參考，請參閲產品詳細資訊及規格
小計（1 件）*
HK$57,348.00
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年9月28日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$57,348.00 |
* 參考價格
- RS庫存編號:
- 900-9980
- 製造零件編號:
- FLUKE-1738/B
- 製造商:
- Fluke
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Fluke | |
| Product Type | Energy Monitor & Logger | |
| Model Number | 1738 | |
| Accuracy | ± (0.2 % + 0.01 %) | |
| Measurement Parameters | Voltage Harmonic, Current Harmonic, THD Current, Unbalance, TDD, Frequency, Current, THD Voltage, Voltage | |
| Number of Channels | 4 | |
| Interface Type | USB, WiFi, Bluetooth | |
| Data Logger Type | Three Phase Power | |
| Power Source | Battery | |
| IP Rating | IP50 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Height | 55mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | EN50160, IEC 61000-4-7, IEC 61000-4-30 Class S, IEC62586-1, IEEE 519, IEEE 1459 | |
| Width | 167mm | |
| Length | 198mm | |
| Display Type | LCD | |
| Resolution | 16 bit | |
| Battery Type | Li-ion Rechargeable Battery | |
| Maximum Measurement | 500 V | |
| Minimum Measurement | 100 V | |
| Battery Life | 4h | |
| 選取全部 | ||
|---|---|---|
品牌 Fluke | ||
Product Type Energy Monitor & Logger | ||
Model Number 1738 | ||
Accuracy ± (0.2 % + 0.01 %) | ||
Measurement Parameters Voltage Harmonic, Current Harmonic, THD Current, Unbalance, TDD, Frequency, Current, THD Voltage, Voltage | ||
Number of Channels 4 | ||
Interface Type USB, WiFi, Bluetooth | ||
Data Logger Type Three Phase Power | ||
Power Source Battery | ||
IP Rating IP50 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Height 55mm | ||
Hazardous Area Certification No | ||
Standards/Approvals EN50160, IEC 61000-4-7, IEC 61000-4-30 Class S, IEC62586-1, IEEE 519, IEEE 1459 | ||
Width 167mm | ||
Length 198mm | ||
Display Type LCD | ||
Resolution 16 bit | ||
Battery Type Li-ion Rechargeable Battery | ||
Maximum Measurement 500 V | ||
Minimum Measurement 100 V | ||
Battery Life 4h | ||
- SAFETY ALERT NOTIFICATION
- Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4
- Manual - FLUKE-1738/B
- Brochure - Fluke Power Quality and Energy Tools
- Application Note - FLUKE-1738/B
- UN38.3 Lithium Battery Test Summary
- IATA State of Charge - FORBIDDEN (Lithium Ion Batteries Packed with Equipment)
- Guide - 1736/1738 Series
- Datasheet - Fluke-1736 and 1738
豁免
- COO (Country of Origin):
- RO
Fluke Energy Monitor & Logger, ±(0.2%+0.01%) Accuracy, 500V Maximum Measurement - FLUKE-1738/B
This energy monitor & logger records and analyses three‑phase electrical parameters to support power quality and energy studies in industrial environments. It captures voltage, current, power and harmonics while allowing local review on a colour touch display or remote access via WiFi and Bluetooth. The instrument operates from its Li‑Ion battery or directly from the measured circuit and is designed for onsite logging, event capture and subsequent detailed analysis.
Features & Benefits
• ±(0.2%+0.01%) voltage accuracy for high‑precision measurement
• 16bit synchronous sampling at 10.24kHz for detailed waveforms
• Records up to 50th harmonics to identify distortion sources
• Four inputs enable measurement of three phases and neutral
• On‑battery runtime 4h standard and up to 5.5h power saving
• USB, WiFi and Bluetooth interfaces for flexible data transfer
• 16bit synchronous sampling at 10.24kHz for detailed waveforms
• Records up to 50th harmonics to identify distortion sources
• Four inputs enable measurement of three phases and neutral
• On‑battery runtime 4h standard and up to 5.5h power saving
• USB, WiFi and Bluetooth interfaces for flexible data transfer
**Applications**
• Suitable for load studies to verify electrical system capacity
• Ideal for energy assessments before and after efficiency measures
• Used for harmonic analysis affecting sensitive equipment
• Can be used to capture dips, swells and inrush currents
• Suitable for NEC220 load studies and industrial installations
• Ideal for energy assessments before and after efficiency measures
• Used for harmonic analysis affecting sensitive equipment
• Can be used to capture dips, swells and inrush currents
• Suitable for NEC220 load studies and industrial installations
How are event recordings captured and stored?
Voltage and current events trigger waveform snapshots with timestamped RMS profiles and severity metadata, stored in internal flash memory for later download.
What types of circuits can it measure?
It supports single‑phase, split‑phase, 3‑phase wye and Delta configurations including 2‑element Delta and open‑leg Delta current‑only load studies.
How does the instrument Interface with remote tools?
Files can be copied to a USB flash drive, transferred via WiFi infrastructure or accessed through the mobile/desktop app using Bluetooth for auxiliary modules.
What current sensor ranges are available via probes?
Flexible Rogowski and clamp probes cover ranges from milliamps up to multiple kiloamps depending on the accessory fitted.
Which environmental limits affect operation?
Continuous use is specified between −10°C and +50°C with defined humidity limits that reduce permitted RH as temperature increases.
