ROHM, 8 kB Serial EEPROM, 3500 μs 8-Pin TSSOP I2C
- RS庫存編號:
- 266-3793
- 製造零件編號:
- BR24H08FVT-5ACE2
- 製造商:
- ROHM

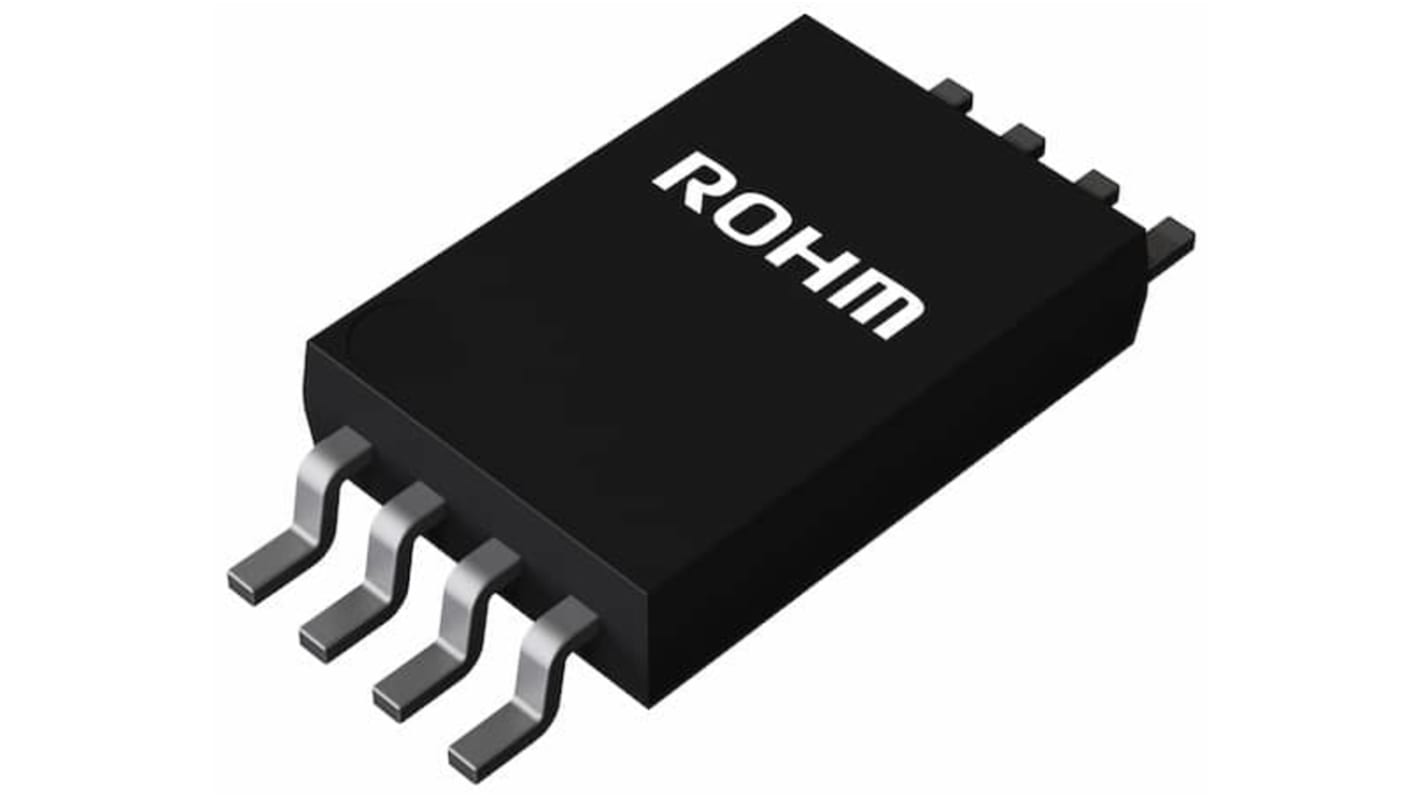

此圖片僅供參考，請參閲產品詳細資訊及規格
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 266-3793
- 製造零件編號:
- BR24H08FVT-5ACE2
- 製造商:
- ROHM
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | ROHM | |
| Memory Size | 8kB | |
| Product Type | Serial EEPROM | |
| Interface Type | I2C | |
| Package Type | TSSOP | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 1MHz | |
| Organisation | 1K x 8 | |
| Minimum Supply Voltage | 1.7V | |
| Number of Bits per Word | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Width | 3mm | |
| Length | 6.4mm | |
| Series | BR24H08xxx-5AC | |
| Standards/Approvals | No | |
| Height | 1.2mm | |
| Maximum Random Access Time | 3500μs | |
| Data Retention | 100year | |
| Automotive Standard | AEC-Q100 | |
| Number of Words | 1K | |
| 選取全部 | ||
|---|---|---|
品牌 ROHM | ||
Memory Size 8kB | ||
Product Type Serial EEPROM | ||
Interface Type I2C | ||
Package Type TSSOP | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Clock Frequency 1MHz | ||
Organisation 1K x 8 | ||
Minimum Supply Voltage 1.7V | ||
Number of Bits per Word 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Width 3mm | ||
Length 6.4mm | ||
Series BR24H08xxx-5AC | ||
Standards/Approvals No | ||
Height 1.2mm | ||
Maximum Random Access Time 3500μs | ||
Data Retention 100year | ||
Automotive Standard AEC-Q100 | ||
Number of Words 1K | ||
The ROHM EEPROM is a 8Kbit serial of I²C BUS interface, all controls available by 2 ports of serial clock and serial data. 1.7V to 5.5V wide limit of operating voltage, possible 1 MHz operation.
AEC Q100 qualified
Low current consumption
