52102 | Murrelektronik Limited Interface Relay, DIN Rail Mount, 24V dc Coil, DPDT, 2-Pole, 6A Load | RS
最近搜索

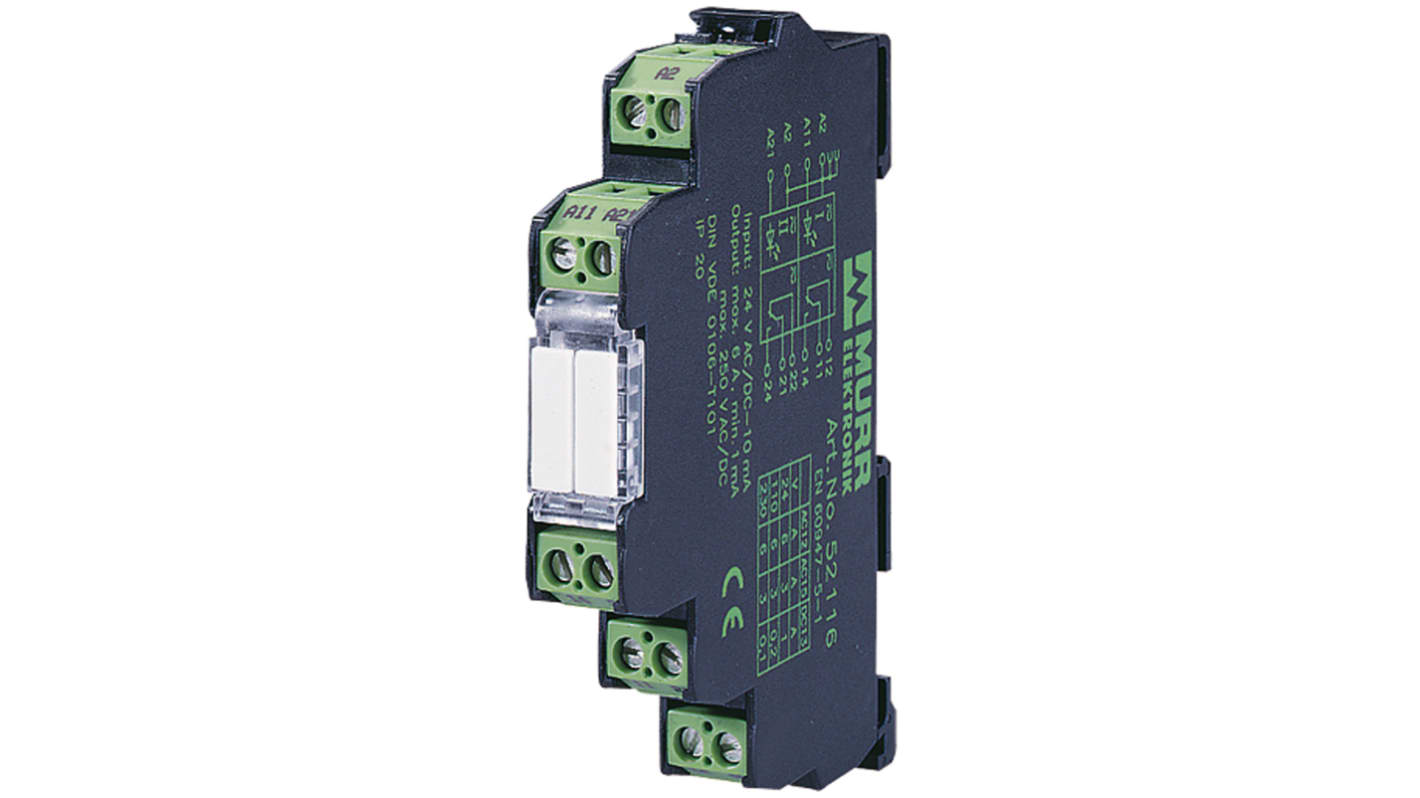

    Murrelektronik Limited Interface Relay, DIN Rail Mount, 24V dc Coil, DPDT, 2-Pole, 6A Load

    查看此類別

    Price 个**

    HK$296.00

    Add to Basket
    選擇或輸入數量
    157 現貨庫存，可於3工作日發貨。*

    * 交貨日期可能會根據您選擇的數量和交貨地址而變更。

    即時庫存查詢
    單位
    每單位
    1 +HK$296.00

    ** 參考價格

    RS庫存編號:
    137-0305
    製造零件編號:
    52102
    製造商:
    Murrelektronik Limited
    透過選取一個或多個屬性來查找類似產品。
    選取全部

    品牌

    Murrelektronik Limited

    Coil Voltage

    24V dc

    Contact Configuration

    DPDT

    Mounting Type

    DIN Rail

    Number of Poles

    2

    Load Current Rating

    6A

    Maximum Input Voltage

    250V ac/dc

    Terminal Type

    Screw

    Switching Voltage

    24 V dc → 250V ac/dc

    Depth

    70mm

    Height

    91mm

    Length

    12.4mm

    Contact Material

    Silver Alloy

    Input Current

    18mA

    Life

    20000000 (Mechanical) cycles

    Turn On Time

    10ms

    Operating Temperature Range

    -20 → +50°C

    Dimensions

    12.4 x 70 x 91mm

    Maximum Operating Temperature

    +55°C

    Relay Switching Classification

    Interface Relay Module

    Minimum Operating Temperature

    -20°C

    Standards Met

    CCC, CE, CSA, cURus

    Turn Off Time

    15ms
