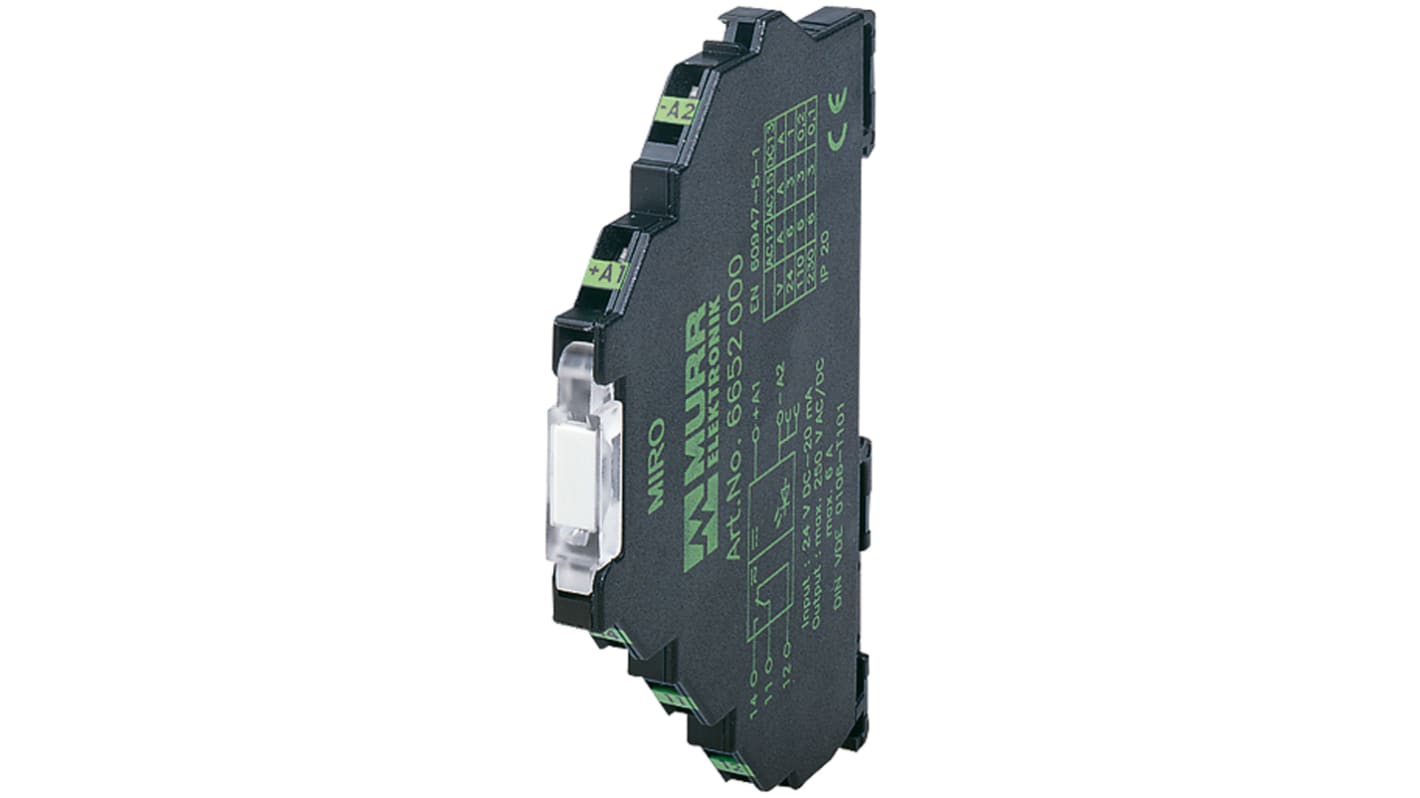

Murrelektronik Limited Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, 6A Load
- RS庫存編號:
- 137-0313
- 製造零件編號:
- 6652005
- 製造商:
- Murrelektronik Limited
Price 个**
HK$182.90
19 現貨庫存,可於4工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
即時庫存查詢
單位 | 每單位 |
---|---|
1 + | HK$182.90 |
** 參考價格
- RS庫存編號:
- 137-0313
- 製造零件編號:
- 6652005
- 製造商:
- Murrelektronik Limited
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
---|---|---|
品牌 | Murrelektronik Limited | |
Coil Voltage | 24V dc | |
Contact Configuration | SPDT | |
Mounting Type | DIN Rail | |
Number of Poles | 1 | |
Load Current Rating | 6A | |
Maximum Input Voltage | 250V ac/dc | |
Switching Voltage | 24 V dc → 250V ac/dc | |
Terminal Type | Spring | |
Depth | 70mm | |
Height | 91mm | |
Length | 6.2mm | |
Contact Material | Silver Alloy | |
Input Current | 14mA | |
Minimum Operating Temperature | -20°C | |
Turn Off Time | 15ms | |
Maximum Operating Temperature | +55°C | |
Operating Temperature Range | -20 → +50°C | |
Standards Met | CCC, CE, CSA, cURus | |
Relay Switching Classification | Interface Relay Module | |
Life | 20000000 (Mechanical) cycles | |
Dimensions | 6.2 x 70 x 91mm | |
Turn On Time | 10ms | |
選取全部 | ||
---|---|---|
品牌 Murrelektronik Limited | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Number of Poles 1 | ||
Load Current Rating 6A | ||
Maximum Input Voltage 250V ac/dc | ||
Switching Voltage 24 V dc → 250V ac/dc | ||
Terminal Type Spring | ||
Depth 70mm | ||
Height 91mm | ||
Length 6.2mm | ||
Contact Material Silver Alloy | ||
Input Current 14mA | ||
Minimum Operating Temperature -20°C | ||
Turn Off Time 15ms | ||
Maximum Operating Temperature +55°C | ||
Operating Temperature Range -20 → +50°C | ||
Standards Met CCC, CE, CSA, cURus | ||
Relay Switching Classification Interface Relay Module | ||
Life 20000000 (Mechanical) cycles | ||
Dimensions 6.2 x 70 x 91mm | ||
Turn On Time 10ms | ||
