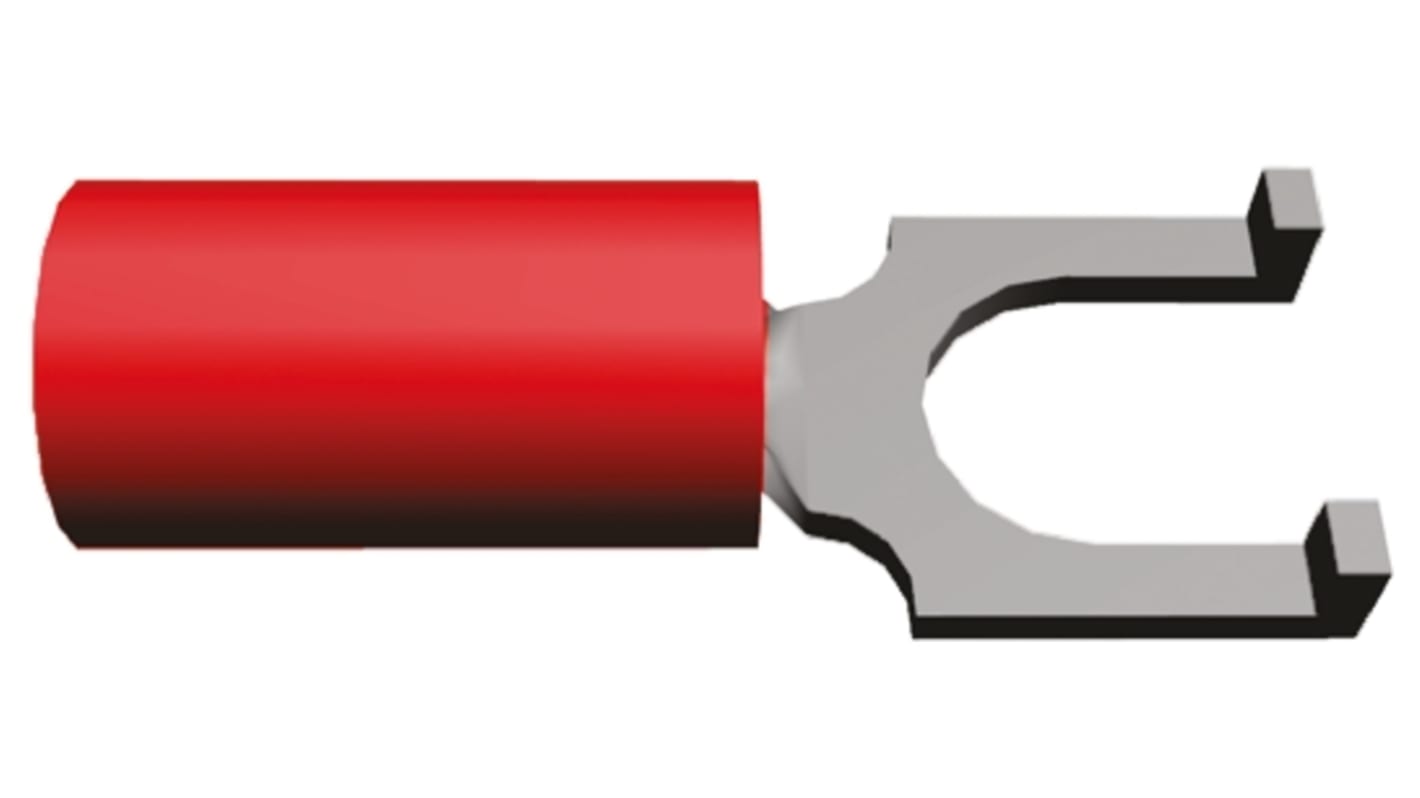

TE Connectivity, PLASTI-GRIP Insulated Crimp Spade Connector, 0.26mm² to 1.65mm², 22AWG to 16AWG, M5 Stud Size PVC, Red
- RS庫存編號:
- 669-2046
- 製造零件編號:
- 328516
- 製造商:
- TE Connectivity
可享批量折扣
Price 个（每托盘 100 ）**
HK$4.962
100 現貨庫存，可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$250.00 即可享受 免費 送貨服務
即時庫存查詢
單位 | 每單位 | 每包** |
|---|---|---|
| 100 - 200 | HK$4.962 | HK$496.20 |
| 300 - 400 | HK$4.862 | HK$486.20 |
| 500 + | HK$4.765 | HK$476.50 |
** 參考價格
- RS庫存編號:
- 669-2046
- 製造零件編號:
- 328516
- 製造商:
- TE Connectivity
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | TE Connectivity | |
| Series | PLASTI-GRIP | |
| Insulation | Insulated | |
| Width | 7.52mm | |
| Insulation Material | PVC | |
| Minimum Wire Size mm² | 0.26mm² | |
| Maximum Wire Size mm² | 1.65mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Stud Size | M5 | |
| Colour | Red | |
| Contact Plating | Tin | |
| Overall Length | 20.34mm | |
| Contact Material | Copper | |
選取全部 | ||
|---|---|---|
品牌 TE Connectivity | ||
Series PLASTI-GRIP | ||
Insulation Insulated | ||
Width 7.52mm | ||
Insulation Material PVC | ||
Minimum Wire Size mm² 0.26mm² | ||
Maximum Wire Size mm² 1.65mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Stud Size M5 | ||
Colour Red | ||
Contact Plating Tin | ||
Overall Length 20.34mm | ||
Contact Material Copper | ||
