可享批量折扣
查看批量定價選項小計（1 管，共 97 件）*
HK$3,954.205
訂單超過 HK$250.00 免費送貨
有庫存
- 1,164 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每管* |
|---|---|---|
| 97 - 97 | HK$40.765 | HK$3,954.21 |
| 194 - 291 | HK$39.744 | HK$3,855.17 |
| 388 + | HK$39.134 | HK$3,796.00 |
* 參考價格
- RS庫存編號:
- 188-5417
- 製造零件編號:
- FM25V01A-G
- 製造商:
- Infineon
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Infineon | |
| Memory Size | 128kB | |
| Product Type | FRAM | |
| Organisation | 16K x 8 bit | |
| Interface Type | SPI | |
| Data Bus Width | 8bit | |
| Maximum Random Access Time | 16ns | |
| Maximum Clock Frequency | 40MHz | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Length | 4.97mm | |
| Standards/Approvals | No | |
| Width | 3.98mm | |
| Height | 1.38mm | |
| Maximum Operating Temperature | 85°C | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | AEC-Q100 | |
| Number of Bits per Word | 8 | |
| Number of Words | 16k | |
| Minimum Supply Voltage | 2V | |
| 選取全部 | ||
|---|---|---|
品牌 Infineon | ||
Memory Size 128kB | ||
Product Type FRAM | ||
Organisation 16K x 8 bit | ||
Interface Type SPI | ||
Data Bus Width 8bit | ||
Maximum Random Access Time 16ns | ||
Maximum Clock Frequency 40MHz | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 8 | ||
Length 4.97mm | ||
Standards/Approvals No | ||
Width 3.98mm | ||
Height 1.38mm | ||
Maximum Operating Temperature 85°C | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard AEC-Q100 | ||
Number of Bits per Word 8 | ||
Number of Words 16k | ||
Minimum Supply Voltage 2V | ||
- COO (Country of Origin):
- US

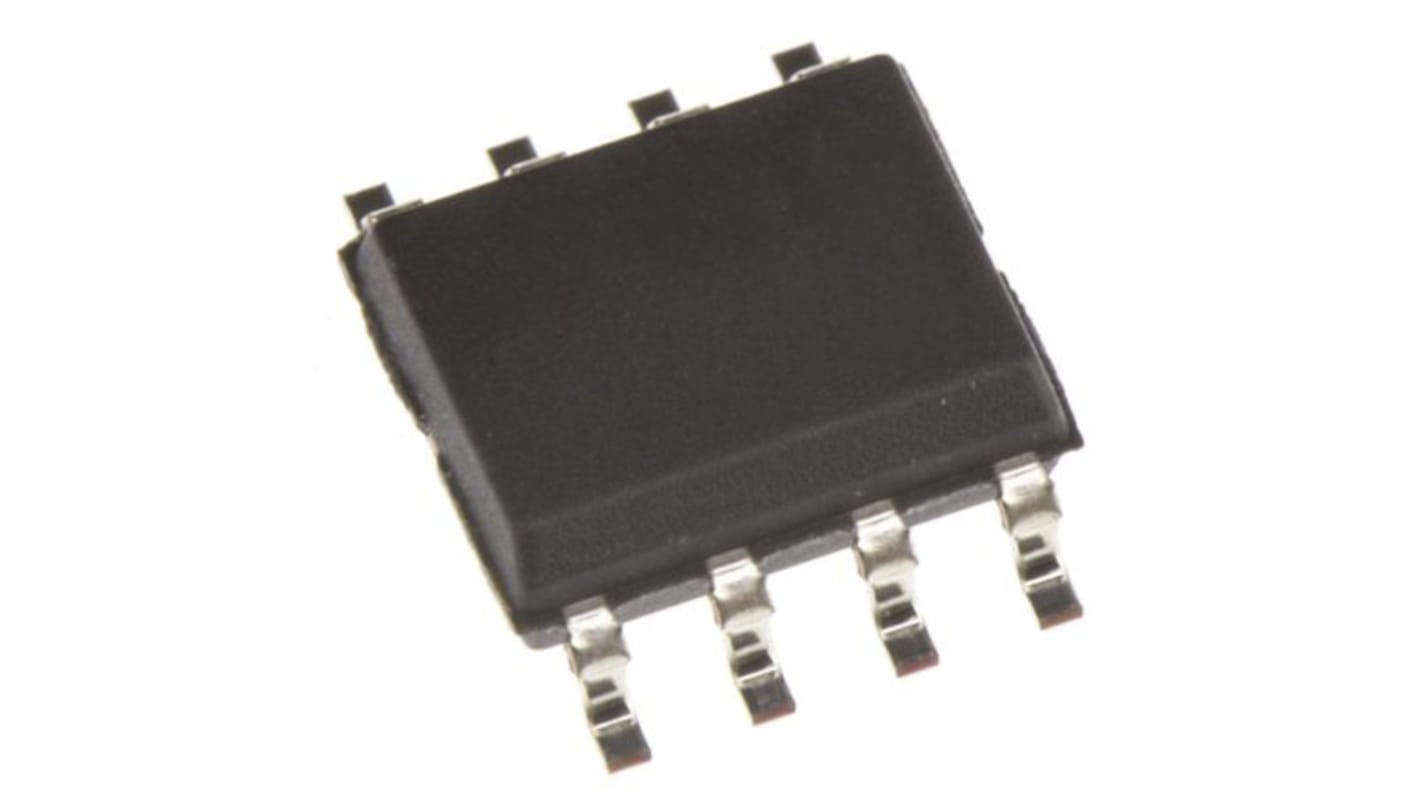

Infineon FRAM, 128kB Memory Size, 3.6V Maximum Supply Voltage - FM25V01A-G
This FRAM is a non-volatile memory device designed for embedded and automotive environments, providing persistent data storage with serial SPI access. It operates across a broad temperature range suitable for industrial and vehicle applications and is intended for surface-mounted PCB integration in compact systems.
Features and Benefits:
• 40MHz SPI clock enables faster serial data transfers
• 16ns maximum random-access time supports rapid reads
• 128kB organised as 16Kx8 offers byte-addressable storage
• Operates from 2V to 3.6V for flexible power-rail designs
• Qualified to AEC-Q100 for automotive system integration
• 8-pin SOIC surface mount reduces board footprint
• 16ns maximum random-access time supports rapid reads
• 128kB organised as 16Kx8 offers byte-addressable storage
• Operates from 2V to 3.6V for flexible power-rail designs
• Qualified to AEC-Q100 for automotive system integration
• 8-pin SOIC surface mount reduces board footprint
Applications
• Suitable for automotive data logging and parameter storage
• Ideal for embedded controllers requiring non-volatile RAM
• Used with low-power sensors needing frequent writes
• Can be used for calibration and configuration retention
• Suitable for industrial electronics operating across -40 to 85°C
• Ideal for embedded controllers requiring non-volatile RAM
• Used with low-power sensors needing frequent writes
• Can be used for calibration and configuration retention
• Suitable for industrial electronics operating across -40 to 85°C
What interface is provided for microcontroller connection?
Communication uses a serial peripheral interface (SPI) compatible with standard master controllers and supporting up to 40MHz clock rates for high-throughput exchanges.
What package and mounting considerations apply during PCB assembly?
The device arrives in an 8-pin SOIC package designed for surface-mount assembly and standard reflow soldering processes.
How does the device behave under automotive temperature ranges?
It functions throughout a minimum of -40°C up to a maximum of 85°C, meeting typical temperature demands for vehicle electronics.
What electrical limits should designers observe for supply rails?
The memory accepts supply voltages from a minimum of 2V up to a maximum of 3.6V
designs must ensure rails remain within this range to maintain reliable operation.
