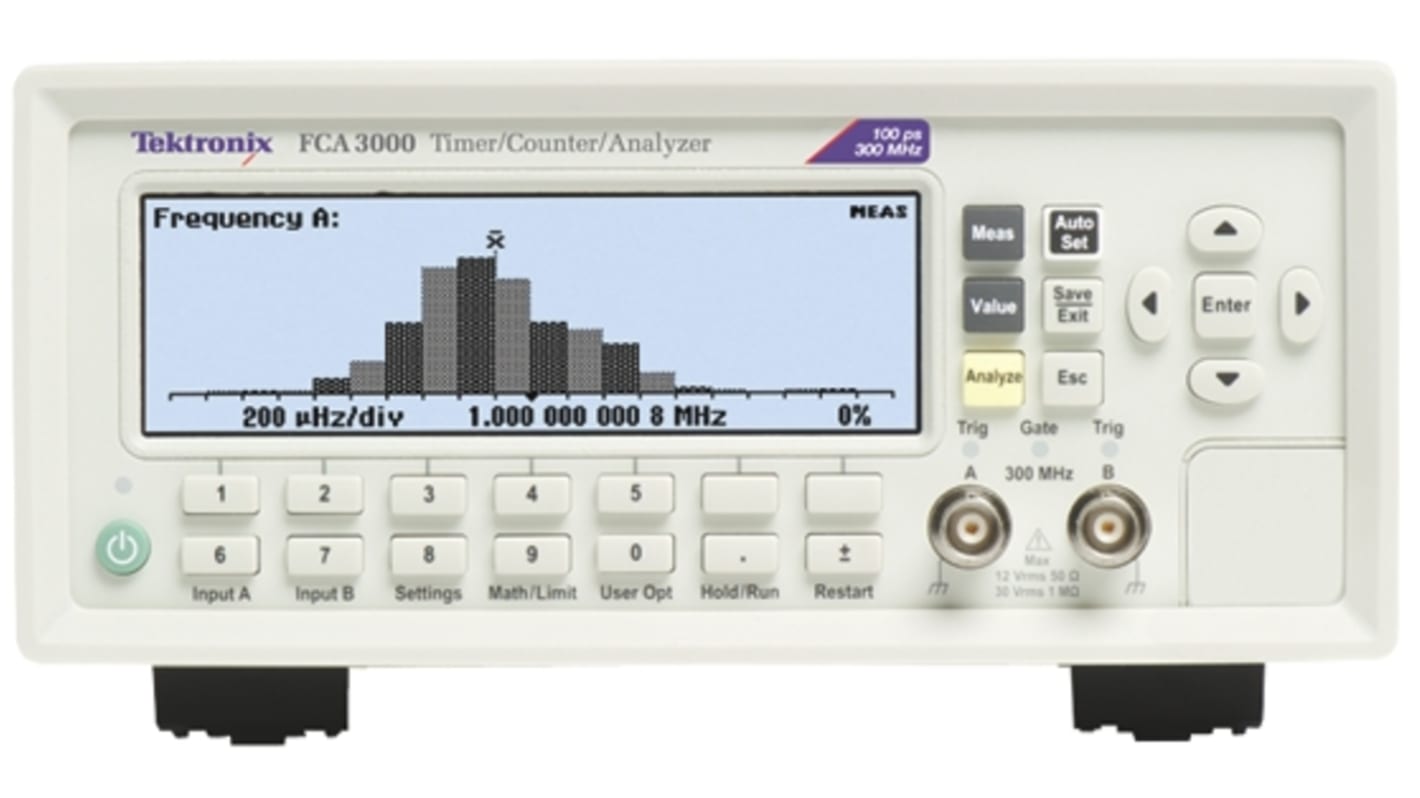

Tektronix FCA3000 Frequency Counter, 0.001 Hz Min, 300 MHz Max, 12 digits Resolution

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Frequency Counters

小計（1 件）*

HK$48,503.10

Add to Basket
選擇或輸入數量
下方訂單 HK$250.00（不含稅）成本 HK$50.00。
有限的庫存
  • 1 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$48,503.10

* 參考價格

RS庫存編號:
712-1154
Distrelec 貨號:
176-36-310
製造零件編號:
FCA3000
製造商:
Tektronix
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Tektronix

Product Type

Frequency Counter

Maximum Frequency

300MHz

Minimum Frequency

0.001Hz

Resolution

12 digits

Pulse Width Resolution

1.6ns

Attenuation

1:10

Display Type

LCD Backlight

Maximum Input Voltage

50V

Minimum Input Voltage

-50V

Input Impedance

1mΩ

Minimum Operating Temperature

0°C

Measurement Time

250ksps

Maximum Operating Temperature

50°C

Standards/Approvals

IEEE, CE

Weight

2.7kg

Length

395mm

Model Number

FCA3000

Height

90mm

Width

210 mm

Connector Type

SMA, Type N Female, BNC

Plug Type

Type G - British 3-Pin, Type C - EU, 3-Pin (Global)

不適用

COO (Country of Origin):
PL

Tektronix FCA3000 & FCA3100 Timer/Counter/Analyzers


Tektronix timer/counter/analyzers offer performance and an abundance of features at an affordable price. With a graphical display and single button analyse key, users can instantly view their measurements with histograms, trend plots or a wide choice of statistics displayed simultaneously on the display, including Allan Deviation. There is the added benefit of multi-parameter measurements from one test connection, e.g., voltage measurements included with frequency. The instruments offer very high measurement speed and connectivity for an automated test system, including a convenient USB port. Measurements can be captured into internal memory at the rate of 250k/sec, or streaming block transfers through USB/GPIB up to 15k/sec.

Graphical, multi-parameter timer/counter display

High resolution down to 50 ps single shot (time)

Measurements to 12 digits/sec (frequency)

Fast USB/GPIB bus transfer speeds

Super fast measurements (250k/s) to internal memory

Zero-dead time frequency/period measurements

Built-in statistics & math functions including on screen histogram, trend plot or Allan Deviation

GPIB operates in either SCPI/GPIB or 53131A emulation mode, for plug-n-play replacement in existing ATE systems

Seamless PC connectivity through USB with NI SignalExpress™ Software

Note

Suitable for use with TVA3000 - TimeView™ Modulation Domain Analyzer 712-1151 and with HCTEK4321 hard carrying case 613-1510

Supplied with

Quick Start User Manual (English, Chinese, Japanese), multiple language documentation CD, NI LabVIEW SignalExpress™ TE (Basic) Edition software, trial version of TimeView™ Time Domain Analysis software, power cords, calibration certificate, UK & Euro plugs ( 712-1154 & 712-1157 )
