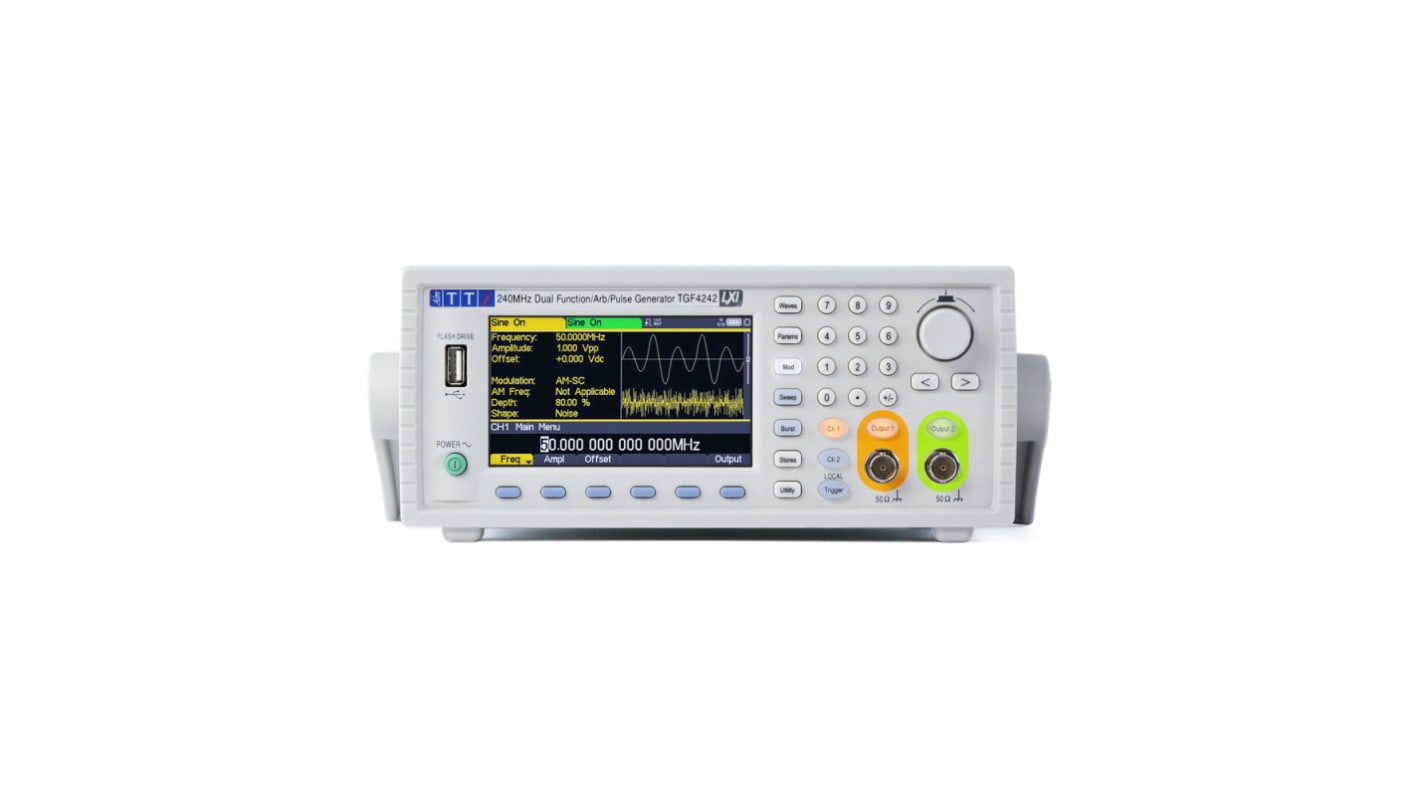

Aim-TTi TGF4242 Function Generator, 1μHz Min, 240MHz Max, FM Modulation, Variable Sweep

RS庫存編號:: 181-3543
製造零件編號:: TGF4242
製造商:: Aim-TTi

Aim-TTi TGF4242 Function Generator, 1μHz Min, 240MHz Max, FM Modulation, Variable Sweep

小計（1 件）*

HK$17,535.20

訂單超過 HK$250.00 免費送貨

有庫存

2 件準備從其他地點送貨
加上 2 件從 2025年12月19日起發貨
加上 3 件從 2026年2月13日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$17,535.20

* 參考價格

RS庫存編號:: 181-3543
製造零件編號:: TGF4242
製造商:: Aim-TTi

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Aim-TTi
	Maximum Frequency Range Sinewave	240MHz
	Number of Channels	2
	Maximum Frequency Range Square Pulse and Arbitrary Waveform	100 (Square & Pulse) MHz, 80 (Arbitrary)MHz
	Series	TGF4000
	Output Impedance	50Ω
	Minimum Frequency Range Sinewave	1µHz
	Variable Sweep	Yes
	Minimum Frequency Range Square Pulse and Arbitrary Waveform	1 μHz
	FM Modulation	Yes
	Time Base Accuracy	<±1 (Initial Settling Error) ppm, <±1(Oscillator Aging Rate) ppm, <1(Temperature Range) ppm
	Digital Frequency	Yes
	Maximum Frequency Range Triangle/Saw	5MHz
	Minimum Frequency Range Triangle/Saw	1µHz
	Internal and External Amplitude Modulation	Yes
	Operating Temperature Range	+5 → +40 °C
	Input Impedance	10 kΩ
	Frequency Range Square Pulse and Arbitrary Waveform	1 μHz → 100 MHz (Square & Pulse), 80 (Arbitrary) MHz
	Minimum Operating Temperature	+5°C
	Internal Linear and Log Sweep	Yes
	Maximum Operating Temperature	+40°C
	Model Number	TGF4242
	Length	250mm
	Interface Type	GPIB, LAN, USB
	Height	97mm
	Output Amplitude	10V Pk-Pk
	Dimensions	250 x 295 x 97mm
	Width	295mm
	Weight	3.1kg
	Digital Amplitude and Offset	Yes
	TTL Output Level	10V Pk-Pk

	選取全部
	品牌 Aim-TTi
	Maximum Frequency Range Sinewave 240MHz
	Number of Channels 2
	Maximum Frequency Range Square Pulse and Arbitrary Waveform 100 (Square & Pulse) MHz, 80 (Arbitrary)MHz
	Series TGF4000
	Output Impedance 50Ω
	Minimum Frequency Range Sinewave 1µHz
	Variable Sweep Yes
	Minimum Frequency Range Square Pulse and Arbitrary Waveform 1 μHz
	FM Modulation Yes
	Time Base Accuracy <±1 (Initial Settling Error) ppm, <±1(Oscillator Aging Rate) ppm, <1(Temperature Range) ppm
	Digital Frequency Yes
	Maximum Frequency Range Triangle/Saw 5MHz
	Minimum Frequency Range Triangle/Saw 1µHz
	Internal and External Amplitude Modulation Yes
	Operating Temperature Range +5 → +40 °C
	Input Impedance 10 kΩ
	Frequency Range Square Pulse and Arbitrary Waveform 1 μHz → 100 MHz (Square & Pulse), 80 (Arbitrary) MHz
	Minimum Operating Temperature +5°C
	Internal Linear and Log Sweep Yes
	Maximum Operating Temperature +40°C
	Model Number TGF4242
	Length 250mm
	Interface Type GPIB, LAN, USB
	Height 97mm
	Output Amplitude 10V Pk-Pk
	Dimensions 250 x 295 x 97mm
	Width 295mm
	Weight 3.1kg
	Digital Amplitude and Offset Yes
	TTL Output Level 10V Pk-Pk

COO (Country of Origin):: GB

Aim-TTi TGF4000 Series Function Generator, Digital Frequency, FM Modulation - TGF4242

This function generator by Aim-TTi is an essential tool for professionals in automation, electronics, and electrical industries. With a frequency range of up to 240 MHz and features like digital amplitude and offset control, it offers precise control over waveforms for a wide range of applications.

Features & Benefits

• Advanced digital amplitude and offset control for precise waveform generation
• Frequency range of 1 μHz to 240 MHz, suitable for a variety of applications
• Internal amplitude modulation for enhanced versatility
• GPIB, LAN, and USB interface options for seamless connectivity
• Variable sweep function for flexible waveform generation
• TTL output level of 10 V Pk-Pk, ensuring compatibility with a wide range of devices
• Dual-channel design for simultaneous waveform generation on two independent channels

Applications

• Signal testing in automation systems
• Waveform generation for electronic equipment calibration
• Frequency modulation for communication systems
• Waveform synthesis in research and development projects

Can it generate waveforms with high precision?

This function generator offers digital amplitude and offset control for precise waveform generation.

Will it work with my existing equipment?

With GPIB, LAN, and USB interface options, this function generator is designed for seamless integration with various devices.

Is it suitable for dual-channel applications?

Yes, it features dual-channel output, allowing for simultaneous waveform generation on two independent channels.

Can it handle high-frequency signals?

With a frequency range of up to 240 MHz, this function generator is suitable for high-frequency applications.

Does it support advanced modulation options?

Yes, this function generator features internal amplitude modulation for enhanced waveform versatility.
