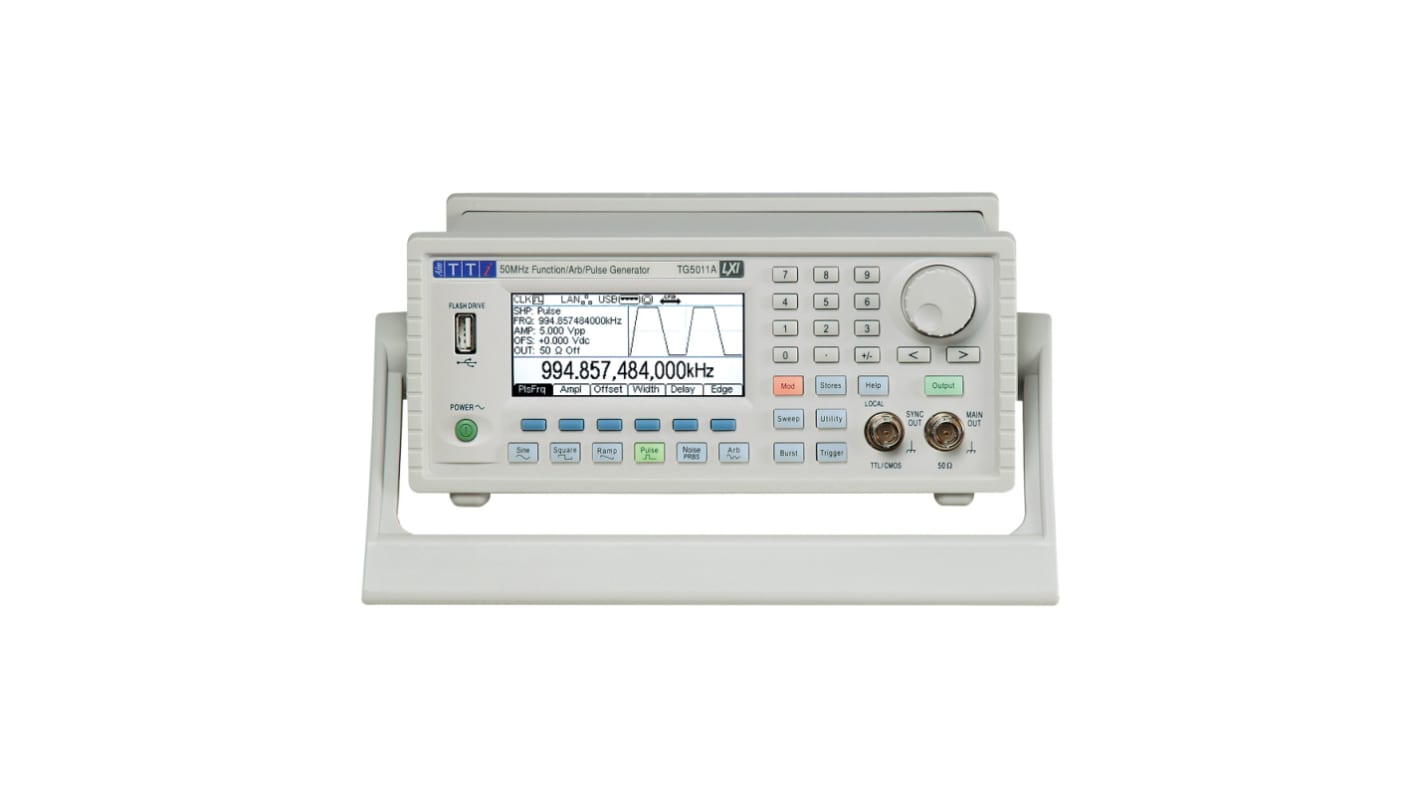

Aim-TTi TG5011A Function Generator, 1μHz Min, 50MHz Max, FM Modulation, Variable Sweep
- RS庫存編號:
- 800-3173
- 製造零件編號:
- TG5011A
- 製造商:
- Aim-TTi
2 現貨庫存，可於3工作日發貨。
單價 个
HK$9,611.47
單位 | 每單位 |
|---|---|
| 1 + | HK$9,611.47 |
- RS庫存編號:
- 800-3173
- 製造零件編號:
- TG5011A
- 製造商:
- Aim-TTi
豁免
- COO (Country of Origin):
- GB
Aim-TTi Function Generator, 10 kΩ Input Impedance, 270 x 250 x 97mm - TG5011A
This functional and versatile function generator by AIM & THURLBY THANDAR INSTRUMENTS is a reliable solution. With digital amplitude and offset capabilities, this function generator is a game-changer in the industry. It offers precise and reliable functionality for various applications in automation, electronics, electrical, and mechanical industries without compromising on performance.
Features & Benefits
• Offers a wide frequency range from 1 μHz to 50 MHz
• Internal and external modulation options for AM, FM, PM, PWM
• RS232 interface for seamless connectivity
• Variable sweep feature for flexible waveform generation
• TTL output level of 3V for compatible integration
• Lightweight and compact design for easy portability
• Internal and external modulation options for AM, FM, PM, PWM
• RS232 interface for seamless connectivity
• Variable sweep feature for flexible waveform generation
• TTL output level of 3V for compatible integration
• Lightweight and compact design for easy portability
Applications
• For modulation and signal generation in electronic circuits
• Ideal for testing and calibrating electronic equipment
• Suitable for educational purposes in electronics and engineering labs
• Ideal for testing and calibrating electronic equipment
• Suitable for educational purposes in electronics and engineering labs
Can it generate arbitrary waveforms?
Yes, this function generator can produce arbitrary waveforms with up to 128K points at 125MS/s.
Is the TG5011A suitable for frequency modulation?
Yes, It supports AM, FM, and PM modulation for versatile waveform generation.
Will it work with external devices?
Yes, it features an RS232 interface for seamless integration with external devices like PCs or controllers.
Attribute | Value |
|---|---|
| Maximum Frequency Range Sinewave | 50MHz |
| Number of Channels | 1 |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 10 MHz, 12.5 MHz, 50 MHz |
| Series | TGxA |
| Output Impedance | 50Ω |
| Minimum Frequency Range Sinewave | 1µHz |
| Variable Sweep | Yes |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz, 500 μHz |
| FM Modulation | Yes |
| Digital Frequency | Yes |
| Maximum Frequency Range Triangle/Saw | 1MHz |
| Minimum Frequency Range Triangle/Saw | 1µHz |
| Length | 270mm |
| Interface Type | RS232 |
| Model Number | TG5011A |
| Dimensions | 270 x 250 x 97mm |
| Internal Linear and Log Sweep | Yes |
| Output Amplitude | 20V Pk-Pk |
| Maximum Operating Temperature | +40°C |
| Internal and External Amplitude Modulation | Yes |
| Operating Temperature Range | +5 → +40 °C |
| Input Impedance | 10 kΩ |
| Height | 97mm |
| Minimum Operating Temperature | +5°C |
| Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz → 10 MHz, 1 μHz → 50 MHz, 500 μHz → 12.5 MHz |
| Digital Amplitude and Offset | Yes |
| TTL Output Level | 3V |
| Weight | 2.6kg |
| Width | 250mm |
