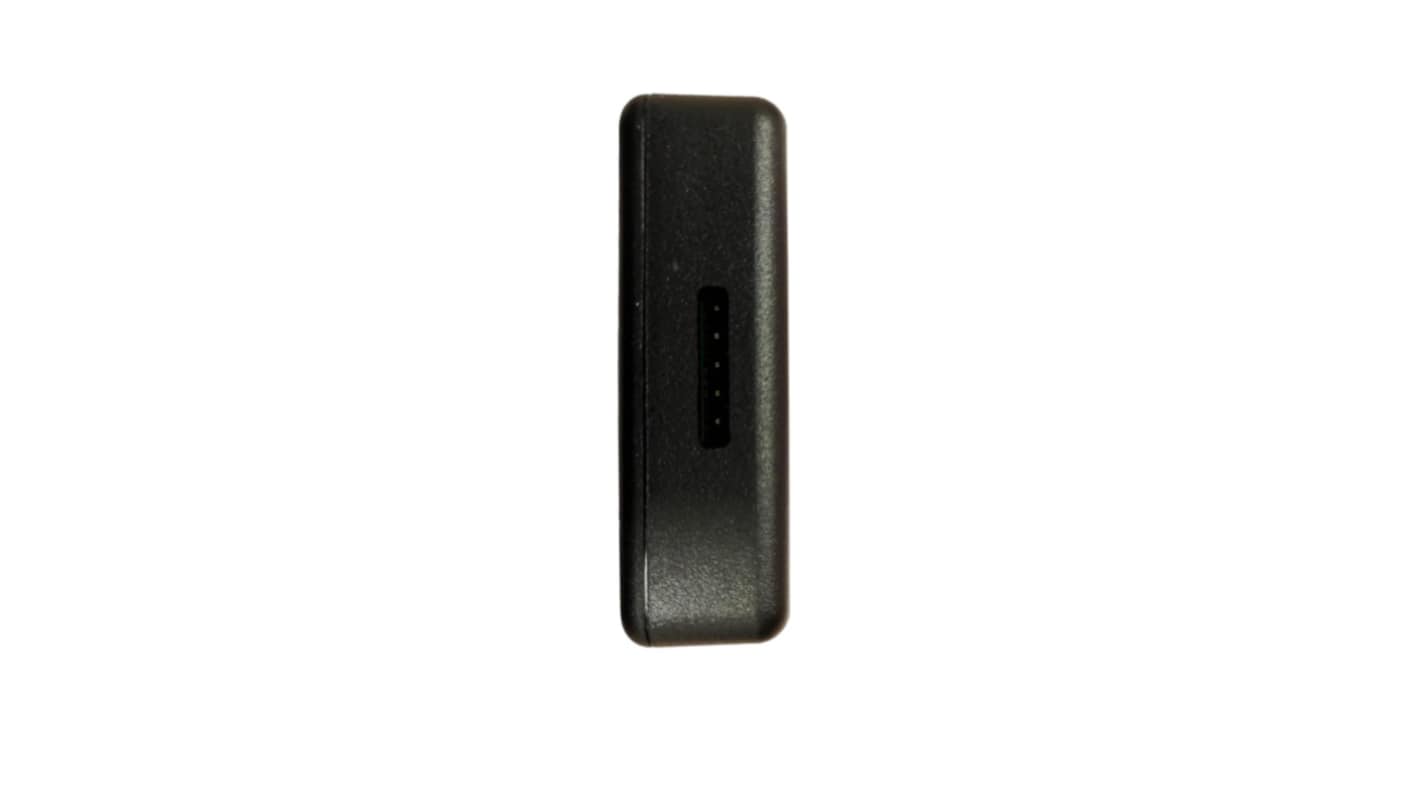

IKALOGIC SQ200 Logic Analyzer & Function Generator, 10 kHz Min, 200 MHz Max FM Modulation Variable Sweep
- RS庫存編號:
- 188-6968
- 製造零件編號:
- SQ200
- 製造商:
- IKALOGIC
小計（1 件）*
HK$1,925.90
訂單超過 HK$250.00 免費送貨
有庫存
- 3 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$1,925.90 |
* 參考價格
- RS庫存編號:
- 188-6968
- 製造零件編號:
- SQ200
- 製造商:
- IKALOGIC
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | IKALOGIC | |
| Product Type | Logic Analyzer & Function Generator | |
| Maximum Frequency Range Sinewave | 200MHz | |
| Number of Channels | 4 | |
| Output Impedance | 270Ω | |
| Minimum Frequency Range Sinewave | 10kHz | |
| Variable Sweep | Yes | |
| FM Modulation | Yes | |
| Maximum Frequency Range Square Pulse/Arbitrary Waveform | 50MHz | |
| Minimum Frequency Range Square Pulse/Arbitrary Waveform | 10kHz | |
| Time Base Accuracy | 50 ppm | |
| Digital Frequency | Yes | |
| Length | 50mm | |
| Standards/Approvals | IEC/EN | |
| Weight | 80g | |
| Width | 50mm | |
| Height | 15mm | |
| Model Number | SQ200 | |
| TTL Output Level | 5V | |
| Minimum Operating Temperature | -10°C | |
| Internal Linear and Log Sweep | Yes | |
| Input Impedance | 100kΩ | |
| Maximum Operating Temperature | 40°C | |
| CMOS Output Level | 1.6 to 5 V | |
| Interface Type | USB | |
| 選取全部 | ||
|---|---|---|
品牌 IKALOGIC | ||
Product Type Logic Analyzer & Function Generator | ||
Maximum Frequency Range Sinewave 200MHz | ||
Number of Channels 4 | ||
Output Impedance 270Ω | ||
Minimum Frequency Range Sinewave 10kHz | ||
Variable Sweep Yes | ||
FM Modulation Yes | ||
Maximum Frequency Range Square Pulse/Arbitrary Waveform 50MHz | ||
Minimum Frequency Range Square Pulse/Arbitrary Waveform 10kHz | ||
Time Base Accuracy 50 ppm | ||
Digital Frequency Yes | ||
Length 50mm | ||
Standards/Approvals IEC/EN | ||
Weight 80g | ||
Width 50mm | ||
Height 15mm | ||
Model Number SQ200 | ||
TTL Output Level 5V | ||
Minimum Operating Temperature -10°C | ||
Internal Linear and Log Sweep Yes | ||
Input Impedance 100kΩ | ||
Maximum Operating Temperature 40°C | ||
CMOS Output Level 1.6 to 5 V | ||
Interface Type USB | ||
- COO (Country of Origin):
- FR
Get quick insight into your serial communication application
Software lets you view decoded signals in many different levels of abstractions (Packets or detailed bits and bytes)
Device performance do not depend on USB connection bandwidth
Software running on Windows, macOS and Linux
Software is intuitive and very easy to use
Generate test patterns to stimulate a system without any other equipment
applications
Embedded systems
Firmware development and debugging
Educational work
Serial protocols analysis, like I2C, SPI, UART or 1-Wire (non exhaustive list)
Reverse engineering
