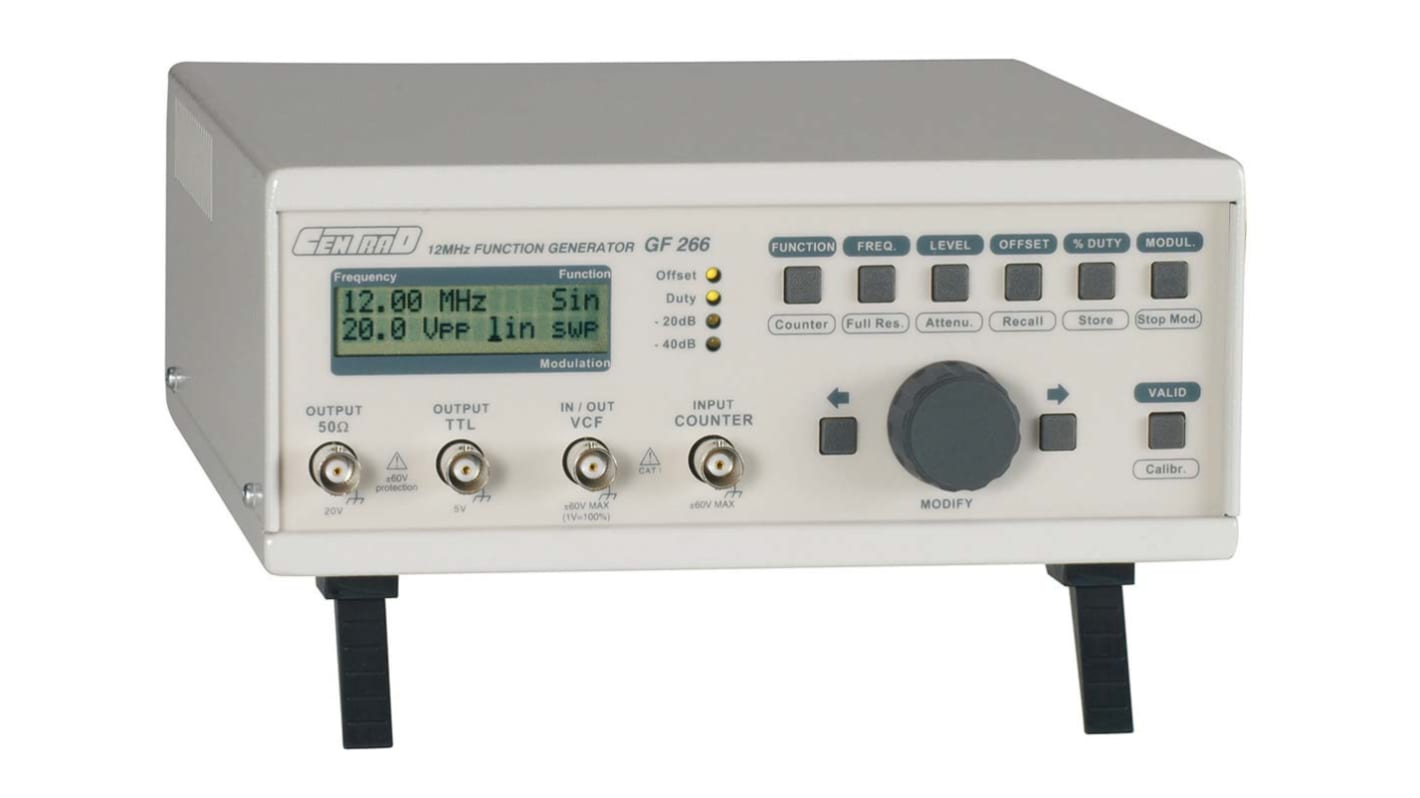

ELC GF266 Function Generator, 11 μHz Min, 12 MHz Max FM Modulation

RS庫存編號:: 454-6689
製造零件編號:: GF266
製造商:: ELC

ELC GF266 Function Generator, 11 μHz Min, 12 MHz Max FM Modulation

查看所有Function Generators

小計（1 件）*

HK$5,088.60

添加 1 件件可免費送貨

下方訂單 HK$250.00（不含稅）成本 HK$50.00。

有庫存

2 件準備從其他地點送貨
加上 11 件從 2026年3月20日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$5,088.60

* 參考價格

RS庫存編號:: 454-6689
製造零件編號:: GF266
製造商:: ELC

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	ELC
	Maximum Frequency Range Sinewave	12MHz
	Product Type	Function Generator
	Minimum Frequency Range Sinewave	11μHz
	FM Modulation	Yes
	Time Base Accuracy	±50 ppm
	Digital Frequency	Yes
	Height	90mm
	Width	220 mm
	Standards/Approvals	No
	Weight	2.5kg
	Length	240mm
	Maximum Operating Temperature	40°C
	Internal and External Amplitude Modulation	Yes
	TTL Output Level	5V
	Output Amplitude	20 V Pk-Pk
	Minimum Operating Temperature	5°C
	Digital Amplitude and Offset	Yes
	Interface Type	RS232
	Model Number	GF266
	Internal Linear and Log Sweep	Yes

	選取全部
	品牌 ELC
	Maximum Frequency Range Sinewave 12MHz
	Product Type Function Generator
	Minimum Frequency Range Sinewave 11μHz
	FM Modulation Yes
	Time Base Accuracy ±50 ppm
	Digital Frequency Yes
	Height 90mm
	Width 220 mm
	Standards/Approvals No
	Weight 2.5kg
	Length 240mm
	Maximum Operating Temperature 40°C
	Internal and External Amplitude Modulation Yes
	TTL Output Level 5V
	Output Amplitude 20 V Pk-Pk
	Minimum Operating Temperature 5°C
	Digital Amplitude and Offset Yes
	Interface Type RS232
	Model Number GF266
	Internal Linear and Log Sweep Yes

COO (Country of Origin):: FR

Specifications

Technology: Linear

Class: I

Primary Voltage Rating: 230V±10%

Safety Standards

EN 61010-1

EMC Standard

EN 61326-1

RS232 GF266 function generator 11μHz → 12MHz, protected

Digital synthesis function generator featuring very high frequency accuracy (0.005%) with 4- or 10-digit display.

Direct menu to access all functions and simple adjustment of all parameters using the thumbwheel and selector buttons.

Sine distortion below 0.1%.

Cyclic ratio: adjustable from 10 → 90%.

TTL and 50 Ω output protected against reverse power surges of up to ±60 V.

Offset voltage independent of the attenuator.

Internal linear or logarithmic sweep over the full range of frequencies.

Internal and external modulation: AM, FM, FSK, PSK.

External frequency counter: 0.8 Hz → 100 MHz.

Memory stores 14 configurations and settings.

Standards

Safety: EN61010-1 cat.II pollution degree 2
EMC: EN50082-1 and EN55011
