RS PRO Red 0.33mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 100m, PVC Insulation
- RS庫存編號:
- 873-9970
- 製造商:
- RS PRO
可享批量折扣
小計(1 卷,共 100 米)*
HK$236.56
訂單超過 HK$250.00 免費送貨
有庫存
- 28 件準備從其他地點送貨
- 加上 120 件從 2026年4月06日 起發貨
**需要更多嗎?**輸入您需要的數量,然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
卷 | 每卷 | 每米* |
|---|---|---|
| 1 - 49 | HK$236.56 | HK$2.366 |
| 50 + | HK$232.37 | HK$2.324 |
* 參考價格
- RS庫存編號:
- 873-9970
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Cross Sectional Area | 0.33mm² | |
| Sheath Colour | Red | |
| American Wire Gauge | 22 AWG | |
| Core Strands | 7/0.25 mm | |
| Length | 100m | |
| Insulation Material | PVC | |
| Voltage Rating | 300 V | |
| Outer Diameter | 1.6mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | 0°C | |
| Conductor Material | Tinned Copper | |
| Wire Style | UL1430 | |
| Standards Met | UL1430 | |
| Series | 1430 | |
| Insulation Wall Thickness | 1.6mm | |
| Number of Strands | 7 | |
| Size of Strands | 0.254mm | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Cross Sectional Area 0.33mm² | ||
Sheath Colour Red | ||
American Wire Gauge 22 AWG | ||
Core Strands 7/0.25 mm | ||
Length 100m | ||
Insulation Material PVC | ||
Voltage Rating 300 V | ||
Outer Diameter 1.6mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature 0°C | ||
Conductor Material Tinned Copper | ||
Wire Style UL1430 | ||
Standards Met UL1430 | ||
Series 1430 | ||
Insulation Wall Thickness 1.6mm | ||
Number of Strands 7 | ||
Size of Strands 0.254mm | ||
- COO (Country of Origin):
- CN

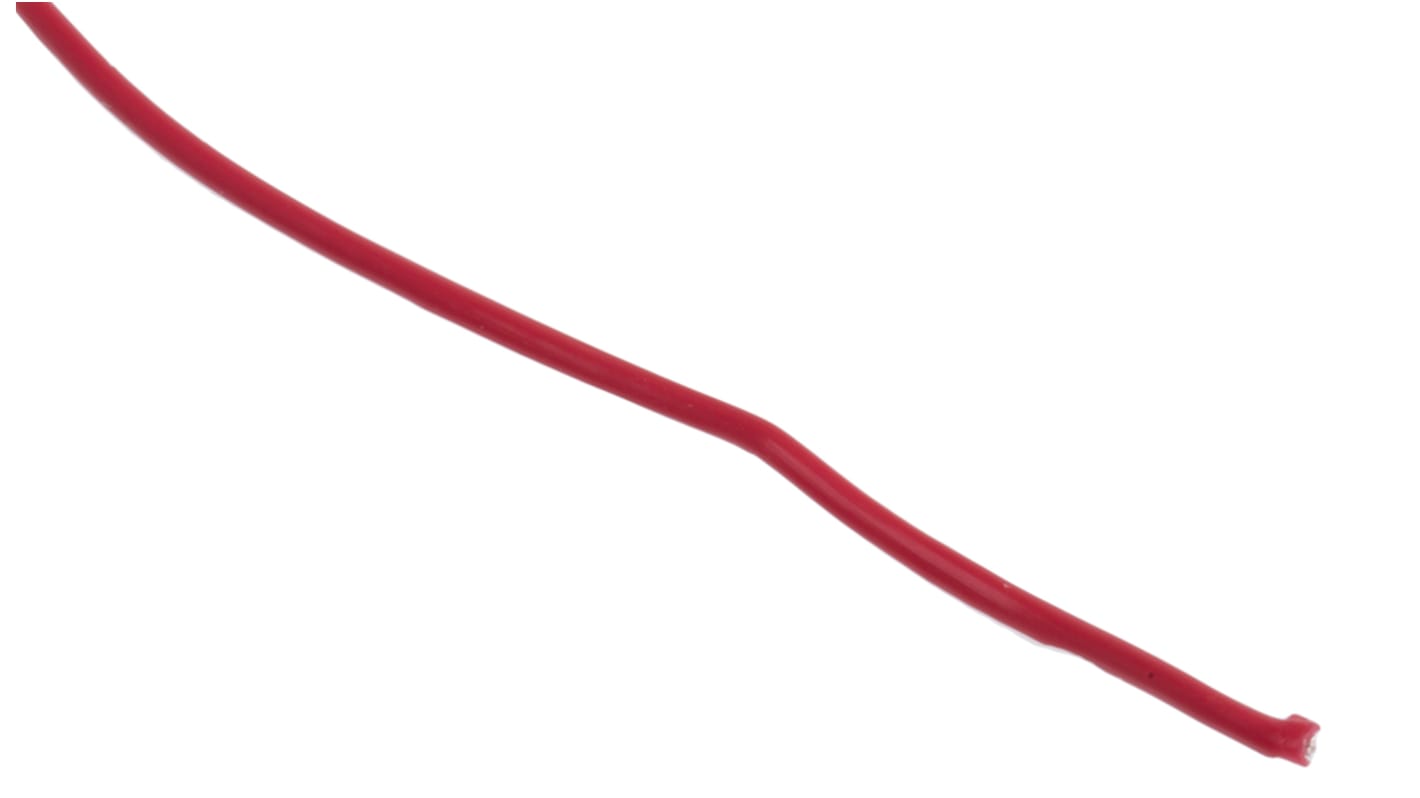

RS PRO Red, 0.33 mm² Hook Up Wire, 100 m
If you need reliable internal wiring for an electronic device, this RS PRO hook-up wire will do the job. It has conductors made of highly conductive tinned copper to give you strong and reliable electrical transmission. This material is also resistant to corrosion, so your wire will last a long time.
The wire features polyvinyl chloride (PVC) insulation for durability and high electrical and thermal resistance. This makes the cable safe for use at temperatures of up to +105°C, so it's a good choice for high-temperature industrial environments. It's supplied unterminated, so you can easily customise it according to your needs.
This product complies with Restriction of Hazardous Substances (RoHS) standards, so it contains only trace amounts of any harmful materials. It also meets the Underwriters' Laboratories UL 1581 and UL 758 standards for safety and efficacy.
The wire features polyvinyl chloride (PVC) insulation for durability and high electrical and thermal resistance. This makes the cable safe for use at temperatures of up to +105°C, so it's a good choice for high-temperature industrial environments. It's supplied unterminated, so you can easily customise it according to your needs.
This product complies with Restriction of Hazardous Substances (RoHS) standards, so it contains only trace amounts of any harmful materials. It also meets the Underwriters' Laboratories UL 1581 and UL 758 standards for safety and efficacy.
Features and Benefits
- Wire size of 22 American Wire Gauge (AWG)
- Seven core strands of 0.25 mm
- Cross-sectional area of 0.33 mm²
- Polyvinyl chloride (PVC) insulation material
- Tinned copper conductor material
- Insulation wall thickness of 1.6 mm
- Length of 100 m
- Outer diameter of 1.6 mm
- Red sheath colour
- Maximum operating temperature of +105°C
- Minimum operating temperature of 0°C
- Voltage rating of 300 V
- UL1430 wire style
- Underwriters' Laboratory UL 1430 compliant
