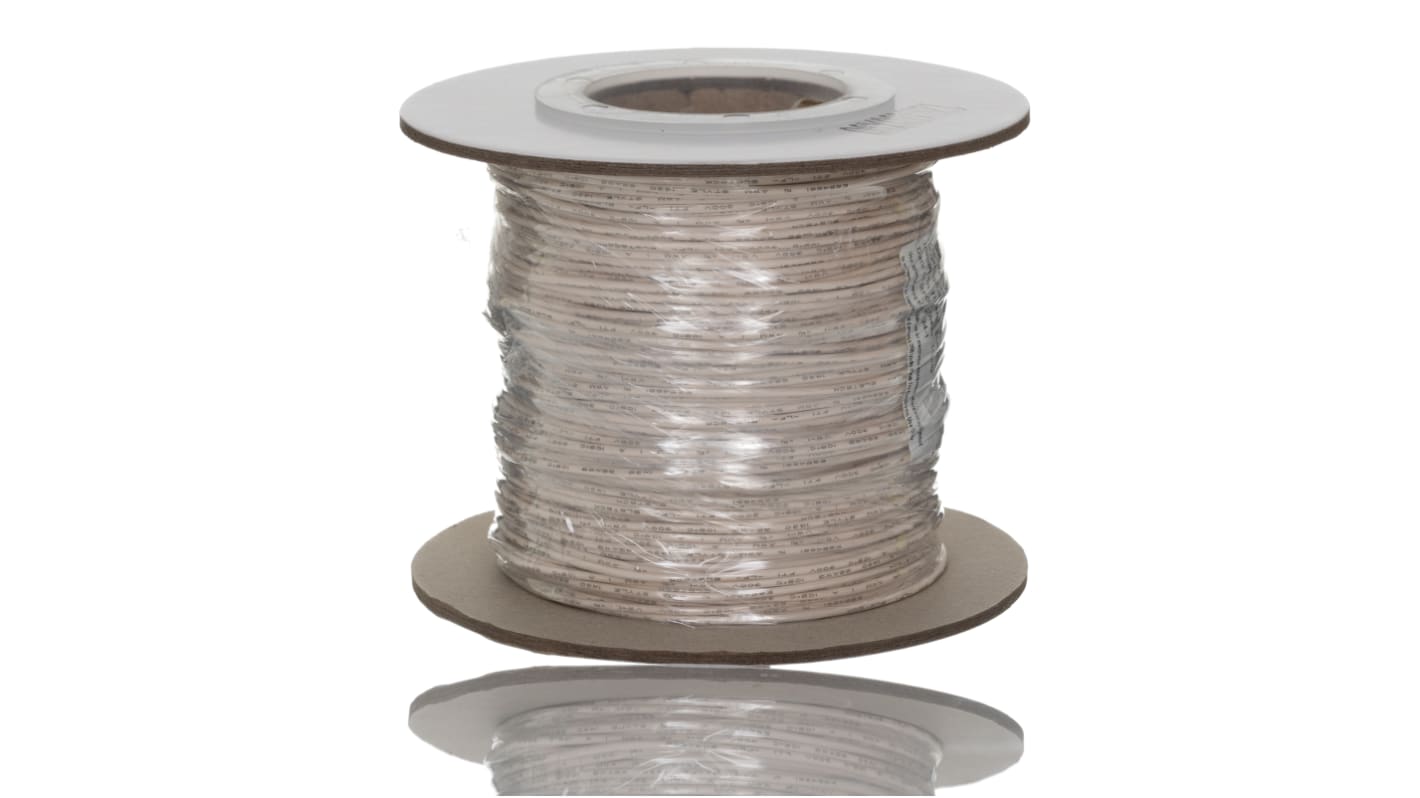

RS PRO White 0.33mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 100m, PVC Insulation
- RS庫存編號:
- 873-9977
- 製造商:
- RS PRO
可享批量折扣
小計（1 卷，共 100 米）*
HK$208.70
訂單超過 HK$250.00 免費送貨
有庫存
- 113 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
卷 | 每卷 | 每米* |
|---|---|---|
| 1 - 49 | HK$208.70 | HK$2.087 |
| 50 + | HK$201.50 | HK$2.015 |
* 參考價格
- RS庫存編號:
- 873-9977
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Cross Sectional Area | 0.33mm² | |
| Sheath Colour | White | |
| American Wire Gauge | 22 AWG | |
| Core Strands | 7/0.25 mm | |
| Length | 100m | |
| Insulation Material | PVC | |
| Outer Diameter | 1.6mm | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | 0°C | |
| Conductor Material | Tinned Copper | |
| Wire Style | UL1430 | |
| Standards Met | UL1430 | |
| Series | 1430 | |
| Insulation Wall Thickness | 1.6mm | |
| Number of Strands | 7 | |
| Size of Strands | 0.254mm | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Cross Sectional Area 0.33mm² | ||
Sheath Colour White | ||
American Wire Gauge 22 AWG | ||
Core Strands 7/0.25 mm | ||
Length 100m | ||
Insulation Material PVC | ||
Outer Diameter 1.6mm | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature 0°C | ||
Conductor Material Tinned Copper | ||
Wire Style UL1430 | ||
Standards Met UL1430 | ||
Series 1430 | ||
Insulation Wall Thickness 1.6mm | ||
Number of Strands 7 | ||
Size of Strands 0.254mm | ||
- COO (Country of Origin):
- CN
RS PRO White, 0.33 mm² Hook Up Wire, 100 m
If you need reliable internal wiring for an electronic device, the RS PRO hook-up wire is an excellent choice. Designed with highly conductive tinned copper conductors, it ensures strong and reliable electrical transmission. The tinned copper is resistant to corrosion, extending the wire's lifespan.
The wire is insulated with durable polyvinyl chloride (PVC), offering high electrical and thermal resistance. This makes it safe for use in high-temperature industrial environments, withstanding temperatures up to +105°C. Supplied unterminated, it can be easily customized to fit your specific needs.
This RS PRO hook-up wire complies with Restriction of Hazardous Substances (RoHS) standards, ensuring minimal harmful material content. It also meets the stringent safety and efficacy requirements of Underwriters' Laboratories UL 1581 and UL 758 standards.
