FTDI Chip RS232 USB A Female to D-sub, 9 Pin Male Converter Cable

查看所有Interface Adapters & Converters
可享批量折扣

小計（1 件）*

HK$433.40

Add to Basket
選擇或輸入數量
有庫存
  • 19 件準備從其他地點送貨
  • 加上 100 件從 2026年2月25日 起發貨
  • 加上 100 件從 2026年4月29日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 1HK$433.40
2 - 9HK$424.70
10 - 19HK$416.20
20 +HK$407.80

* 參考價格

RS庫存編號:
687-7812
Distrelec 貨號:
304-00-936
製造零件編號:
UT232R-500
製造商:
FTDI Chip
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

FTDI Chip

Bus Type

RS232

Connector A

USB A

Connector A Gender

Female

Connector B

D-sub, 9 Pin

Connector B Gender

Male

USB Standard

USB 2.0

COO (Country of Origin):
TH

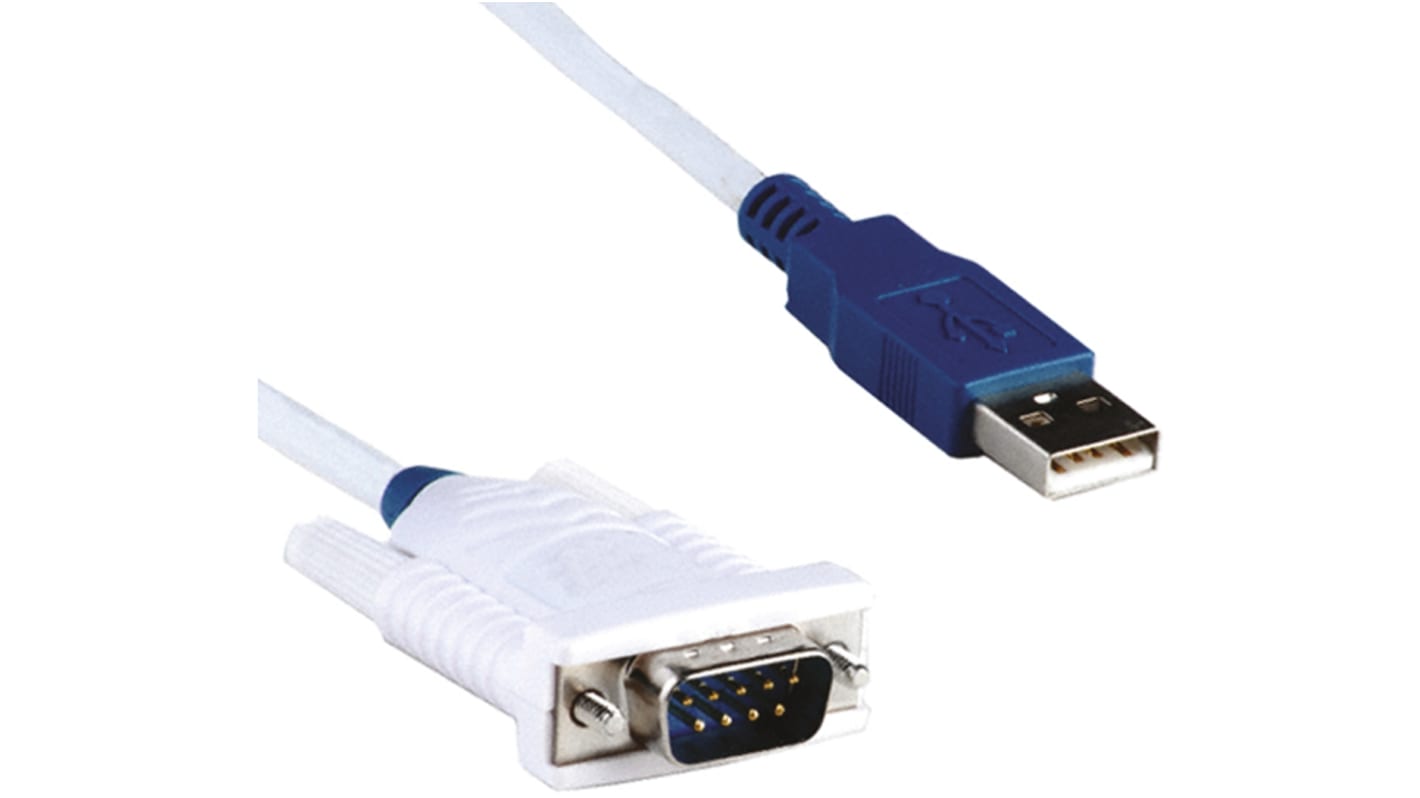

FTDI Chip USB To Rs232 Cable


The FTDI Chip USB to RS232 cable is a family of communication devices. This model provides a simple method of adapting legacy serial devices with RS232 interfaces to modern USB ports. This adapter contains a small internal electronic circuit board, which utilises the FTDI FT232R, mounted inside a rugged plastic enclosure capable of withstanding industrial temperature ranges. The integrated electronics also include RS232 line drivers to provide true signal levels. This incorporates a standard USB-A device connector for connection to an upstream host or hub port. The connector moulding also includes thumbscrews for locking the DB9 connector to the mating half when assembled. It requires USB device drivers, which are used to make the UT232R appear as a Virtual COM Port (VCP). This allows existing serial communications software such as HyperTerminal to exchange data through an adaptor to a legacy RS232 peripheral device.

Features and Benefits


Adds one RS-232 serial port by connecting to USB
Special high gloss white finish enclosure design
Enhanced RS232 transceiver gives serial port speed of up to 1MBaud
Integral 5m USB cable with moulded strain relief
Works with USB 1.1 & 2.0 Host and Hub ports
Industry Standard FTDI chip set & device drivers for maximum compatibility
Microsoft Windows WHQL-certified, Mac OS X, Linux and Windows CE device drivers
Installs as a standard Windows COM port
Quality 4-layer PCB design
Easy plug and play installation and RS-232 device connection
RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
Powered by USB port, no external power adapter required
Operating temperature ranges between -20°C and 80°C

Applications


USB to RS232 converter
Upgrading legacy peripherals to USB
USB audio and low bandwidth video data transfer
PDA to USB data transfer
USB smart card readers
USB instrumentation
USB industrial control
USB MP3 player interface
USB flash card reader/writers
Set top box PC - USB interface
USB digital camera interface
USB hardware modems
USB wireless modems
USB bar code readers
USB software/hardware encryption dongles

Certifications


ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
CE
FCC certified
