可享批量折扣
小計（1 卷，共 2500 件）*
HK$24,752.50
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 | 每卷* |
|---|---|---|
| 2500 - 10000 | HK$9.901 | HK$24,752.50 |
| 12500 + | HK$9.505 | HK$23,762.50 |
* 參考價格
- RS庫存編號:
- 219-4621
- 製造零件編號:

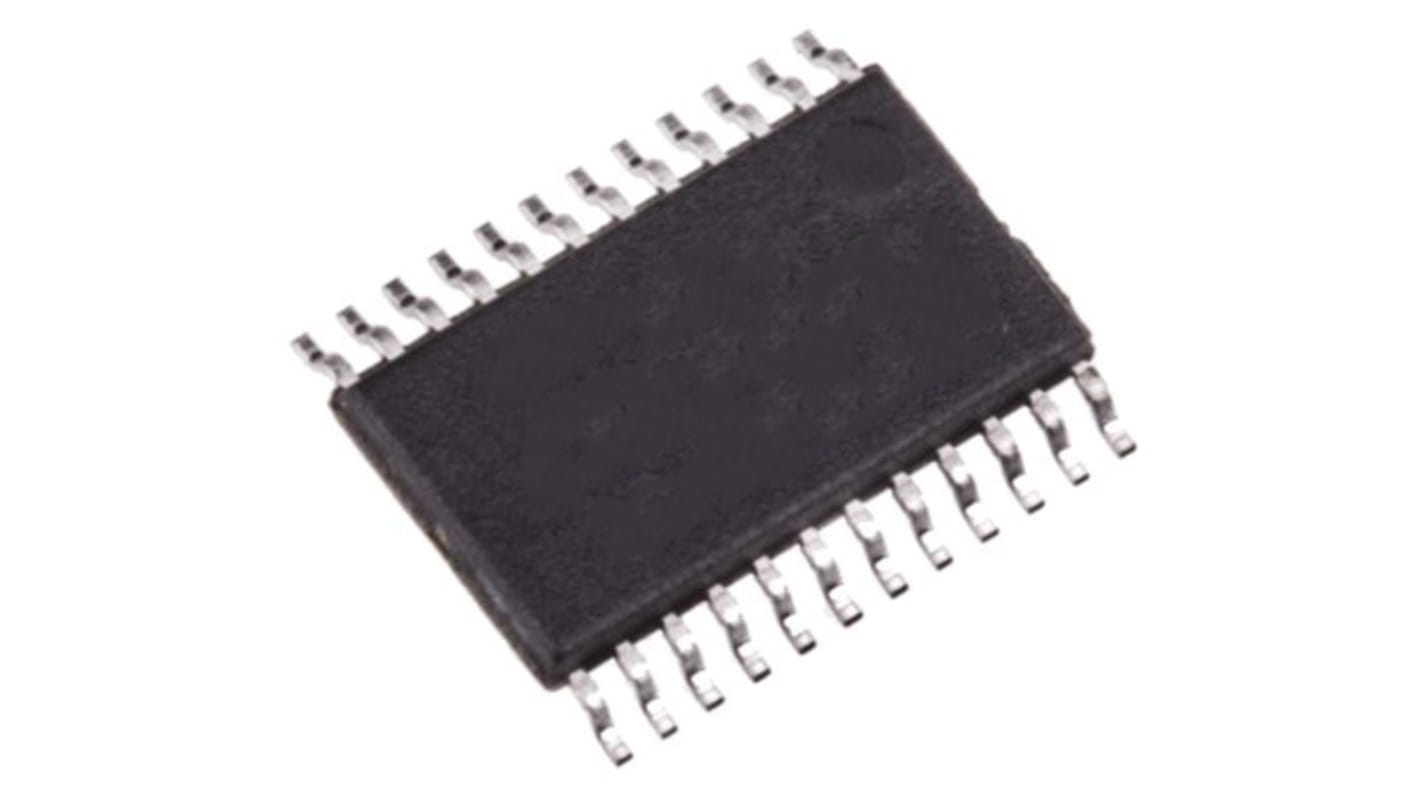

- PCA9548APW,118
- 製造商:
- NXP
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | NXP | |
| Product Type | I/O Expander | |
| Number of I/O Channels | 8 | |
| Package Type | TSSOP | |
| Clock Frequency | 400kHz | |
| Mount Type | Surface | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 2.3V | |
| Pin Count | 24 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.1mm | |
| Standards/Approvals | No | |
| Series | PCA9548 | |
| Length | 7.9mm | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 NXP | ||
Product Type I/O Expander | ||
Number of I/O Channels 8 | ||
Package Type TSSOP | ||
Clock Frequency 400kHz | ||
Mount Type Surface | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 2.3V | ||
Pin Count 24 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.1mm | ||
Standards/Approvals No | ||
Series PCA9548 | ||
Length 7.9mm | ||
Automotive Standard No | ||
The NXP PCA9548A is an octal bidirectional translating switch controlled via the I2C bus. The SCL or SDA upstream pair fans out to eight downstream pairs, or channels. Any individual SCx or SDx channel or combination of channels can be selected, determined by the contents of the programmable control register.
No glitch on power-up
Supports hot insertion
Low standby current
