暫時無法供應
抱歉，我們不知道何時會到貨。

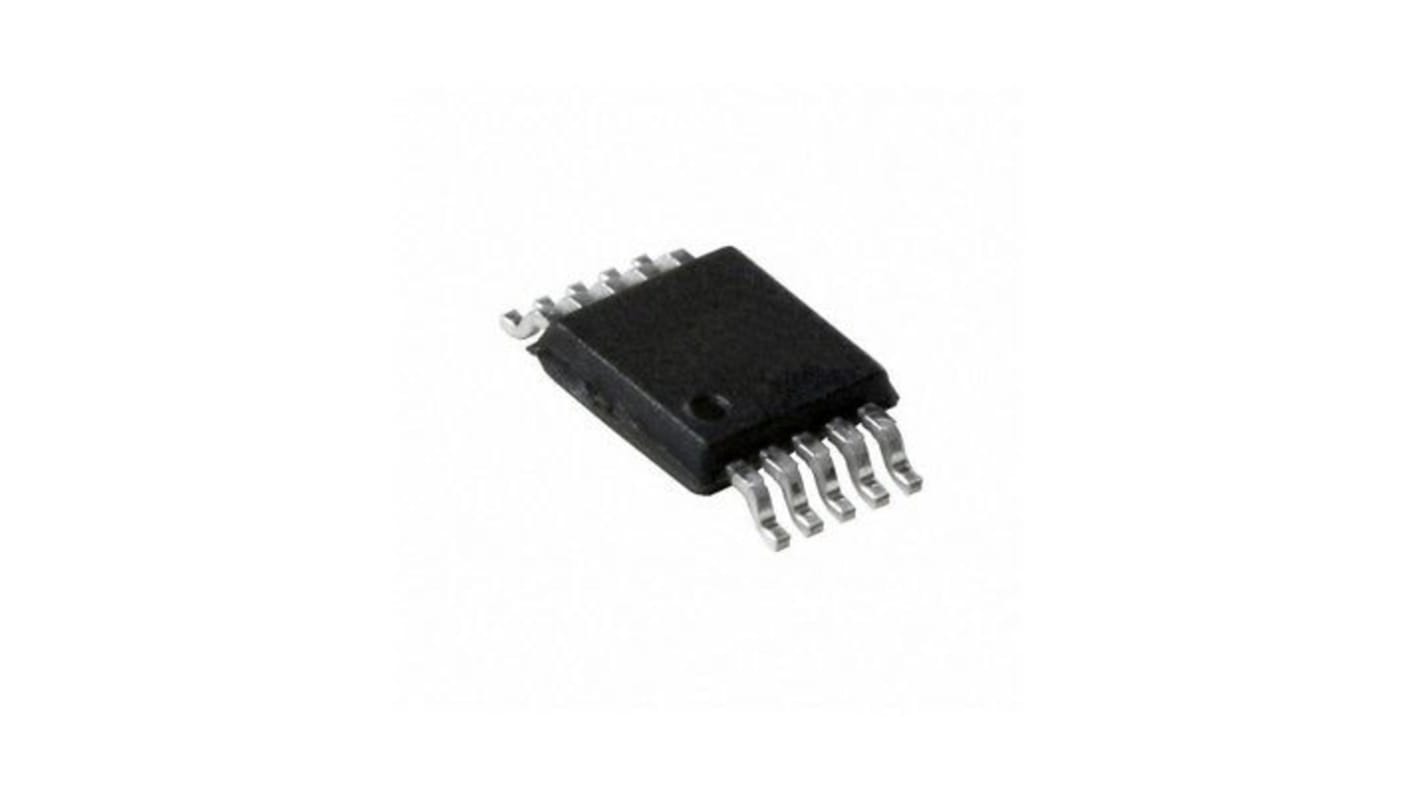

- RS庫存編號:
- 219-4625
- 製造零件編號:
- PCA9615DPJ
- 製造商:
- NXP
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | NXP | |
| Product Type | I/O Expander | |
| Number of I/O Channels | 2 | |
| Package Type | TSSOP | |
| Clock Frequency | 1MHz | |
| Mount Type | Surface | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 2.3V | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 10 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Height | 1.1mm | |
| Length | 3.1mm | |
| Series | PCA9615 | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 NXP | ||
Product Type I/O Expander | ||
Number of I/O Channels 2 | ||
Package Type TSSOP | ||
Clock Frequency 1MHz | ||
Mount Type Surface | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 2.3V | ||
Minimum Operating Temperature -40°C | ||
Pin Count 10 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Height 1.1mm | ||
Length 3.1mm | ||
Series PCA9615 | ||
Automotive Standard No | ||
The NXP PCA9615 is a Fast mode Plus (Fm+) SMBus or I2C bus buffer that extends the normal single ended SMBus or I2C bus through electrically noisy environments using a differential SMBus or I2C bus (dI2C) physical layer, which is transparent to the SMBus or I2C bus protocol layer. It consists of two single ended to differential driver channels for the SCL (serial clock) and SDA (serial data).
Lock-up free operation
Supports arbitration and clock stretching across the dI2C-bus buffers
Powered-off and powering-up high-impedance I2C-bus pins
