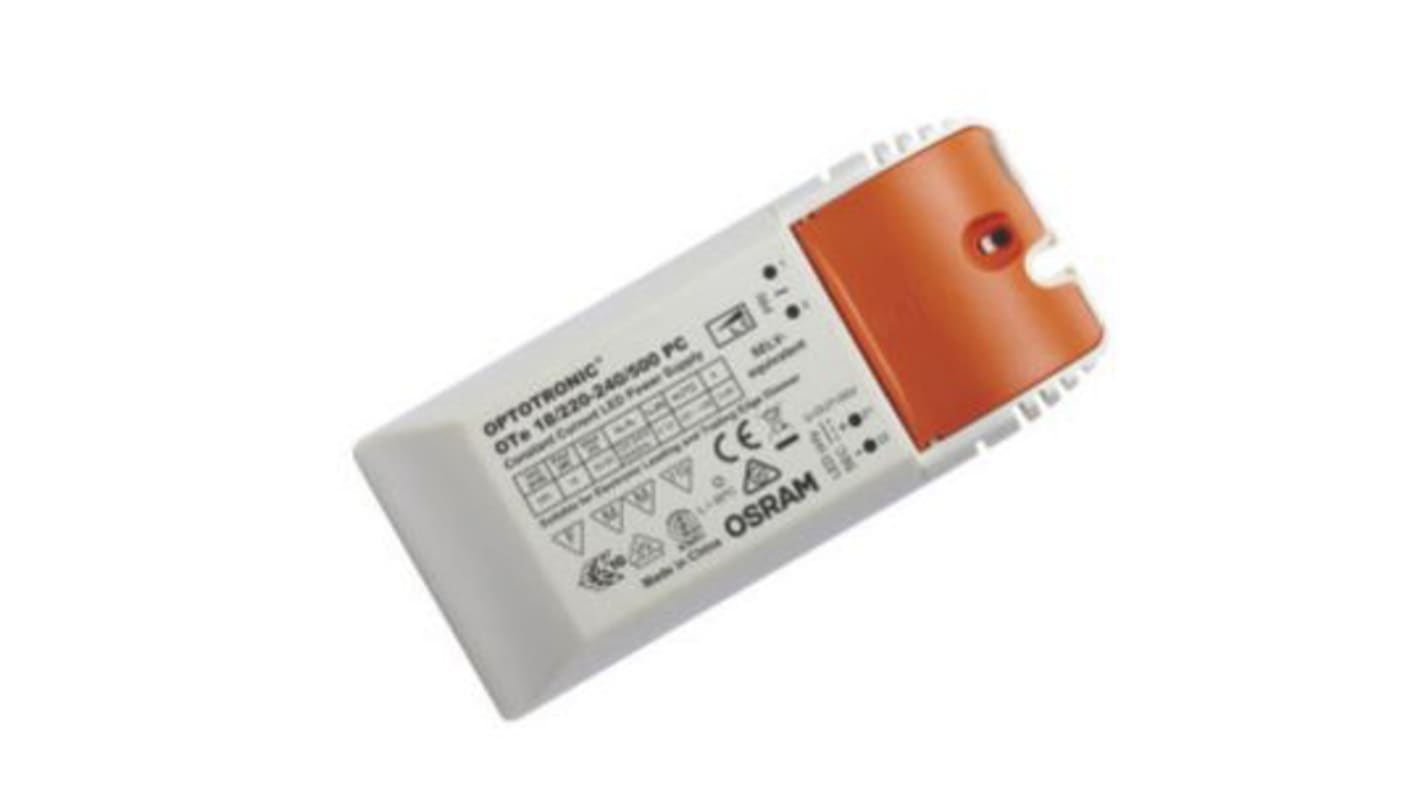

Osram IP20 1 Output LED Driver, 18V, 36 V, 18 W, 500mA Leading Edge LED Driver
- RS庫存編號:
- 171-1608
- 製造零件編號:
- OTE 18/220-240/500 PC
- 製造商:
- Osram
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 盒，共 20 件）*
HK$4,299.30
訂單超過 HK$250.00 免費送貨
有庫存
- 180 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每盒* |
|---|---|---|
| 20 - 20 | HK$214.965 | HK$4,299.30 |
| 40 - 60 | HK$209.585 | HK$4,191.70 |
| 80 + | HK$206.365 | HK$4,127.30 |
* 參考價格
- RS庫存編號:
- 171-1608
- 製造零件編號:
- OTE 18/220-240/500 PC
- 製造商:
- Osram
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Osram | |
| Product Type | LED Driver | |
| Output Voltage | 18V, 36V | |
| Maximum Output Power | 18W | |
| Input Voltage | 198V ac, 264V ac | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Dimming Operation | Leading Edge | |
| Terminal Type | Screw | |
| Input Voltage Type | AC | |
| IP Rating | IP20 | |
| Driver Current | 500mA | |
| LED Voltage | 198V ac, 264V ac | |
| Operating Modes | Constant Current | |
| Series | OTE | |
| Standards/Approvals | CB, CE, CISPR 15, ENEC 10, IEC 61000-3-2, IEC 61000-3-3, IEC 61347-1, IEC 61347-2-13, IEC 61547, IEC 62384, VDE | |
| Number of Outputs | 1 | |
| Configuration | Sealed | |
| Power Dissipation | 3.5W | |
| Primary Type | AC-DC | |
| 選取全部 | ||
|---|---|---|
品牌 Osram | ||
Product Type LED Driver | ||
Output Voltage 18V, 36V | ||
Maximum Output Power 18W | ||
Input Voltage 198V ac, 264V ac | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Dimming Operation Leading Edge | ||
Terminal Type Screw | ||
Input Voltage Type AC | ||
IP Rating IP20 | ||
Driver Current 500mA | ||
LED Voltage 198V ac, 264V ac | ||
Operating Modes Constant Current | ||
Series OTE | ||
Standards/Approvals CB, CE, CISPR 15, ENEC 10, IEC 61000-3-2, IEC 61000-3-3, IEC 61347-1, IEC 61347-2-13, IEC 61547, IEC 62384, VDE | ||
Number of Outputs 1 | ||
Configuration Sealed | ||
Power Dissipation 3.5W | ||
Primary Type AC-DC | ||
- COO (Country of Origin):
- CN
CC Power Supplies with Phasecut
The PhaseCut family of constant current dimmable LED drivers from Osram are designed for indoor applications. They come in a very compact housing which makes them ideal for applications where space is limited. The PhaseCut CC power supplies are compatible with most leading-edge and trailing-edge phase dimmers.
Their PhaseCut functionality, also known as phase control (PC), is a form of power control through pulse-width modulation (PWM).
The E-style clamp can be ordered separately for independent mounting.
Note
Osram OT Cable Clamp E-Style for independent mounting is available for purchasing, separately. The OPTOTRONIC cable clamp is on RS Stock No. 171-1597.
