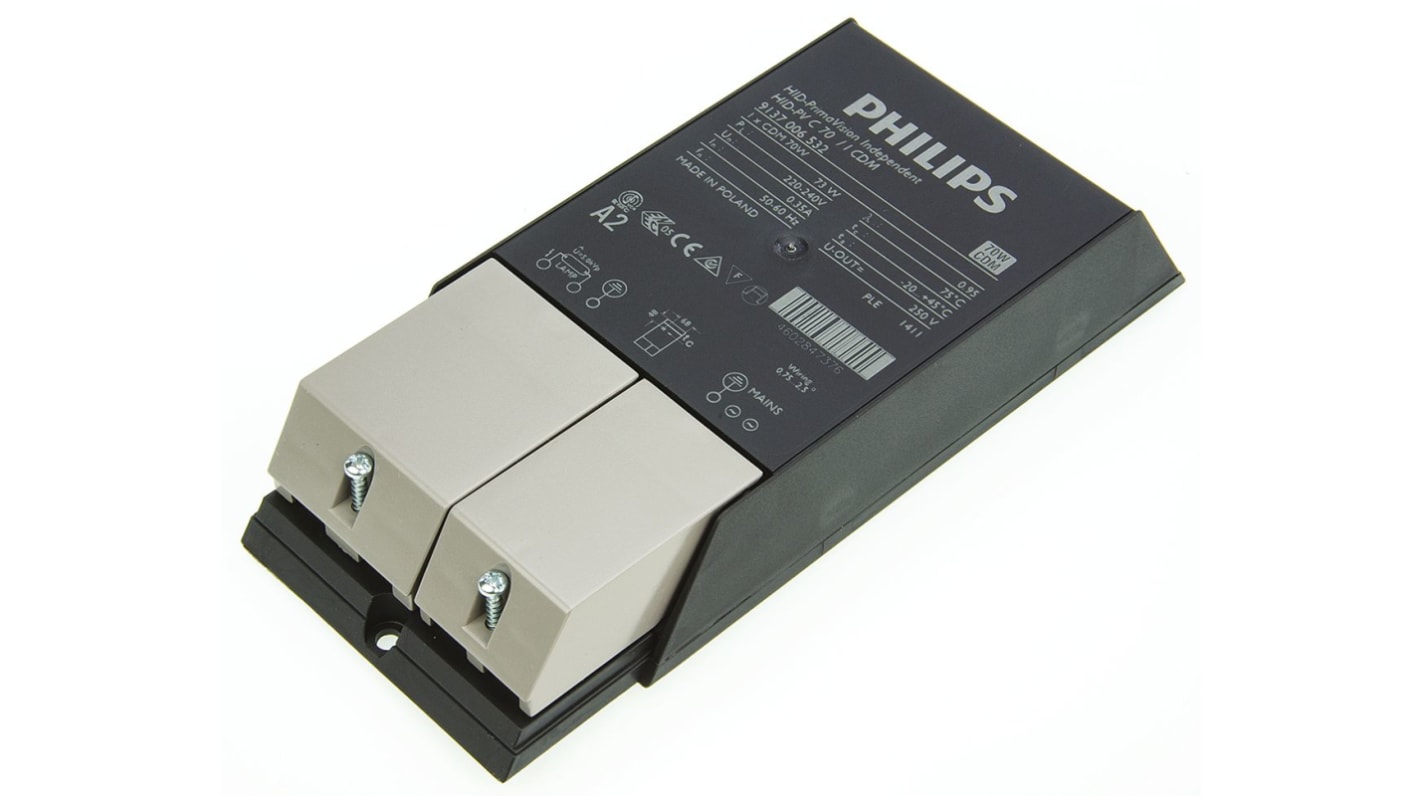

Philips Lighting Lighting Ballast Electronic Ceramic Metal Halide, 220V, 240 V
- RS庫存編號:
- 544-349
- 製造零件編號:
- HID-PV C 070I
- 製造商:
- Philips Lighting
小計（1 件）*
HK$498.20
訂單超過 HK$250.00 免費送貨
有庫存
- 13 件準備從其他地點送貨
- 加上 9 件從 2026年9月15日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$498.20 |
* 參考價格
- RS庫存編號:
- 544-349
- 製造零件編號:
- HID-PV C 070I
- 製造商:
- Philips Lighting
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Philips Lighting | |
| Product Type | Lighting Ballast | |
| Number of Lamps | 1 | |
| Ballast Type | Electronic | |
| Compatible Lamp Type | Ceramic Metal Halide | |
| Voltage | 220, 240V | |
| Dimmable | No | |
| High Frequency | Yes | |
| Length | 188mm | |
| Compatible Lamp Designation | CDM | |
| Minimum Operating Temperature | -20°C | |
| Lighting Power | 70 W | |
| Maximum Operating Temperature | 45°C | |
| Standards/Approvals | EN 61000-3-2, IEC 928-13, ISO 14001, EN 61347-2-12, EN 61547, IEC 68-2-29 Eb, IEC 68-2-6 Fc, ENEC, ISO 9000:2000 | |
| Width | 82.7mm | |
| Height | 35mm | |
| Series | PrimaVision Compact | |
| 選取全部 | ||
|---|---|---|
品牌 Philips Lighting | ||
Product Type Lighting Ballast | ||
Number of Lamps 1 | ||
Ballast Type Electronic | ||
Compatible Lamp Type Ceramic Metal Halide | ||
Voltage 220, 240V | ||
Dimmable No | ||
High Frequency Yes | ||
Length 188mm | ||
Compatible Lamp Designation CDM | ||
Minimum Operating Temperature -20°C | ||
Lighting Power 70 W | ||
Maximum Operating Temperature 45°C | ||
Standards/Approvals EN 61000-3-2, IEC 928-13, ISO 14001, EN 61347-2-12, EN 61547, IEC 68-2-29 Eb, IEC 68-2-6 Fc, ENEC, ISO 9000:2000 | ||
Width 82.7mm | ||
Height 35mm | ||
Series PrimaVision Compact | ||
High Frequency for Ceramic Metal Halide Lamps
High frequency, electronic microprocessor controlled ballasts for CDM and other ceramic metal halide lamps giving extended lamp life of 30% against magnetic ballasts
End of life detection
Low energy losses
Push in contacts for ease of wiring
Accurate control of lamp reduces colour differences and initial lumen spread
Independent - I type
Designed to be mounted behind a false ceiling
Integral strain relief
Standard – S type
Designed to be mounted with a luminaire
Horizontal or vertical mounting
