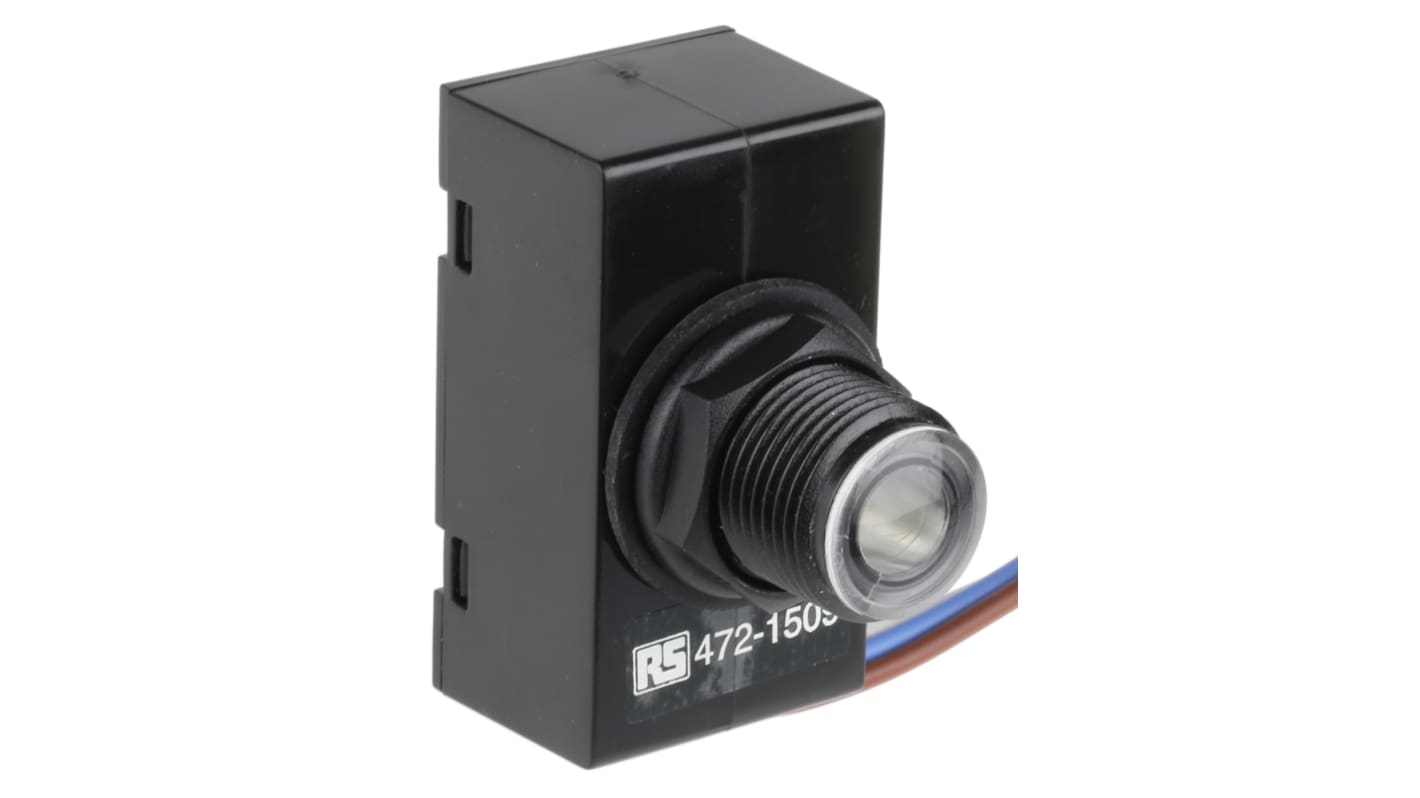

Royce Thompson Electric MICROSTAR 2000 0.25 W Lighting Controller Switch, Filtered Silicon Photodiode, Panel Mount, 220
- RS庫存編號:
- 472-1509
- 製造零件編號:
- MICROSTAR 2000 DRG 131
- 製造商:
- Royce Thompson Electric
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 472-1509
- 製造零件編號:
- MICROSTAR 2000 DRG 131
- 製造商:
- Royce Thompson Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Royce Thompson Electric | |
| Controller Type | Switch | |
| Product Type | Lighting Controller | |
| Sensor Type | Filtered Silicon Photodiode | |
| Voltage | 220 to 270 V | |
| Mount Type | Panel | |
| Dimmable | Yes | |
| Power Consumption | 0.25W | |
| Diameter | 58 mm | |
| Time Delay | 10 to 35 s | |
| Length | 57mm | |
| Height | 25mm | |
| Width | 31 mm | |
| Power | 250mW | |
| Standards/Approvals | CE, RoHS Compliant | |
| Series | MICROSTAR 2000 | |
| 選取全部 | ||
|---|---|---|
品牌 Royce Thompson Electric | ||
Controller Type Switch | ||
Product Type Lighting Controller | ||
Sensor Type Filtered Silicon Photodiode | ||
Voltage 220 to 270 V | ||
Mount Type Panel | ||
Dimmable Yes | ||
Power Consumption 0.25W | ||
Diameter 58 mm | ||
Time Delay 10 to 35 s | ||
Length 57mm | ||
Height 25mm | ||
Width 31 mm | ||
Power 250mW | ||
Standards/Approvals CE, RoHS Compliant | ||
Series MICROSTAR 2000 | ||
- COO (Country of Origin):
- GB
Royce Thompson Electric Lighting Controller Switch, 220 to 270V AC Operating Voltage - MICROSTAR 2000 DRG 131
Illuminate public areas such as car parks with this electrical lighting controller from Royce Thompson Electric. It switches on and off in response to changes in ambient light levels to automatically provide illumination when it gets dark. A miniature size of 57 (length) x 21 (width) x 25mm (depth) makes it easy to fit the unit in lamps where space is limited. Low power consumption of less than 0.25W makes this an energy-efficient option. With an accurate switching ability, you can rest assured that this unit will provide light when it's needed.
Features & Benefits
• Wide operating temperature range of -20°C to +60°C for use in demanding environments
• Pre-programmable switching levels to meet individual requirements
• Robust polycarbonate casing that resists the ageing affects of heat and UV light for an extended service life
• Miniature size allows it to be hidden from sight to reduce the risk of unauthorised tampering
Applications
• Street and floodlighting
• Arterial roadways
• Tunnels and underpasses
What type of lighting is compatible with this controller switch?
You can use this versatile controller switch with LED, halogen or discharge lighting.
