Texas Instruments 4-Channel Buffer & Line Driver, CMOS, 14-Pin SOIC
- RS庫存編號:
- 168-4853
- 製造零件編號:
- SN74LVC125ADR
- 製造商:
- Texas Instruments

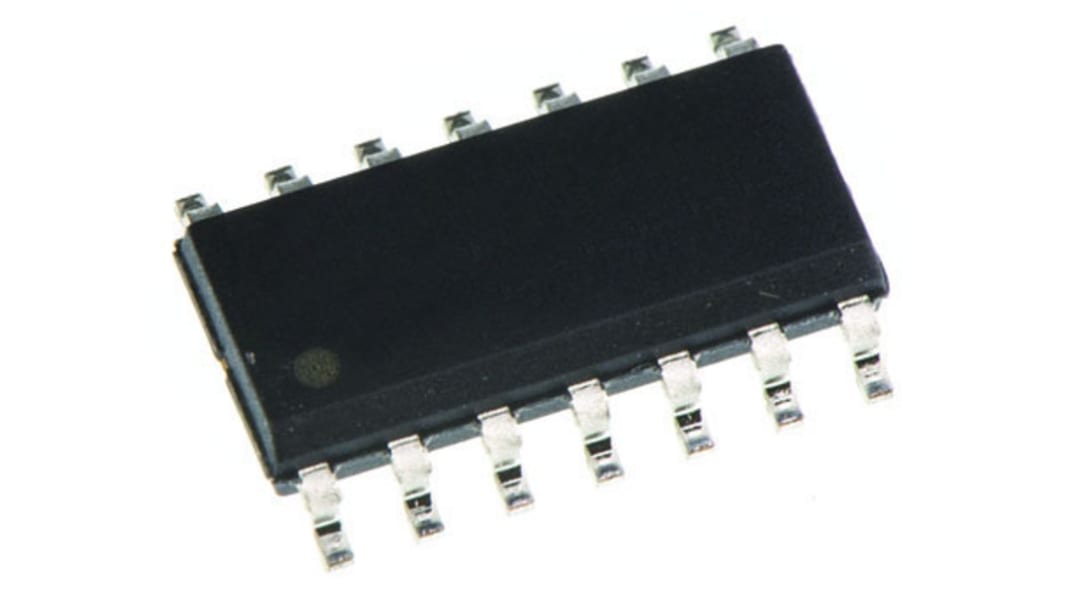

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 卷，共 2500 件）*
HK$6,322.50
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年8月04日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* |
|---|---|---|
| 2500 - 2500 | HK$2.529 | HK$6,322.50 |
| 5000 + | HK$2.479 | HK$6,197.50 |
* 參考價格
- RS庫存編號:
- 168-4853
- 製造零件編號:
- SN74LVC125ADR
- 製造商:
- Texas Instruments
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Texas Instruments | |
| Logic Family | LVC | |
| Product Type | Buffer & Line Driver | |
| Logic Function | Buffer & Line Driver | |
| IC Type | Buffer & Line Driver IC | |
| Number of Channels | 4 | |
| Input Type | CMOS | |
| Output Type | CMOS | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Minimum Supply Voltage | 1.65V | |
| Pin Count | 14 | |
| Maximum High Level Output Current | -24mA | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 4.8ns | |
| Maximum Low Level Output Current | 24mA | |
| Maximum Operating Temperature | 125°C | |
| Series | SN74LVC125A | |
| Length | 8.75mm | |
| Standards/Approvals | No | |
| Height | 1.75mm | |
| Automotive Standard | AEC-Q100 | |
| Supply Current | 40μA | |
| 選取全部 | ||
|---|---|---|
品牌 Texas Instruments | ||
Logic Family LVC | ||
Product Type Buffer & Line Driver | ||
Logic Function Buffer & Line Driver | ||
IC Type Buffer & Line Driver IC | ||
Number of Channels 4 | ||
Input Type CMOS | ||
Output Type CMOS | ||
Mount Type Surface | ||
Package Type SOIC | ||
Minimum Supply Voltage 1.65V | ||
Pin Count 14 | ||
Maximum High Level Output Current -24mA | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 4.8ns | ||
Maximum Low Level Output Current 24mA | ||
Maximum Operating Temperature 125°C | ||
Series SN74LVC125A | ||
Length 8.75mm | ||
Standards/Approvals No | ||
Height 1.75mm | ||
Automotive Standard AEC-Q100 | ||
Supply Current 40μA | ||
74LVC Family Inverters & Buffers, Texas Instruments
Texas Instruments range of Inverters and Buffers from the 74LVC Family of Low-voltage CMOS Logic ICs. The 74LVC Family use silicon gate CMOS technology and is designed to operate at 3.3V, allowing a significant reduction in power consumption when compared to 5V systems.
Operating Voltage: 1.65 to 3.6V
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22
74LVC Family
