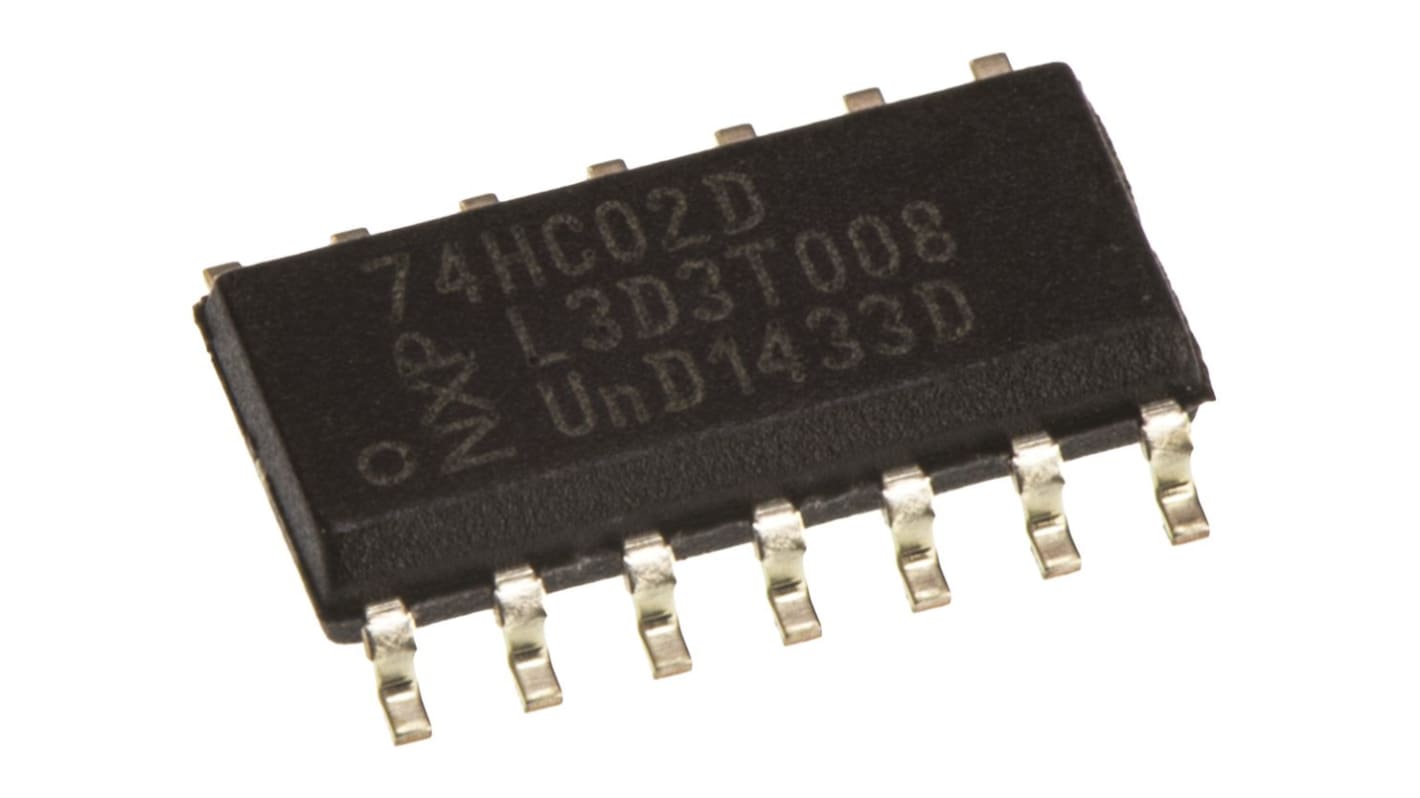

Name: Nexperia 74HC02D,652, Quad 2-Input NOR Logic Gate, 14-Pin SOIC
Brand: Nexperia
SKU: 103-8166
Price: 1.03 HKD
Availability: Discontinued

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Nexperia
	Logic Function	NOR
	Mounting Type	Surface Mount
	Number of Elements	4
	Number of Inputs per Gate	2
	Schmitt Trigger Input	No
	Package Type	SOIC
	Pin Count	14
	Logic Family	HC
	Input Type	CMOS
	Maximum Operating Supply Voltage	6 V
	Maximum High Level Output Current	-5.2mA
	Maximum Propagation Delay Time @ Maximum CL	15 ns @ 6 V, 18 ns @ 4.5 V, 90 ns @ 2 V
	Minimum Operating Supply Voltage	2 V
	Maximum Low Level Output Current	5.2mA
	Dimensions	8.75 x 4 x 1.45mm
	Width	4mm
	Height	1.45mm
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+125 °C
	Length	8.75mm
	Propagation Delay Test Condition	50pF

	選取全部
	品牌 Nexperia
	Logic Function NOR
	Mounting Type Surface Mount
	Number of Elements 4
	Number of Inputs per Gate 2
	Schmitt Trigger Input No
	Package Type SOIC
	Pin Count 14
	Logic Family HC
	Input Type CMOS
	Maximum Operating Supply Voltage 6 V
	Maximum High Level Output Current -5.2mA
	Maximum Propagation Delay Time @ Maximum CL 15 ns @ 6 V, 18 ns @ 4.5 V, 90 ns @ 2 V
	Minimum Operating Supply Voltage 2 V
	Maximum Low Level Output Current 5.2mA
	Dimensions 8.75 x 4 x 1.45mm
	Width 4mm
	Height 1.45mm
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +125 °C
	Length 8.75mm
	Propagation Delay Test Condition 50pF

74HC Family Logic Gates, Nexperia

A range of NXP standard Logic Gates from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.

High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS

74HC Family

Nexperia 74HC02D,652, Quad 2-Input NOR Logic Gate, 14-Pin SOIC

74HC Family Logic Gates, Nexperia
