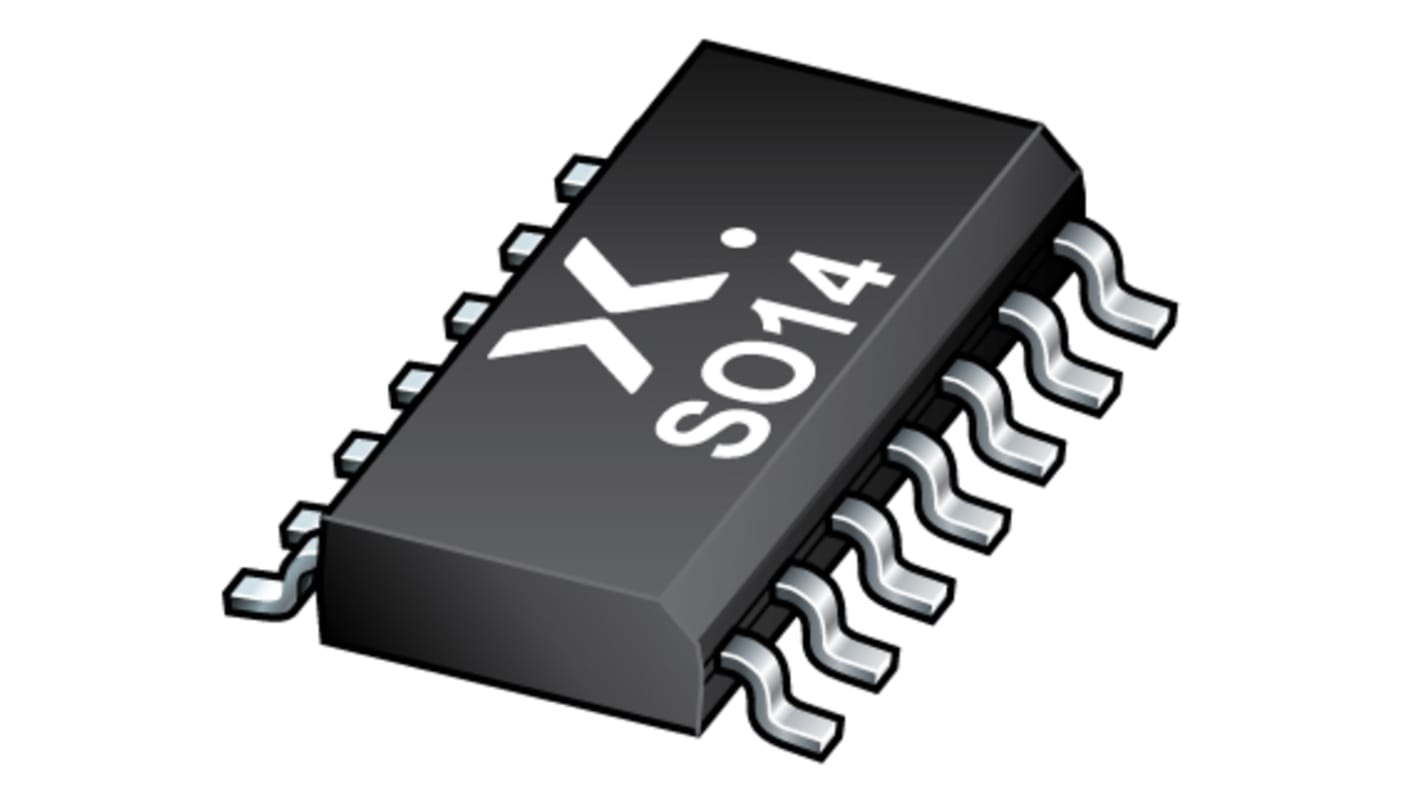

Nexperia 74HC02D-Q100,118, Quad 2-Input NOR Logic Gate, 14-Pin SOIC

RS庫存編號:: 152-6478
製造零件編號:: 74HC02D-Q100,118
製造商:: Nexperia

Nexperia 74HC02D-Q100,118, Quad 2-Input NOR Logic Gate, 14-Pin SOIC

可享批量折扣

小計（1 卷，共 2500 件）*

HK$2,625.00

訂單超過 HK$250.00 免費送貨

暫時缺貨

12,500 件從 2025年12月17日起裝運發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每卷*
2500 - 2500	HK$1.05	HK$2,625.00
5000 - 22500	HK$1.029	HK$2,572.50
25000 +	HK$1.009	HK$2,522.50

* 參考價格

RS庫存編號:: 152-6478
製造零件編號:: 74HC02D-Q100,118
製造商:: Nexperia

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Nexperia
	Logic Function	NOR
	Mounting Type	Surface Mount
	Number of Elements	4
	Number of Inputs per Gate	2
	Package Type	SOIC
	Pin Count	14
	Logic Family	74HC
	Input Type	CMOS
	Maximum Operating Supply Voltage	6 V
	Maximum Propagation Delay Time @ Maximum CL	135 ns @ 50 pF
	Minimum Operating Supply Voltage	2 V
	Width	4mm
	Height	1.45mm
	Dimensions	8.75 x 4 x 1.45mm
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+125 °C
	Propagation Delay Test Condition	50pF
	Automotive Standard	AEC-Q100
	Length	8.75mm

	選取全部
	品牌 Nexperia
	Logic Function NOR
	Mounting Type Surface Mount
	Number of Elements 4
	Number of Inputs per Gate 2
	Package Type SOIC
	Pin Count 14
	Logic Family 74HC
	Input Type CMOS
	Maximum Operating Supply Voltage 6 V
	Maximum Propagation Delay Time @ Maximum CL 135 ns @ 50 pF
	Minimum Operating Supply Voltage 2 V
	Width 4mm
	Height 1.45mm
	Dimensions 8.75 x 4 x 1.45mm
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +125 °C
	Propagation Delay Test Condition 50pF
	Automotive Standard AEC-Q100
	Length 8.75mm

Quad 2-input NOR gate, The 74HC02-Q100, 74HCT02-Q100 is a quad 2-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Complies with JEDEC standard no. 7A

Nexperia 74HC02D-Q100,118, Quad 2-Input NOR Logic Gate, 14-Pin SOIC

訂單超過 HK$250.00 免費送貨

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
