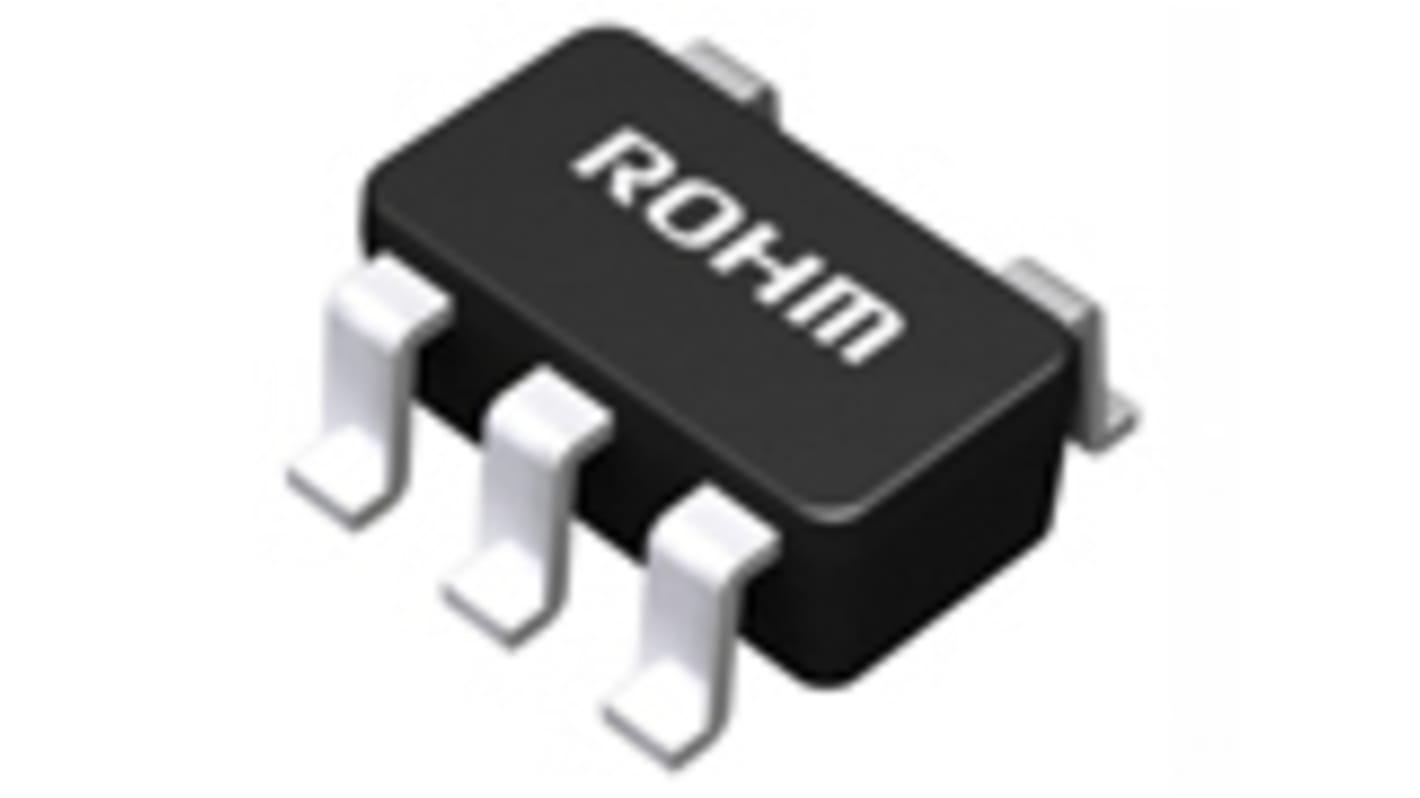

ROHM BU4SU69G2-TR 1-Input Inverter Logic Gate, 5-Pin SSOP
- RS庫存編號:
- 168-2415
- 製造零件編號:
- BU4SU69G2-TR
- 製造商:
- ROHM
可享批量折扣
小計（1 包，共 25 件）*
HK$103.30
訂單超過 HK$250.00 免費送貨
最後的 RS 庫存
- 最終 3,800 個，準備發貨
單位 | 每單位 | 每包* |
|---|---|---|
| 25 - 725 | HK$4.132 | HK$103.30 |
| 750 - 1475 | HK$4.028 | HK$100.70 |
| 1500 + | HK$3.968 | HK$99.20 |
* 參考價格
- RS庫存編號:
- 168-2415
- 製造零件編號:
- BU4SU69G2-TR
- 製造商:
- ROHM
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | ROHM | |
| Logic Function | Inverter | |
| Mounting Type | Surface Mount | |
| Number of Elements | 1 | |
| Number of Inputs per Gate | 1 | |
| Package Type | SSOP | |
| Pin Count | 5 | |
| Logic Family | CMOS | |
| Input Type | LS-TTL, L-TTL | |
| Maximum Operating Supply Voltage | 16 V | |
| Maximum High Level Output Current | -3.4mA | |
| Maximum Propagation Delay Time @ Maximum CL | 55 ns @ 50 pF | |
| Minimum Operating Supply Voltage | 3 V | |
| Maximum Low Level Output Current | 3.4mA | |
| Length | 2.9mm | |
| Propagation Delay Test Condition | 50pF | |
| Maximum Operating Temperature | +85 °C | |
| Output Type | Buffer | |
| Dimensions | 2.9 x 1.6 x 1.1mm | |
| Minimum Operating Temperature | -40 °C | |
| Width | 1.6mm | |
| Height | 1.2mm | |
| 選取全部 | ||
|---|---|---|
品牌 ROHM | ||
Logic Function Inverter | ||
Mounting Type Surface Mount | ||
Number of Elements 1 | ||
Number of Inputs per Gate 1 | ||
Package Type SSOP | ||
Pin Count 5 | ||
Logic Family CMOS | ||
Input Type LS-TTL, L-TTL | ||
Maximum Operating Supply Voltage 16 V | ||
Maximum High Level Output Current -3.4mA | ||
Maximum Propagation Delay Time @ Maximum CL 55 ns @ 50 pF | ||
Minimum Operating Supply Voltage 3 V | ||
Maximum Low Level Output Current 3.4mA | ||
Length 2.9mm | ||
Propagation Delay Test Condition 50pF | ||
Maximum Operating Temperature +85 °C | ||
Output Type Buffer | ||
Dimensions 2.9 x 1.6 x 1.1mm | ||
Minimum Operating Temperature -40 °C | ||
Width 1.6mm | ||
Height 1.2mm | ||
- COO (Country of Origin):
- JP
Logic gate series of ROHM that is compatible with 4S, 4000B series corresponds to high power supply voltage and has wide lineup with all kinds of function. It is able to be used with various applications.
Low power consumption.
Wide operating supply voltage (3 to 16 (18)V).
High input impedance.
High fan out.
L-TTL2 input and LS-TTL1 input can be driven directly.
Pin compatible with 4S, 4000B series.
Function compatible with 4S, 4000B series.
Wide lineup of package.
Wide operating supply voltage (3 to 16 (18)V).
High input impedance.
High fan out.
L-TTL2 input and LS-TTL1 input can be driven directly.
Pin compatible with 4S, 4000B series.
Function compatible with 4S, 4000B series.
Wide lineup of package.
