STMicroelectronics M74HC132YTTR, Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin TSSOP

RS庫存編號:: 168-8789
製造零件編號:: M74HC132YTTR
製造商:: STMicroelectronics

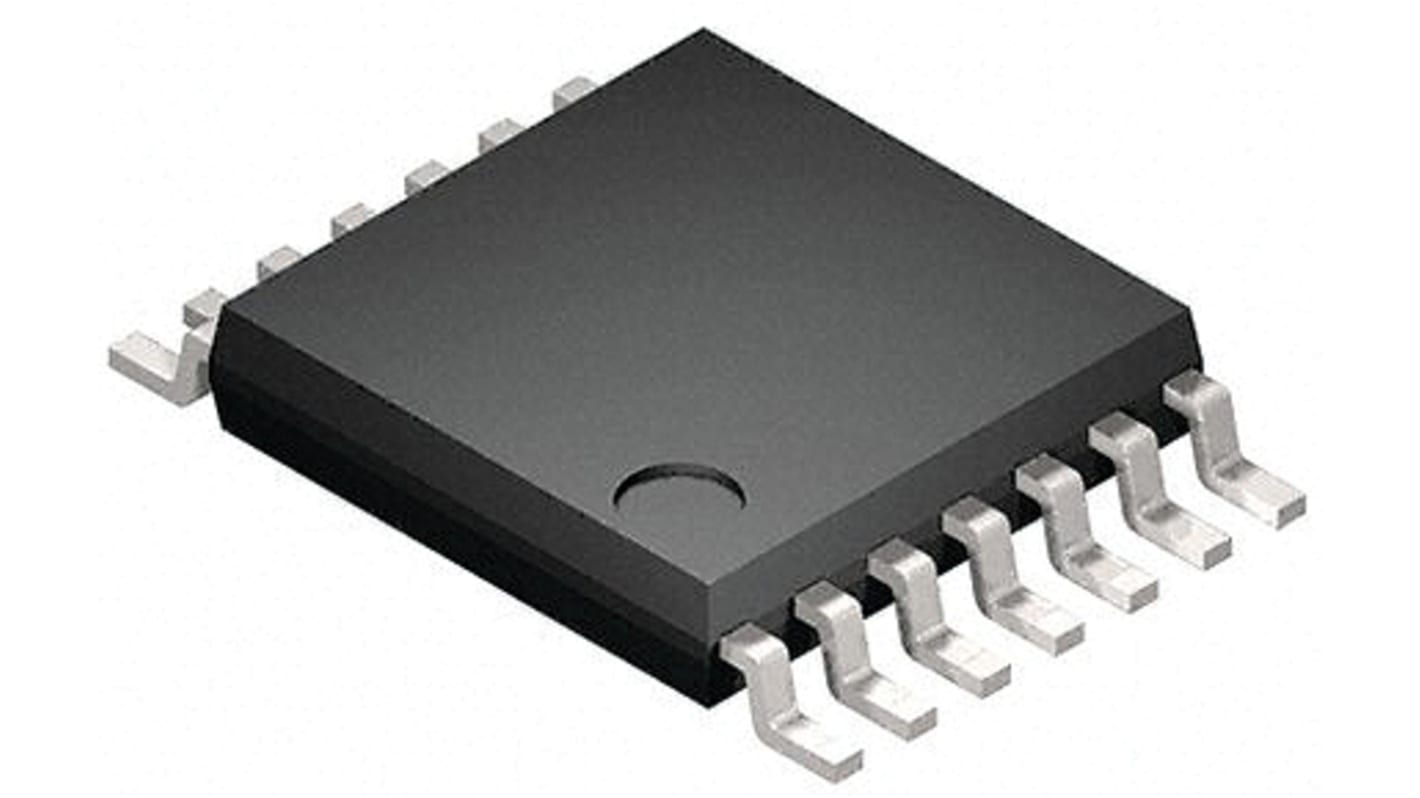

STMicroelectronics M74HC132YTTR, Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin TSSOP

此圖片僅供參考，請參閲產品詳細資訊及規格

當前暫無庫存，可於2024/11/1發貨，3 工作日送達。

單價个（每带 2500 ）

HK$3.145

單位	每單位	每卷*
2500 - 10000	HK$3.145	HK$7,862.50
12500 +	HK$2.83	HK$7,075.00

* 參考價格

RS庫存編號:: 168-8789
製造零件編號:: M74HC132YTTR
製造商:: STMicroelectronics

M74HC132, Quad 2-Input Schmitt NAND Gate
ESD Control Selection Guide V1

Attribute	Value
Logic Function	NAND
Mounting Type	Surface Mount
Number of Elements	4
Number of Inputs per Gate	2
Schmitt Trigger Input	Yes
Package Type	TSSOP
Pin Count	14
Logic Family	HC
Input Type	Schmitt Trigger
Maximum Operating Supply Voltage	6 V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ Maximum CL	160 ns @ 50 pF
Minimum Operating Supply Voltage	2 V
Maximum Low Level Output Current	-5.2mA
Height	1.05mm
Width	4.48mm
Minimum Operating Temperature	-40 °C
Dimensions	5.1 x 4.48 x 1.05mm
Length	5.1mm
Maximum Operating Temperature	+125 °C
Output Type	Single Ended
Propagation Delay Test Condition	50pF

STMicroelectronics M74HC132YTTR, Quad 2-Input NAND Schmitt Trigger Logic Gate, 14-Pin TSSOP

74HC Family, STMicroelectronics
