STMicroelectronics STM32C092CCU6 ARM 32 bit Cortex M0+ CPU, STM32C092 Microcontroller, 48 MHz FLASH, 48-Pin UFQFPN
- RS庫存編號:
- 315-768
- 製造零件編號:
- STM32C092CCU6
- 製造商:
- STMicroelectronics

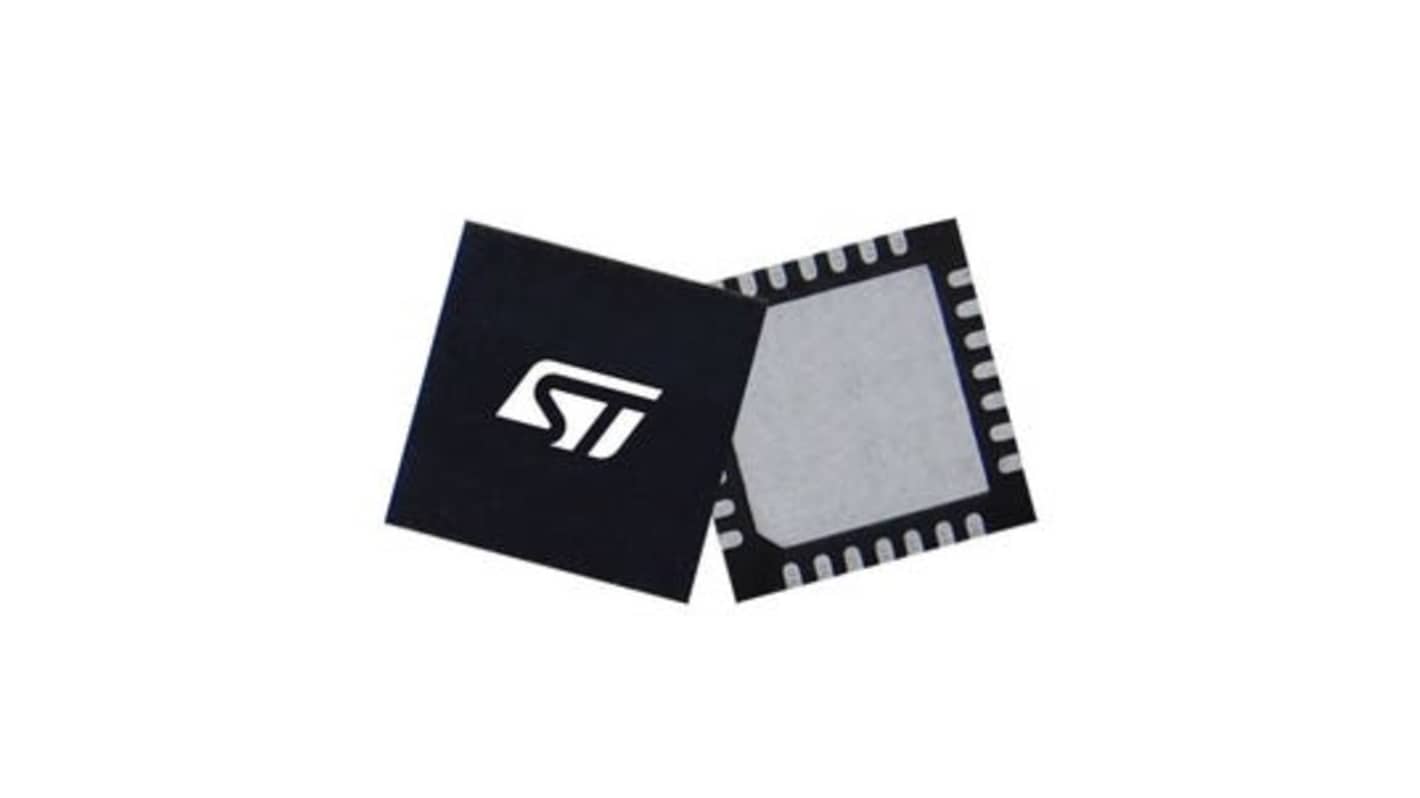

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 件）*
HK$15.70
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 - 9 | HK$15.70 |
| 10 - 99 | HK$14.10 |
| 100 + | HK$13.00 |
* 參考價格
- RS庫存編號:
- 315-768
- 製造零件編號:
- STM32C092CCU6
- 製造商:
- STMicroelectronics
規格
產品概覽和技術數據資料表
法例與合規
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | STMicroelectronics | |
| Product Type | Microcontroller | |
| Series | STM32C092 | |
| Package Type | UFQFPN | |
| Pin Count | 48 | |
| Device Core | ARM 32 bit Cortex M0+ CPU | |
| Maximum Clock Frequency | 48MHz | |
| RAM Size | 256kB | |
| Maximum Supply Voltage | 3.6V | |
| Number of Programmable I/Os | 61 | |
| Minimum Operating Temperature | -45°C | |
| Maximum Operating Temperature | 80°C | |
| Width | 7 mm | |
| Length | 7mm | |
| Standards/Approvals | No | |
| Minimum Supply Voltage | 2V | |
| ADCs | 12 bit | |
| Automotive Standard | No | |
| Program Memory Type | FLASH | |
| 選取全部 | ||
|---|---|---|
品牌 STMicroelectronics | ||
Product Type Microcontroller | ||
Series STM32C092 | ||
Package Type UFQFPN | ||
Pin Count 48 | ||
Device Core ARM 32 bit Cortex M0+ CPU | ||
Maximum Clock Frequency 48MHz | ||
RAM Size 256kB | ||
Maximum Supply Voltage 3.6V | ||
Number of Programmable I/Os 61 | ||
Minimum Operating Temperature -45°C | ||
Maximum Operating Temperature 80°C | ||
Width 7 mm | ||
Length 7mm | ||
Standards/Approvals No | ||
Minimum Supply Voltage 2V | ||
ADCs 12 bit | ||
Automotive Standard No | ||
Program Memory Type FLASH | ||
- COO (Country of Origin):
- TW
