STMicroelectronics STM32WBA63CGU7, 32 bit ARM Cortex M33, STM32WBA6xxx Microcontroller, 100 MHz, 1MB FLASH, 48-Pin

Name: STMicroelectronics STM32WBA63CGU7, 32 bit ARM Cortex M33, STM32WBA6xxx Microcontroller, 100 MHz, 1MB FLASH, 48-Pin
Brand: STMicroelectronics
SKU: 330-277
Price: 49.83 HKD
Availability: PreOrder

RS庫存編號:: 330-277
製造零件編號:: STM32WBA63CGU7
製造商:: STMicroelectronics

STMicroelectronics STM32WBA63CGU7, 32 bit ARM Cortex M33, STM32WBA6xxx Microcontroller, 100 MHz, 1MB FLASH, 48-Pin

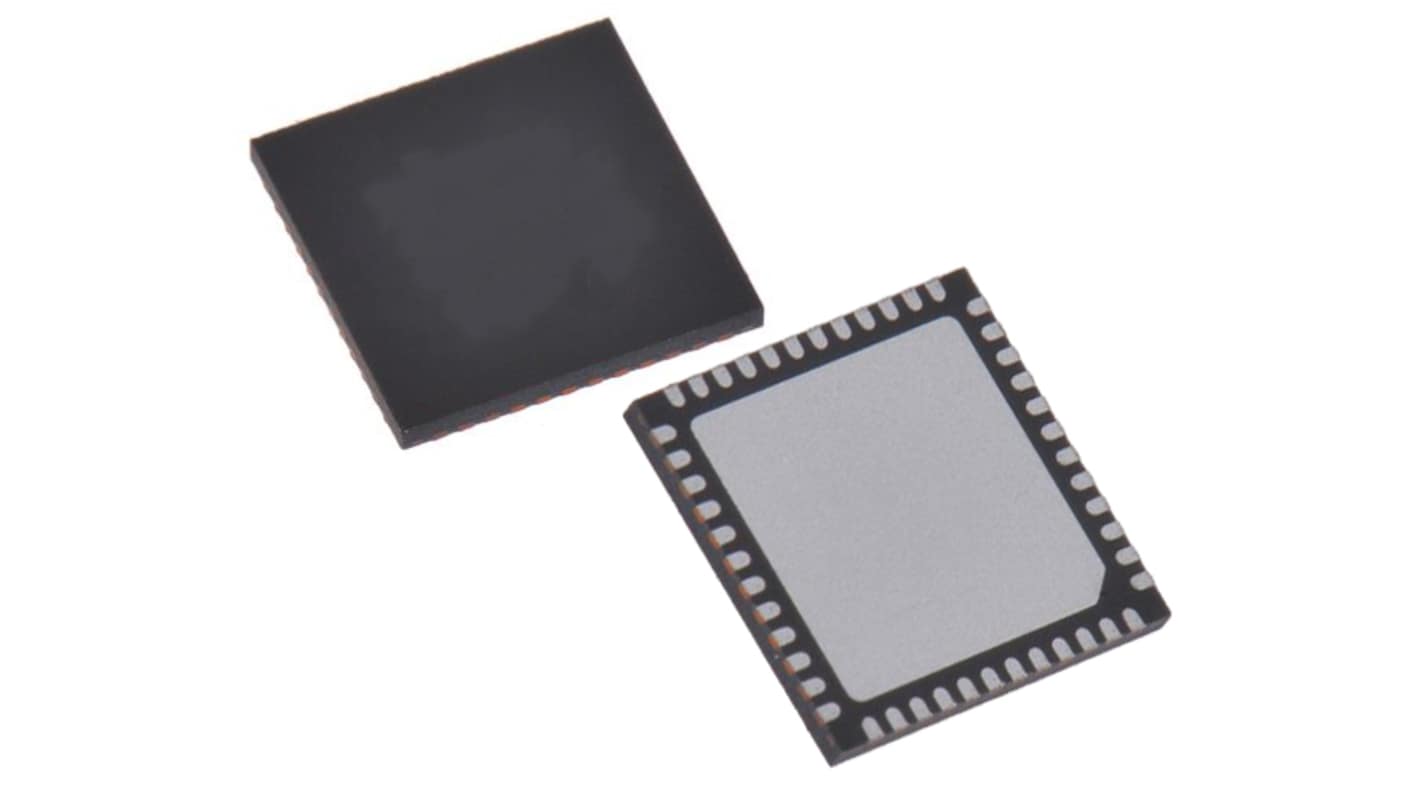

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Microcontrollers

可享批量折扣

小計（1 件）*

HK$49.83

訂單超過 HK$250.00 免費送貨

新產品 - 立即預訂

從 2026年4月03日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 9	HK$49.83
10 - 99	HK$44.84
100 +	HK$41.41

* 參考價格

RS庫存編號:: 330-277
製造零件編號:: STM32WBA63CGU7
製造商:: STMicroelectronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32WBA6xxx
	Package Type	UFQFPN
	Mount Type	Surface
	Pin Count	48
	Device Core	ARM Cortex M33
	Data Bus Width	32bit
	Program Memory Size	1MB
	Maximum Clock Frequency	100MHz
	RAM Size	512kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Length	5mm
	Height	3.78mm
	Width	7 mm
	Number of Programmable I/Os	86
	Analogue Comparators	2
	Standards/Approvals	FCC CFR47 part 15, ETSI EN 300 328, EN 300 440, ARIB STD-T66
	Minimum Supply Voltage	1.71V
	Instruction Set Architecture	Arm Cortex
	Automotive Standard	No
	ADCs	16 Bit, 12 Bit
	Program Memory Type	FLASH
	Number of Timers	10

	選取全部
	品牌 STMicroelectronics
	Product Type Microcontroller
	Series STM32WBA6xxx
	Package Type UFQFPN
	Mount Type Surface
	Pin Count 48
	Device Core ARM Cortex M33
	Data Bus Width 32bit
	Program Memory Size 1MB
	Maximum Clock Frequency 100MHz
	RAM Size 512kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Length 5mm
	Height 3.78mm
	Width 7 mm
	Number of Programmable I/Os 86
	Analogue Comparators 2
	Standards/Approvals FCC CFR47 part 15, ETSI EN 300 328, EN 300 440, ARIB STD-T66
	Minimum Supply Voltage 1.71V
	Instruction Set Architecture Arm Cortex
	Automotive Standard No
	ADCs 16 Bit, 12 Bit
	Program Memory Type FLASH
	Number of Timers 10

Datasheet - STM32WBA63CGU7

COO (Country of Origin):: CN

The STMicroelectronics multiprotocol wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant with the Bluetooth SIG Low Energy specification 5.4 and with IEEE 802.15.4-2015. They contain a high-performance Arm Cortex M33 32-bit RISC core, and operate at a frequency of up to 100 MHz The devices integrate a 2.4 GHz RADIO supporting Bluetooth Low Energy, Matter, Thread, and ZigBee , and make possible to use proprietary protocols and concurrent operation modes. They provide support for an array of up to eight antennas, and an external power amplifier. PTA (packet traffic arbitration) interface is supported as well. The Cortex-M33 core features a single-precision floating-point unit (FPU), supporting all the Arm single-precision data-processing instructions and all the data types. This core implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) that enhances the application security.

2.4 GHz radio

RF transceiver supporting Bluetooth Low Energy 5.4 specification

Supporting Thread, Matter, and ZigBee protocols

Proprietary protocols

RX sensitivity -96 dBm (Bluetooth Low Energy at 1 Mbps)

RX sensitivity -100 dBm (IEEE 802.15.4 at 250 kbps)

Programmable output power up to +10 dBm, with 1 dB steps

Support for external PA

Packet traffic arbitration

Integrated balun to reduce BOM
