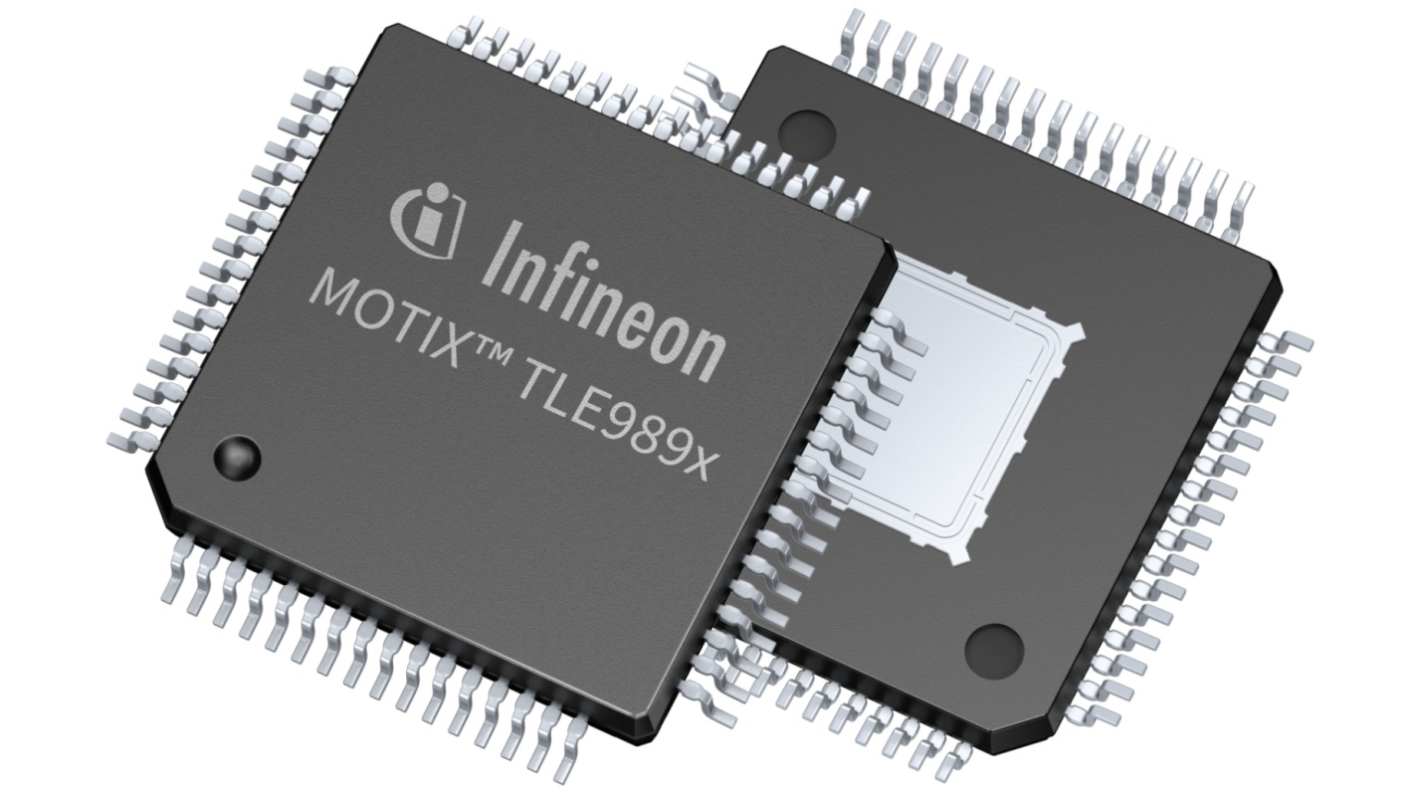

Infineon TLE98932QKW62SXUMA1, 32 bit ARM Cortex M3, MOTIX TLE Microcontroller, 60 MHz, 248kB FLASH, 64-Pin LQFP
- RS庫存編號:
- 348-984
- 製造零件編號:
- TLE98932QKW62SXUMA1
- 製造商:
- Infineon
可享批量折扣
查看批量定價選項小計（1 件）*
HK$70.00
訂單超過 HK$250.00 免費送貨
有庫存
- 1,900 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | HK$70.00 |
| 10 - 99 | HK$63.00 |
| 100 - 499 | HK$58.20 |
| 500 - 999 | HK$54.00 |
| 1000 + | HK$52.30 |
* 參考價格
- RS庫存編號:
- 348-984
- 製造零件編號:
- TLE98932QKW62SXUMA1
- 製造商:
- Infineon
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Infineon | |
| Series | MOTIX TLE | |
| Product Type | Microcontroller | |
| Package Type | LQFP | |
| Mount Type | Surface | |
| Pin Count | 64 | |
| Device Core | ARM Cortex M3 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 248kB | |
| Interface Type | CAN FD, LIN, SSC, UART | |
| Maximum Clock Frequency | 60MHz | |
| RAM Size | 32kB | |
| Maximum Supply Voltage | 40V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | AEC-Q100 | |
| Analogue Comparators | 1 | |
| Minimum Supply Voltage | 3V | |
| Instruction Set Architecture | Arm Cortex | |
| ADCs | 1 x 12 Bit | |
| Program Memory Type | FLASH | |
| Automotive Standard | AEC-Q100 | |
| Number of Timers | 13 | |
| 選取全部 | ||
|---|---|---|
品牌 Infineon | ||
Series MOTIX TLE | ||
Product Type Microcontroller | ||
Package Type LQFP | ||
Mount Type Surface | ||
Pin Count 64 | ||
Device Core ARM Cortex M3 | ||
Data Bus Width 32bit | ||
Program Memory Size 248kB | ||
Interface Type CAN FD, LIN, SSC, UART | ||
Maximum Clock Frequency 60MHz | ||
RAM Size 32kB | ||
Maximum Supply Voltage 40V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals AEC-Q100 | ||
Analogue Comparators 1 | ||
Minimum Supply Voltage 3V | ||
Instruction Set Architecture Arm Cortex | ||
ADCs 1 x 12 Bit | ||
Program Memory Type FLASH | ||
Automotive Standard AEC-Q100 | ||
Number of Timers 13 | ||
The Infineon MOTIX TLE9893-2QKW62S is part of the MOTIX TLE989x product family. It is a fully integrated 3-Phase motor driver with the industry standard Arm Cortex-M3 core, enabling the implementation of advanced motor control algorithms. It includes a bridge driver to drive up to six external power NFETs for 3-Phase motor control. A dual stage charge pump enables low voltage operation and programmable charge current profile along with adaptive MOSFET control for optimized EMC.
2 x synchronous serial interface for SPI communication
On chip oscillator and PLL for clock generation
Four high voltage monitoring input with wake up functionality
High speed current sense amplifier for motor current sensing via shunt
Independent programmable window watchdog
