NXP, 32bit ARM Cortex M0, Kinetis EA Microcontroller, 40MHz, 64 kB Flash, 64-Pin LQFP

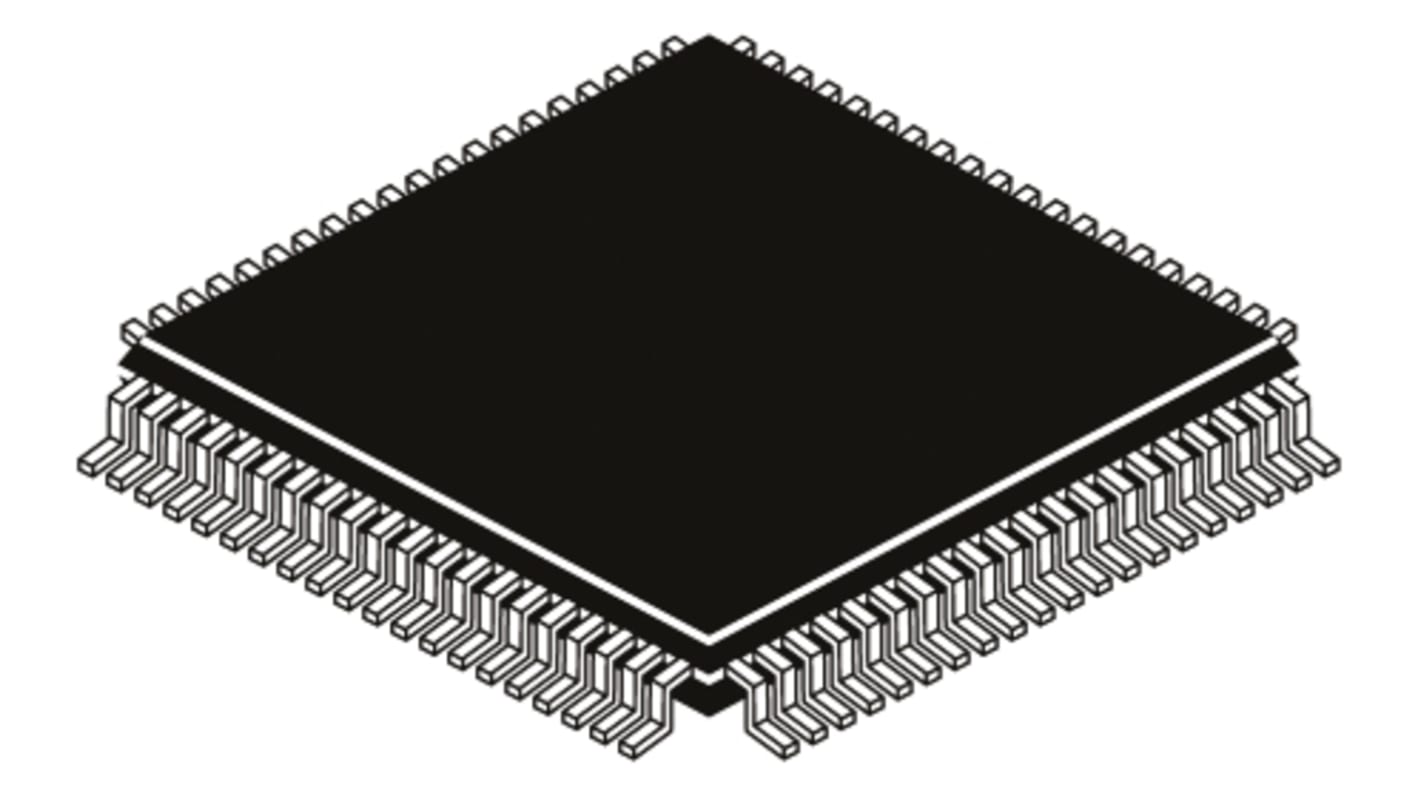

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Microcontrollers
可享批量折扣

小計（1 托盤，共 160 件）*

HK$4,153.76

Add to Basket
選擇或輸入數量
有庫存
  • 2,240 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
每托盤*
160 - 160HK$25.961HK$4,153.76
320 - 480HK$25.443HK$4,070.88
640 +HK$24.679HK$3,948.64

* 參考價格

RS庫存編號:
146-0436
製造零件編號:
S9KEAZN64AMLH
製造商:
NXP
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

NXP

Family Name

Kinetis EA

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

64

Device Core

ARM Cortex M0

Data Bus Width

32bit

Program Memory Size

64 kB

Maximum Frequency

40MHz

RAM Size

4 kB

USB Channels

0

Number of SPI Channels

2

Number of UART Channels

3

Number of CAN Channels

0

Number of I2C Channels

1

Typical Operating Supply Voltage

2.7 → 5.5 V

Number of USART Channels

0

Length

10mm

Number of ADC Units

1

Maximum Operating Temperature

+125 °C

Program Memory Type

Flash

Minimum Operating Temperature

-40 °C

Instruction Set Architecture

ARM

Maximum Number of Ethernet Channels

0

ADCs

16 x 12 bit

Dimensions

10 x 10 x 1.45mm

Width

10mm

Height

1.45mm

Number of LIN Channels

0

Number of Ethernet Channels

0

Number of PCI Channels

0

COO (Country of Origin):
US

Kinetis EA Series Microcontrollers


Kinetis EA series microcontrollers are based on the 32-bit ARM Cortex-M0+ core and are designed for automotive applications. This series was developed with EMC/ESD in mind and features strong noise immunity with low radiated emissions.

Up to 48MHz Cortex-M0+ microcontroller

Up to 128KB Flash memory

Up to 16KB SRAM

16-channel 12-bit ADC

Single-cycle I/O access port

Power supply: +2.7 to +5.5Vdc

Operating temperature range: -40 to +125°C

The Kinetis range of ARM Cortex core microcontrollers consists of multiple hardware- and software-compatible Cortex-M0+ and Cortex-M4 MCU families with exceptional low-power performance, memory scalability and feature integration. Families range from the entry-level Cortex-M0+ Kinetis L Series to the high-performance, feature-rich Cortex-M4 Kinetis K and include a wide selection of analogue, communication, HMI, connectivity and security features.
