產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32L4R5QI
	Package Type	UFBGA
	Mount Type	Surface
	Pin Count	132
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	2MB
	Maximum Clock Frequency	120MHz
	RAM Size	640kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Maximum Power Dissipation Pd	364mW
	Height	0.49mm
	Analogue Comparators	2
	Length	7.15mm
	Standards/Approvals	No
	Number of Programmable I/Os	136
	DACs	2 x 12 Bit
	Width	7.15 mm
	Minimum Supply Voltage	1.71V
	ADCs	16 x 12 Bit
	Program Memory Type	FLASH
	Number of Timers	5
	Instruction Set Architecture	RISC
	Automotive Standard	No

	選取全部
	品牌 STMicroelectronics
	Product Type Microcontroller
	Series STM32L4R5QI
	Package Type UFBGA
	Mount Type Surface
	Pin Count 132
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 2MB
	Maximum Clock Frequency 120MHz
	RAM Size 640kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Maximum Power Dissipation Pd 364mW
	Height 0.49mm
	Analogue Comparators 2
	Length 7.15mm
	Standards/Approvals No
	Number of Programmable I/Os 136
	DACs 2 x 12 Bit
	Width 7.15 mm
	Minimum Supply Voltage 1.71V
	ADCs 16 x 12 Bit
	Program Memory Type FLASH
	Number of Timers 5
	Instruction Set Architecture RISC
	Automotive Standard No

The STM32L4R5xx, STM32L4R7xx and STM32L4R9xx devices are an ultra-low-power microcontrollers family (STM32L4+ Series) based on the high-performance Arm® Cortex®-M4 32-bit RISC core. They operate at a frequency of up to 120 Mhz. The Cortex-M4 core features a single-precision floating-point unit (FPU), which supports all the Arm® single-precision data-processing instructions and all the data types. The Cortex-M4 core also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) which enhances the application’s security.

Ultra-low-power with FlexPowerControl

5 μs wakeup from Stop mode

Brownout reset (BOR) in all modes except shutdown

Interconnect Matrix

Internal low-power 32 kHz RC (±5%)

Internal multispeed 100 kHz to 48 MHz oscillator, auto-trimmed by LSE (better than ±0.25 % accuracy)

Internal 48 MHz with clock recovery

3 PLLs for system clock, USB, audio, ADC

RTC with HW calendar, alarms and calibration

單位	每單位	每托盤*
416 - 1664	HK$129.53	HK$53,884.48
2080 +	HK$126.94	HK$52,807.04

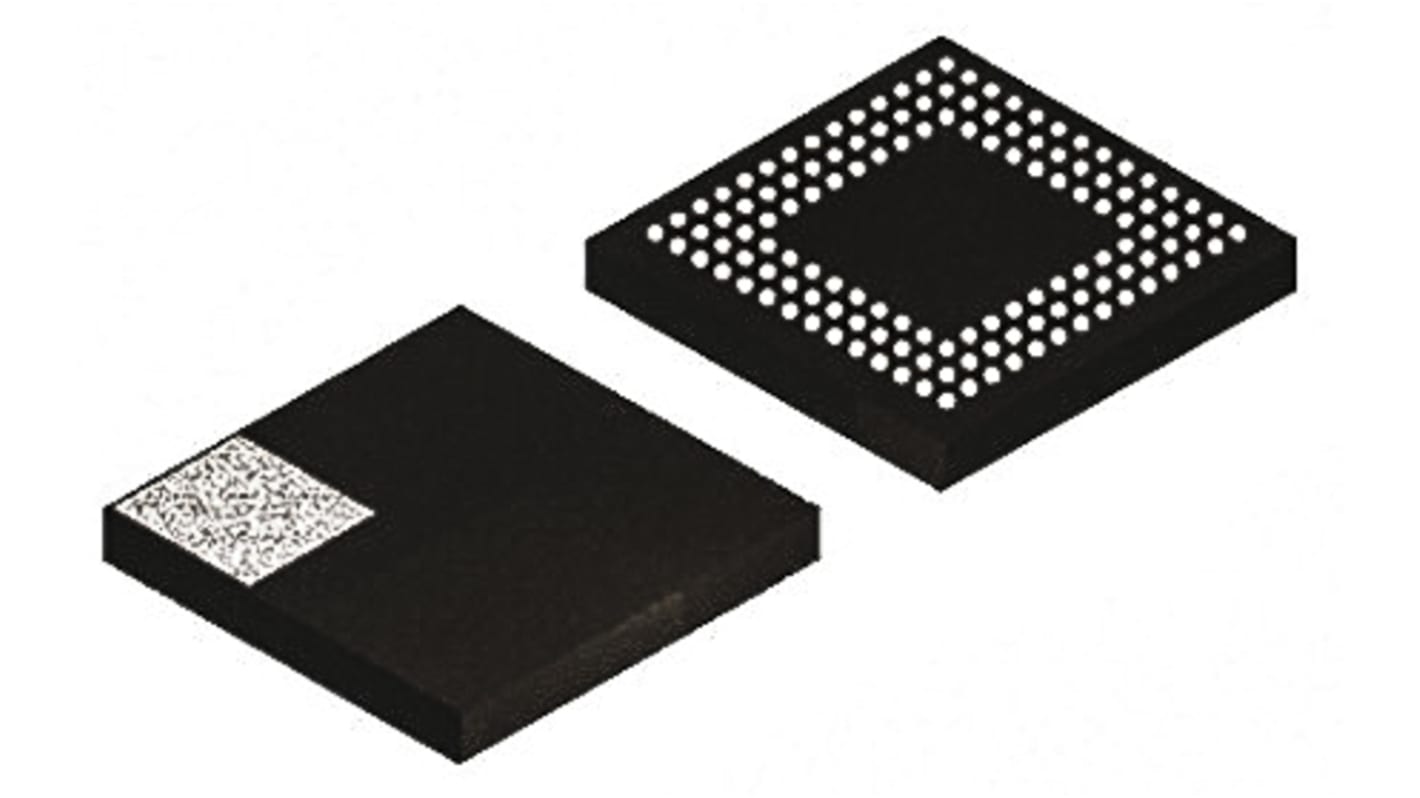

STMicroelectronics, 32 bit ARM Cortex M4, STM32L4R5QI Microcontroller, 120 MHz, 2MB FLASH, 132-Pin UFBGA
