STMicroelectronics, 32bit ARM Cortex M4, STM32L4 Microcontroller, 80MHz, 1 MB Flash, 64-Pin LQFP

RS庫存編號:: 165-8235
製造零件編號:: STM32L476RGT6
製造商:: STMicroelectronics

STMicroelectronics, 32bit ARM Cortex M4, STM32L4 Microcontroller, 80MHz, 1 MB Flash, 64-Pin LQFP

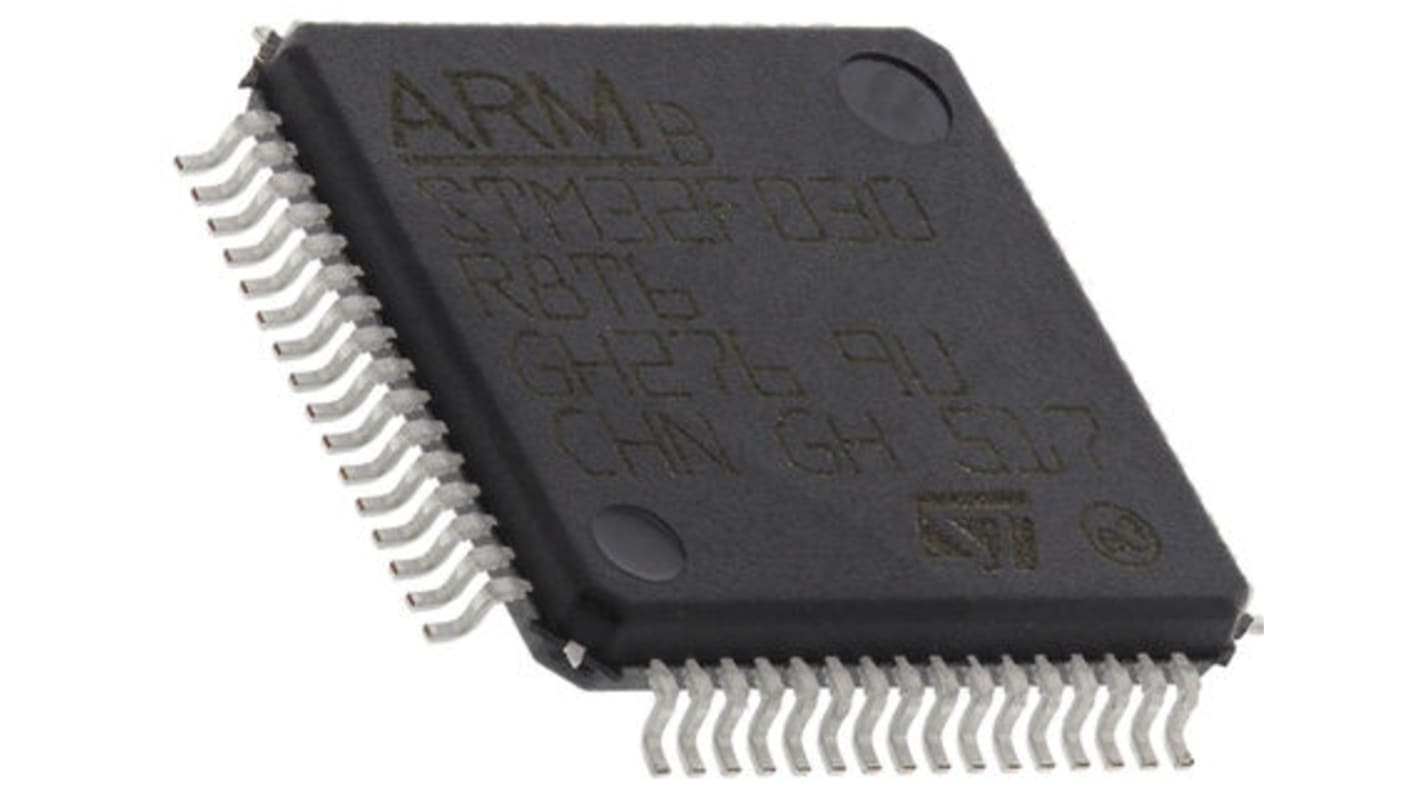

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 托盤，共 160 件）*

HK$13,371.84

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年3月26日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每托盤*
160 - 640	HK$83.574	HK$13,371.84
800 +	HK$81.903	HK$13,104.48

* 參考價格

RS庫存編號:: 165-8235
製造零件編號:: STM32L476RGT6
製造商:: STMicroelectronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Family Name	STM32L4
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	64
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	1 MB
	Maximum Frequency	80MHz
	RAM Size	128 kB
	USB Channels	1 x OTG
	Number of PWM Units	2 x 16 bit
	Typical Operating Supply Voltage	3.6 (Maximum) V
	Pulse Width Modulation	2 x 16 bit
	Maximum Operating Temperature	+85 °C
	Program Memory Type	Flash
	Number of ADC Units	3
	Length	10mm
	ADCs	16 x 12 bit
	Height	1.45mm
	Maximum Number of Ethernet Channels	0
	Data Rate	5Mbps
	Width	10mm
	Instruction Set Architecture	RISC
	Minimum Operating Temperature	-40 °C
	Dimensions	10 x 10 x 1.45mm

	選取全部
	品牌 STMicroelectronics
	Family Name STM32L4
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 64
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 1 MB
	Maximum Frequency 80MHz
	RAM Size 128 kB
	USB Channels 1 x OTG
	Number of PWM Units 2 x 16 bit
	Typical Operating Supply Voltage 3.6 (Maximum) V
	Pulse Width Modulation 2 x 16 bit
	Maximum Operating Temperature +85 °C
	Program Memory Type Flash
	Number of ADC Units 3
	Length 10mm
	ADCs 16 x 12 bit
	Height 1.45mm
	Maximum Number of Ethernet Channels 0
	Data Rate 5Mbps
	Width 10mm
	Instruction Set Architecture RISC
	Minimum Operating Temperature -40 °C
	Dimensions 10 x 10 x 1.45mm

登入下載 CAD 模型

COO (Country of Origin):: CN

STM32L4 Series Microcontrollers, STMicroelectronics

The STM32L476/STM32L486 devices extend the ultra-low-power portfolio and performance with an ARM® Cortex®-M4 core with DSP and Floating-Point Unit (FPU) at 80MHz. This series offers USB OTG 2.0 full speed, a Liquid Crystal Display (LCD) driver in addition to the significant set of peripherals.

Advanced Encryption Standard (AES) 128-/256-bit hardware encryption is available on STM32L486 devices.

Ultra-low-power with FlexPowerControl

ARM® 32-bit Cortex®-M4 Core CPU with FPU, Adaptive real-time accelerator (ART Accelerator™)

Different clock sources with prescaler, safe clock switching and clock management

Real Time Clock (RTC) with Hardware calendar, alarms and calibration

LCD controller 8x40 or 4x44 with step-up converter

Up to 24 capacitive sensing channels

16 timers

Up to 114 fast Inputs/Outputs, most 5V-tolerant

Up to 1MB Flash memory

Four digital filters for sigma Delta modulator

Rich analogue peripherals, ADC, DAC, Op Amp, Comparators

Communication interfaces, USB OTG 2.0, SAI, I²C, USART, SPI, CAN, SWPMI

14-channel DMA controller

True random number generator

CRC calculation unit, 96-bit unique ID

Serial Wire Debug (SWD), JTAG, Embedded Trace Macrocell™ development support

STM32L4 Series 32-Bit ARM® Cortex®-M4 Microcontrollers, STMicroelectronics

The STM32L4 series of ultra-low-power microcontrollers deliver 100DMIPS based on its ARM® Cortex®-M4 core with Floating Point Unit (FPU) and ST ART Accelerator™ at 80MHz.

STM32L4 microcontrollers offer dynamic voltage scaling to balance power consumption with processing demand, low-power peripherals available in Stop mode, safety and security features.

Up to 1MB Flash Memory

LCD 8x40 or 4x44 with step-up converter

USB OTG 2.0 full-speed
