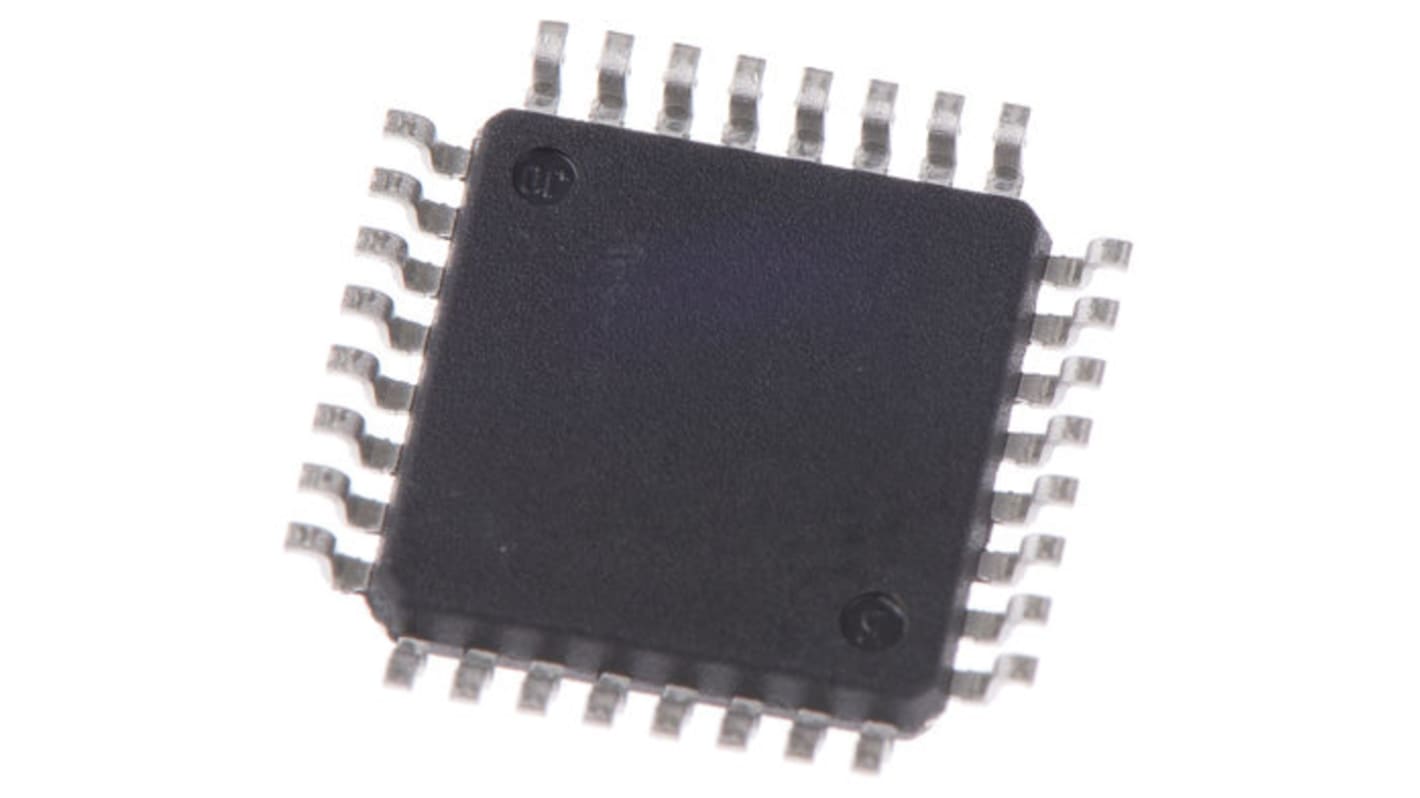

Name: STMicroelectronics, 32bit ARM Cortex M0+, STM32L0 Microcontroller, 32MHz, 32 kB Flash, 32-Pin LQFP
Brand: STMicroelectronics
SKU: 166-0921
Price: 23.40 HKD
Availability: InStock

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Family Name	STM32L0
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	32
	Device Core	ARM Cortex M0+
	Data Bus Width	32bit
	Program Memory Size	32 kB
	Maximum Frequency	32MHz
	RAM Size	8 kB
	USB Channels	0
	Typical Operating Supply Voltage	1.65 → 3.6 V
	Program Memory Type	Flash
	Number of ADC Units	1
	Length	7.2mm
	ADCs	10 x 12 bit
	Maximum Operating Temperature	+105 °C
	Maximum Number of Ethernet Channels	0
	Data Rate	1Mbps
	Width	7.2mm
	Instruction Set Architecture	RISC
	Dimensions	7.2 x 7.2 x 1.45mm
	Minimum Operating Temperature	-40 °C
	Height	1.45mm

	選取全部
	品牌 STMicroelectronics
	Family Name STM32L0
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 32
	Device Core ARM Cortex M0+
	Data Bus Width 32bit
	Program Memory Size 32 kB
	Maximum Frequency 32MHz
	RAM Size 8 kB
	USB Channels 0
	Typical Operating Supply Voltage 1.65 → 3.6 V
	Program Memory Type Flash
	Number of ADC Units 1
	Length 7.2mm
	ADCs 10 x 12 bit
	Maximum Operating Temperature +105 °C
	Maximum Number of Ethernet Channels 0
	Data Rate 1Mbps
	Width 7.2mm
	Instruction Set Architecture RISC
	Dimensions 7.2 x 7.2 x 1.45mm
	Minimum Operating Temperature -40 °C
	Height 1.45mm

STM32L0 Series Microcontrollers, STMicroelectronics

The STM32L0 series are ultra-low-power microcontrollers combined with an ARM Cortex-M0+ 32-bit RISC core. They are best fit for applications operating on battery or supplied by energy harvesting. New autonomous peripherals reduce the load with fewer CPU wake-up interrupts.

The STM32L0 series offers dynamic voltage scaling, an ultra-low-power Clock Oscillator, LCD interface, Comparator, DAC and hardware encryption.

STM32L0 Series 32-Bit ARM® Cortex®-M0+ Microcontrollers, STMicroelectronics

The STM32 L0 Series of the 32-bit Flash Microcontrollers (MCUs) is based on the ARM Cortex™-M0+ core; a core specifically developed for embedded applications. STMicroelectronics’s STM32 ARM Cortex™ M processor benefits from the Cortex-M0+ architectural enhancements including digital signal processing, real-time performance, low voltage and ultra low power. ST’s ARM® STM32 L0 ultra-low power series delivers a 32-bit performance and is Ideal for small projects or platform decisions with its easy to use functionality.
